SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICAL FIG.48 STARTING MOTOR FIG.49 GENERATOR FIG.50 BATTERY FIG.51 SPEEDOMETER FIG.52 HEADLAMP FIG.53 REAR LAMP AND ROOM LAMP FIG.54 WIRING HARNESS FIG.55 ELECTRICAL CONTROL FIG.56 LOCK SET FIG.57 FRONT WINDOW WIPER FIG.58 WINDOW WASHER FIG.59 REAR WINDOW WIPER FIG.60 RADIO

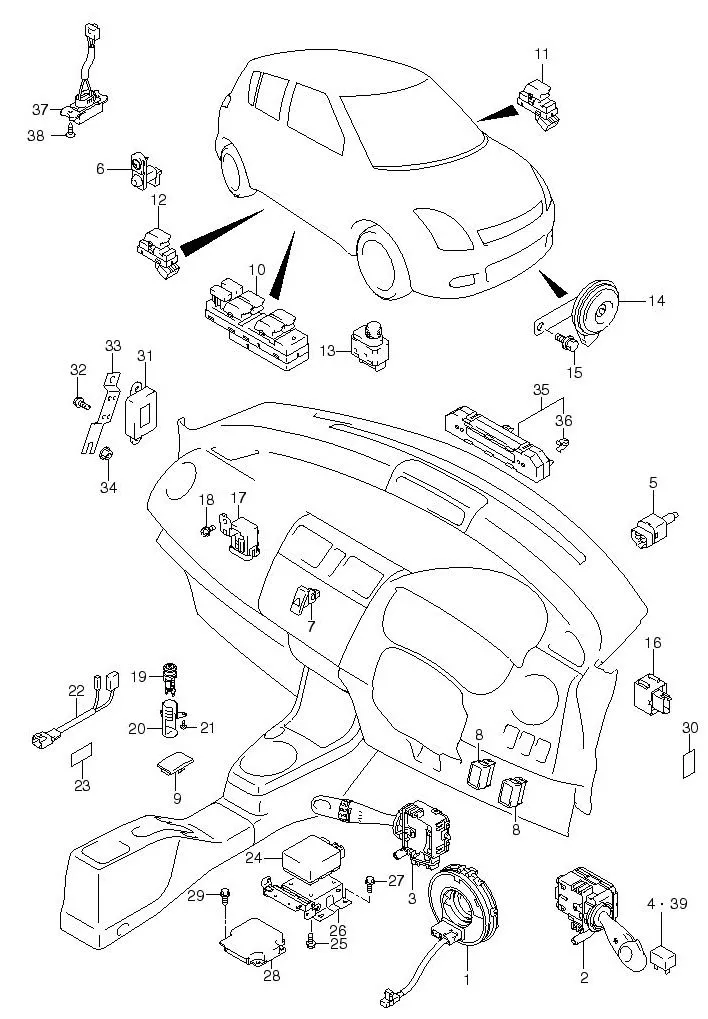

FIG.55 ELECTRICAL CONTROL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37485M55K00-000	CABLE ASSY, CONTACT COIL	1	Rp218.000
2	37210-73HB1-000 SUB: 37210-58J00-000	SWITCH ASSY, LIGHTING & TURN SIGNAL	1	Rp286.000
3	37310-62J21-000 SUB: 37310-62J20-000	SWITCH ASSY, WIPER & WASHER	1	Rp1.847.000
4	38860-76F01-000 SUB: 38860B76F01N000	RELAY, REAR WIPER	1	Rp47.000
5	37740-61J10-000 SUB: 37740-75H21-000	SWITCH ASSY, STOP LAMP	1	Rp59.000
6	37670-58J10-000 SUB: 37670B58J10N000	SWITCH ASSY, DOOR	4	Rp139.500
7	37430-62J00-P4Z	SWITCH ASSY, HAZARD WARNING (GRAY)	1	Rp335.000
8	37285-62J00-000	CAP, OPTION SWITCH HOLE	0	Rp45.000
9	37285-62J10-000	CAP, OPTION SWITCH HOLE	2	Rp41.500
10	37990-62J20-000	SWITCH ASSY, POWER WINDOW MAIN	1	Rp1.329.000
11	37995-62J00-000	SWITCH ASSY, POWER WINDOW SUB	1	Rp247.500
12	37995-62J00-000	SWITCH ASSY, POWER WINDOW REAR	2	Rp247.500
13	37950-62J01-000 SUB: 37950-62J00-000	SWITCH ASSY, MIRROR	1	Rp319.000
14	38500-63J01-000 SUB: 38500-63J00-000	HORN ASSY	1	Rp495.000
15	09115-08001-000	BOLT (8X18)	1	Rp21.500
16	38610-84F00-000	RELAY, TURN & 4WAY	1	Rp613.000
17	DISCONTINUE SUB: 37190-62J21-000	RECEIVER ASSY, DOOR LOCK & KEYLESS	1	-
18	02162-0612A-000	BOLT	1	Rp11.000
19	DISCONTINUE SUB: 39400-59J10-000	LIGHTER ASSY, CIGARETTE	1	-
20	DISCONTINUE SUB: 39430-63J00-000	COVER, CIGAR LIGHTER	1	-
21	03541-0516A-000 SUB: 03541B0516AN000	SCREW	1	Rp3.500
22	DISCONTINUE SUB: 39460-63J00-000	HARNESS ASSY, SOCKET	1	-
23	DISCONTINUE SUB: 36930-60G10-000	COVER, HARNESS	1	-
24	38720-63J10-000	CONTROLLER ASSY, POWER STEERING	1	Rp7.202.000
25	02162-0508A-000 SUB: 02162B0508AN000	SCREW	4	Rp3.500
26	DISCONTINUE SUB: 38721B63J10N000	BRACKET, POWER STEERING	1	-
27	09115-06005-000	BOLT (6X16)	4	Rp14.000
28	38720-73K11-000 SUB: 38720B73K10N000	CONTROLLER ASSY, POWER STEERING	1	Rp8.713.500
29	DISCONTINUE SUB: 09129-06006-000	BOLT (6X18)	3	-
30	DISCONTINUE SUB: 84761-50X50-000	FILM, SIDE SILL INNER	2	-
31	38880-63J90-000	CONTROLLER ASSY, AT	1	Rp12.654.500	AT
32	02162-0610A-000	BOLT	2	Rp5.000	AT
33	DISCONTINUE SUB: 38881-63J00-000	BRACKET, AT CONTROLLER	1	-	AT
34	08316-1008A-000 SUB: 08316B1008AN000	NUT	2	Rp3.500	AT
35	34600-63J10-000	CLOCK ASSY	1	Rp1.194.500
36	09409-08326-000 SUB: 09409B08326N000	CLIP	3	Rp8.000
37	37178-62J00-000	SWITCH ASSY, BACK DOOR	1	Rp489.000
38	DISCONTINUE SUB: 09132-04035-000	SCREW	2	-
39	38860-76F01-000 SUB: 38860B76F01N000	RELAY, AT	1	Rp47.000	AT
