SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATORFIG.50 BATTERYFIG.51 SPEEDOMETERFIG.52 HEADLAMPFIG.53 REAR LAMP AND ROOM LAMPFIG.54 WIRING HARNESSFIG.55 ELECTRICAL CONTROLFIG.56 LOCK SETFIG.57 FRONT WINDOW WIPERFIG.58 WINDOW WASHERFIG.59 REAR WINDOW WIPERFIG.60 RADIO

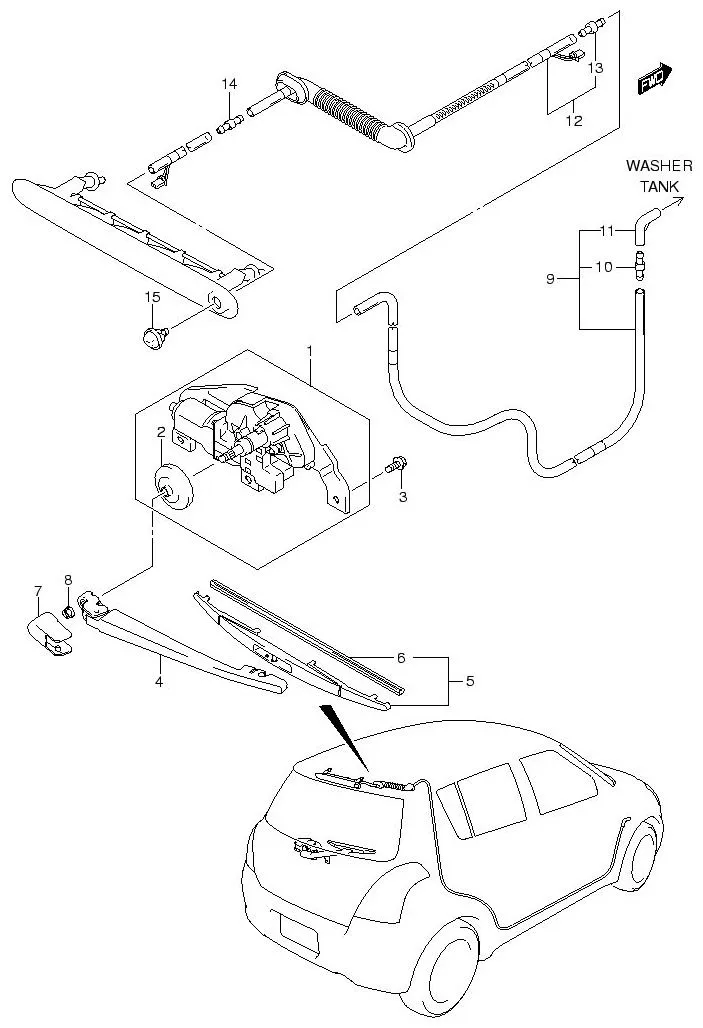

FIG.59 REAR WINDOW WIPER

FIG.59 REAR WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 38810-63J00-000		 WIPER ASSY, REAR WINDOW 1 -
2 38274-54G00-000
SUB: 38274B54G00N000		 CAP, REAR WIPER PIVOT 1 Rp10.500
3 09115-06005-000 BOLT (6X16) 2 Rp14.000
4 38821-63J00-000 ARM ASSY, REAR WIPER 1 Rp353.000
5 38340-63J00-000 BLADE ASSY, REAR WIPER 1 Rp173.500
6 38346-63J00-000 BLADE 1 Rp104.500
7 38315-54G00-000 COVER, ARM HEAD 1 Rp48.500
8 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
9 DISCONTINUE
SUB: 38834-63J10-000		 HOSE ASSY, REAR WASHER FLOOR 1 -
10 38496-56B00-000 CONNECTOR 1 Rp33.500
11 38496-67H00-000 JOINT, ELBOW 1 Rp33.500
12 DISCONTINUE
SUB: 38834-63J00-000		 HOSE, REAR WASHER BACK DOOR 1 -
13 38496-56B00-000 CONNECTOR 1 Rp33.500
14 38833M79500-000
SUB: 38496-61A00-000		 CONNECTOR 1 Rp8.000
15 38840-63J00-000
SUB: 38840B63J00N000		 NOZZLE ASSY, REAR WASHER 1 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
