Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

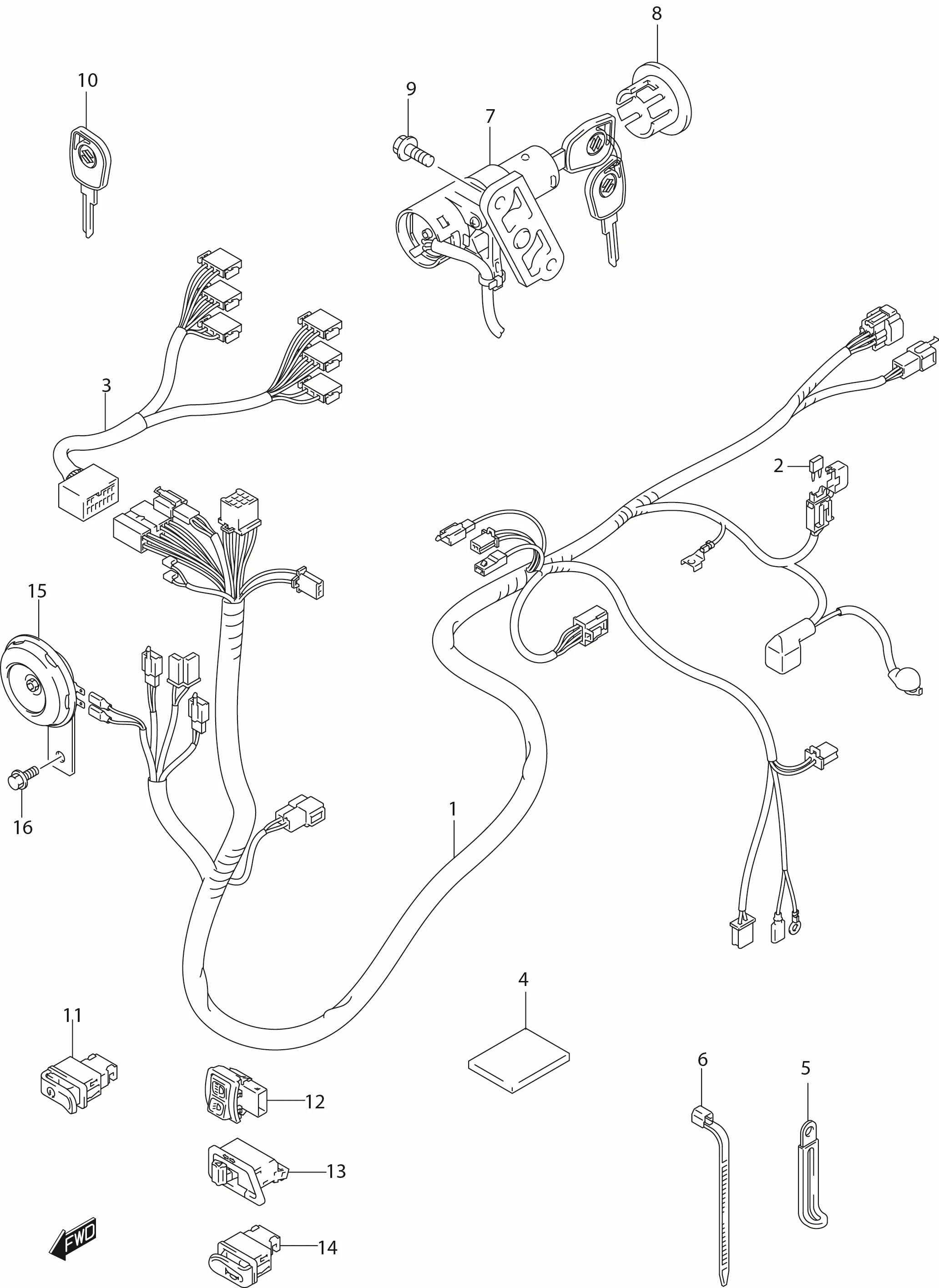

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36610-46G22-000 SUB: 36610B46G20N000	HARNESS, WIRING	1	Rp303.500
2	09481-10101-000 SUB: 09481B10101N000	?FUSE (10A)	2	Rp4.000
3	36620-46G00-000 SUB: 36620B46G00N000	HARNESS ASSY, CONTROL	1	Rp49.000
4	DISCONTINUE SUB: 36652B46G00N000	CUSHION, HARNESS WIRING	1	-
5	DISCONTINUE SUB: 09404-06433-000	CLAMP (L:80)	2	-
6-1	09407B11401N000	CLAMP (L:95)	2	-
6-2	36990-25G00-000 SUB: 09407-14403-000	CLAMP (L:125)	4	Rp13.000
6-3	09407-18402-000 SUB: 09407B18402N000	CLAMP (L:165)	3	Rp8.000
6-4	DISCONTINUE SUB: 09407B25401N000	CLAMP (L:235)	3	-
7	37100B09G10N000	LOCK ASSY, STEERING	1	-
8	37155-31C20-000 SUB: 37155B31C20N000	CAP, STEERING LOK	1	Rp13.000
9	01550B06163N000	BOLT, STEERING LOCK	2	-
10	37146B09G50N000	KEY, BLANK	1	-	OPT
11	37310-09G51-000 SUB: 37310B09G40N000	SWITCH ASSY, STARTER	1	Rp21.500
12	37420-10E10-000 SUB: 37420B10E00N000	SWITCH ASSY, DIMMER	1	Rp19.500
13	37510-10E00-000 SUB: 37510B10E00N000	SWITCH ASSY, TURNSIGNAL	1	Rp24.500
14	37520-09G51-000 SUB: 37520B09G30N000	SWITCH ASSY, HORN	1	Rp20.000
15	38500-09G01-000 SUB: 38500B09G01N000	HORN ASSY	1	Rp52.500
16	DISCONTINUE SUB: 01550B06123N000	BOLT, HORN	1	-
