SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 BATTERYFIG.22 ELECTRICALFIG.23 SPEEDOMETERFIG.24 HEADLAMPFIG.25 FRONT TURNSIGNALFIG.26 REAR COMBINATIONFIG.27 WIRING HARNESS

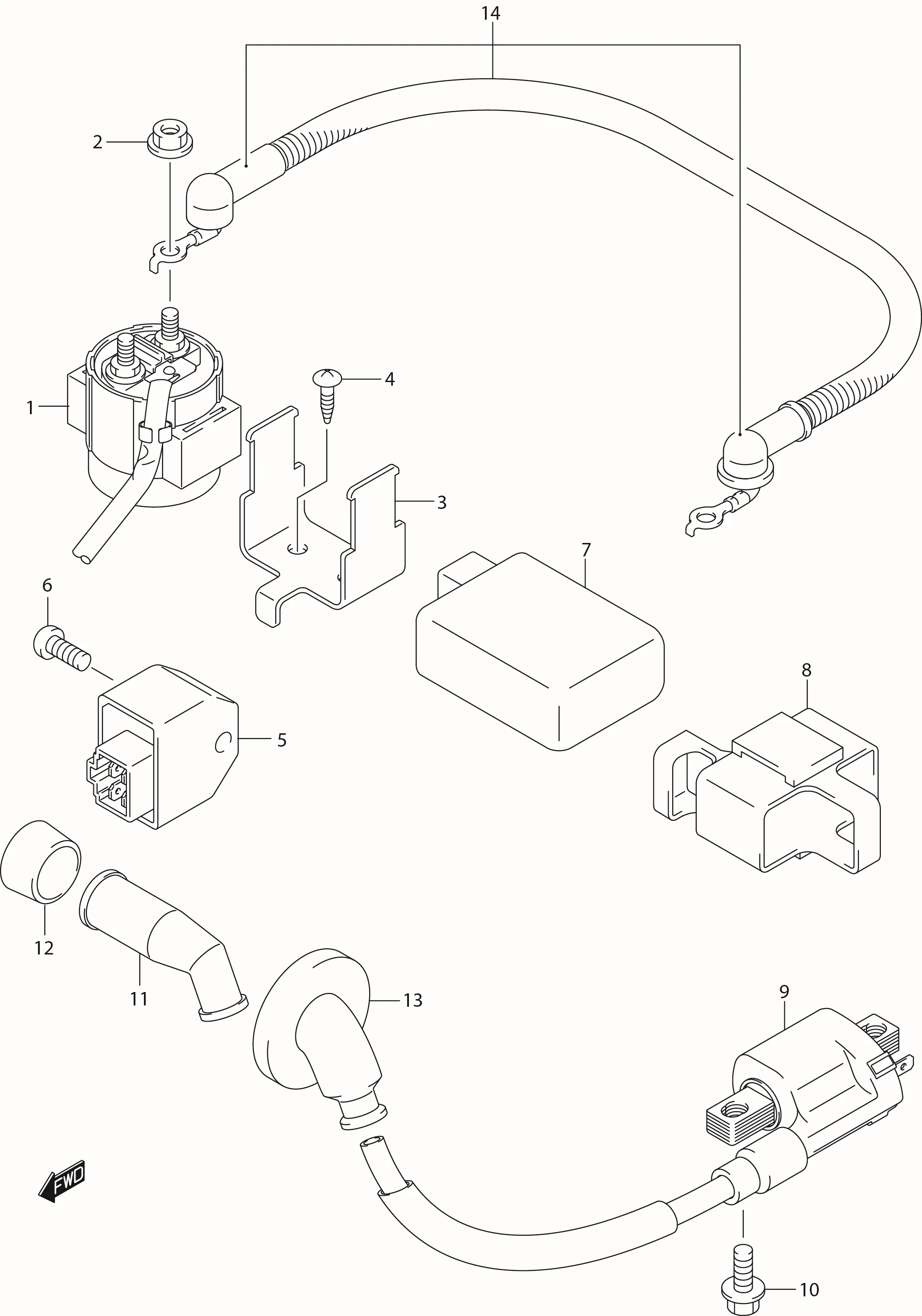

FIG.22 ELECTRICAL

FIG.22 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-31C00-000
SUB: 31800-31C00L000		 RELAY ASSY, STARTING MOTOR 1 Rp77.000
2 DISCONTINUE
SUB: 08361-35066-000		 NUT, STG MOT RELAY TERMINAL 2 -
3 31805-46G00-000 BRACKET, STARTING MOTOR 1 Rp13.000
4 03541-0516A-000
SUB: 03541B05163N000		 SCREW 1 Rp3.500
5 32800-45H01-000
SUB: 32800-47E00-000		 RECTIFIER ASSY 1 Rp127.000
6 02112-0612A-000
SUB: 02112B06123N000		 SCREW, RECTIFIER 1 Rp3.500
7 DISCONTINUE
SUB: 32900B46G00N000		 CDI UNIT 1 -
8 32980-20G00-000 CUSHION, CDI UNIT 1 Rp43.000
9 33410-46G00-000
SUB: 33410B46G00N000		 COIL ASSY, IGNITION 1 Rp72.000
10 01547-0616A-000
SUB: 01547B06163N000		 BOLT, IGNITION COIL 2 Rp6.500
11 33500-41H00-000
SUB: 33510-20E00-000		 CAP ASSY, SPARK PLUG 1 Rp47.000
12 33541-47D00-000 SEAL, SPARK PLUG 1 Rp38.500
13 33542-33G00-000
SUB: 33542-46G00-000		 SEAL, HIGH TENSION CORD 1 Rp45.500
14 33810-46G00-000 WIRE, STARTER MOTOR 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
