SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 BATTERYFIG.22 ELECTRICALFIG.23 SPEEDOMETERFIG.24 HEADLAMPFIG.25 FRONT TURNSIGNALFIG.26 REAR COMBINATIONFIG.27 WIRING HARNESS

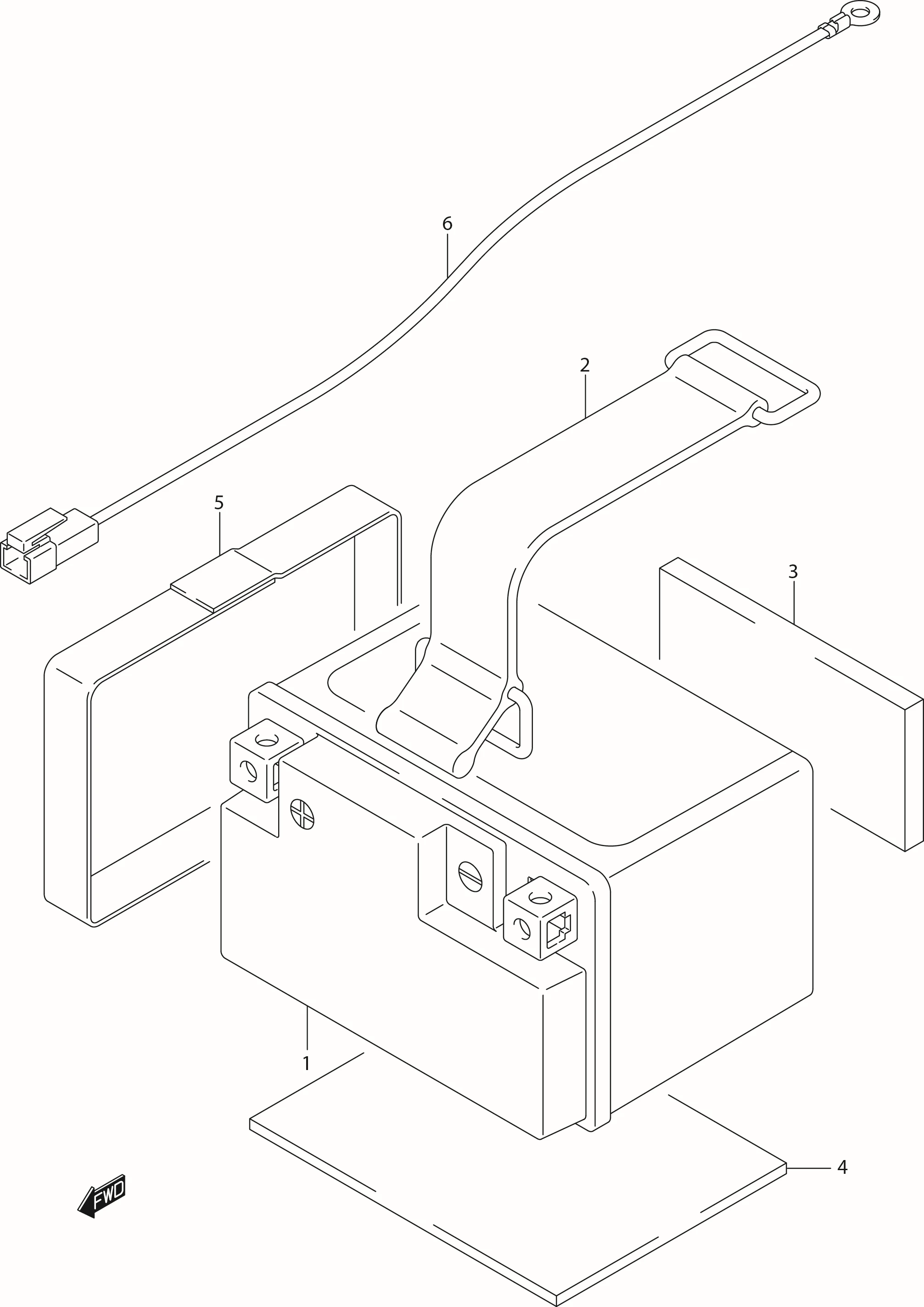

FIG.21 BATTERY

FIG.21 BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 33610-20GG0-000
SUB: 33610B20GA0N000		 BATTERY ASSY (FTZ5S,12V3.5AH) 1 Rp413.000
2 33651-46G00-000
SUB: 33651B46G00N000		 BAND, BATTERY 1 Rp18.000
3 DISCONTINUE
SUB: 33652B46G00N000		 PROTECTOR, BATTERY 1 - 40X80X12
4 33652-46G10-000
SUB: 33652B46G10N000		 PROTECTOR, BATTERY 1 Rp3.000 75X100X3
5 DISCONTINUE
SUB: 33653B46G00N000		 BAND, BATTERY PULL 1 -
6 33860-46G00-000 WIRE, BATTERY MINUS 1 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
