SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 BATTERYFIG.22 ELECTRICALFIG.23 SPEEDOMETERFIG.24 HEADLAMPFIG.25 FRONT TURNSIGNALFIG.26 REAR COMBINATIONFIG.27 WIRING HARNESS

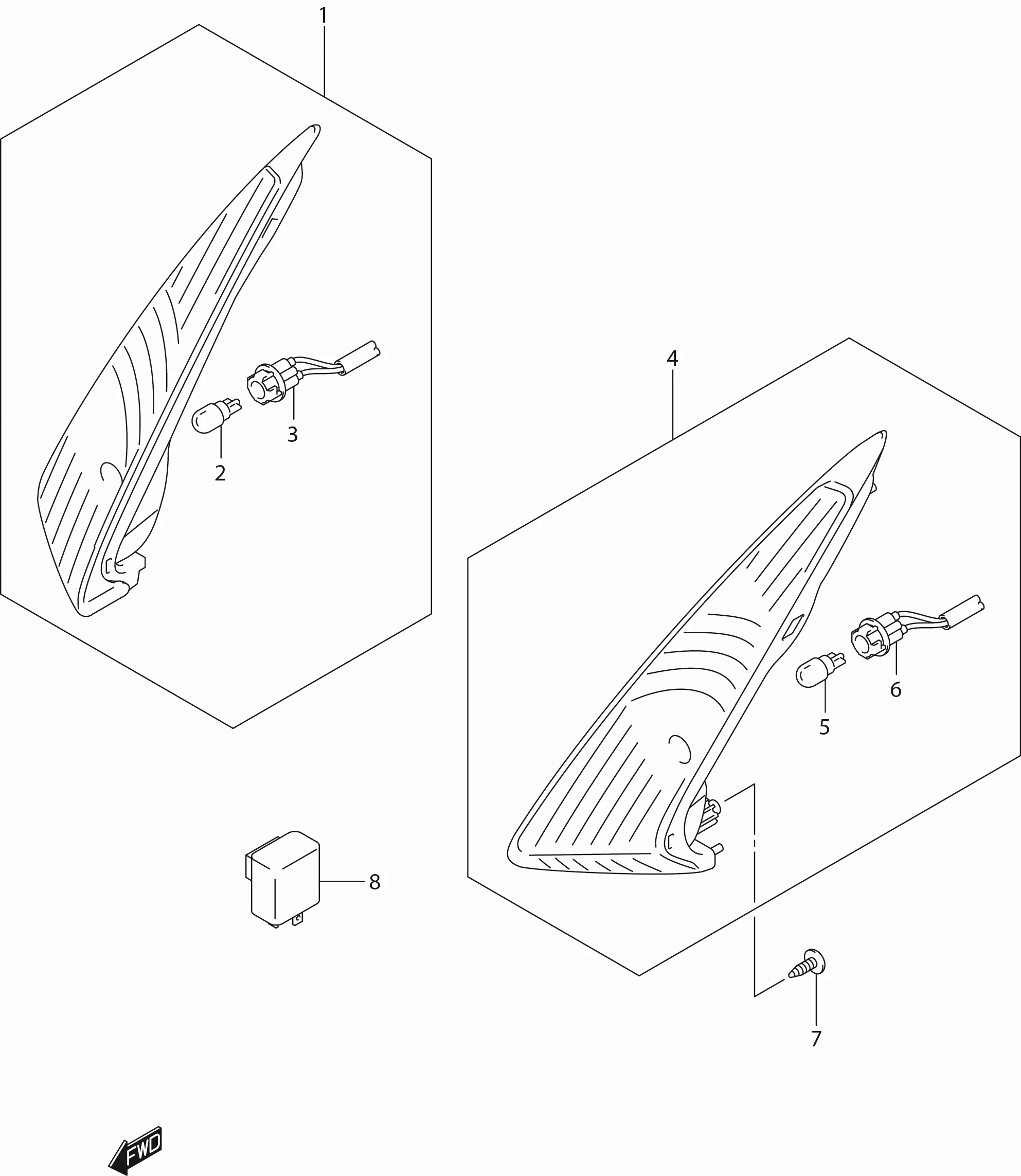

FIG.25 FRONT TURNSIGNAL

FIG.25 FRONT TURNSIGNAL
No No. Part Description Qty Price Per Pcs Remarks
1 35601-46G10-000
SUB: 35601B46G10N000		 LAMP ASSY, FRONT TURNSIGNAL, R 1 Rp83.500
2 09471-12114AS01
SUB: 09471B12203N000		 ?BULB (12V10W,T13) 1 Rp14.000
3 35618B46G10N000 ?CORD ASSY, R 1 -
4 35602-46G10-000
SUB: 35602B46G10N000		 LAMP ASSY, FRONT TURNSIGNAL, L 1 Rp83.500
5 09471-12114AS01
SUB: 09471B12203N000		 ?BULB (12V10W,T13) 1 Rp14.000
6 35638-46G10-000 ?CORD ASSY, L 1 -
7 03541-0516A-000
SUB: 03541B05163N000		 SCREW, FR TURNSIGNAL LAMP 4 Rp3.500
8 38610-35491-000
SUB: 38610B35491N000		 RELAY ASSY, TURNSIGNAL 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
