SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.19 STARTING MOTOR FIG.20 MAGNETO FIG.21 BATTERY FIG.22 ELECTRICAL FIG.23 SPEEDOMETER FIG.24 HEADLAMP FIG.25 FRONT TURNSIGNAL FIG.26 REAR COMBINATION FIG.27 WIRING HARNESS

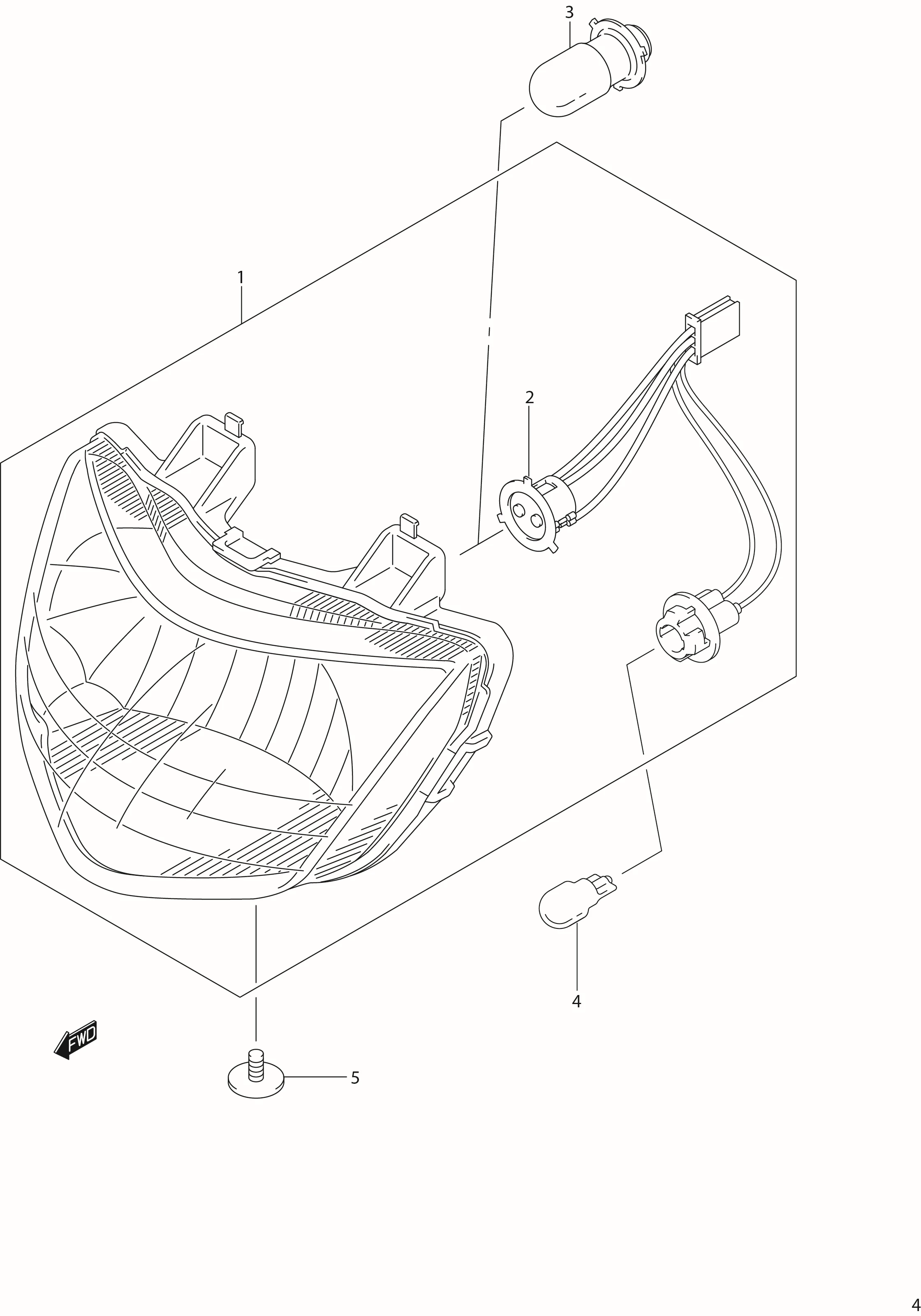

FIG.24 HEADLAMP

FIG.24 HEADLAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	35100-46G10-000	HEADLAMP ASSY	1	Rp192.500	UY125-S
1-2	35100-46G30-000	HEADLAMP ASSY	1	Rp192.500	UY125-SL
2	35171-46G30-000	?CORD ASSY	1	-
3	09471-12171-000	BULB (12V30/30W)	1	Rp65.500
4	09471-12028-000	BULB (12V3.4W)	1	Rp8.000
5	DISCONTINUE SUB: 09139-05051-000	SCREW, HEADLAMP	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
