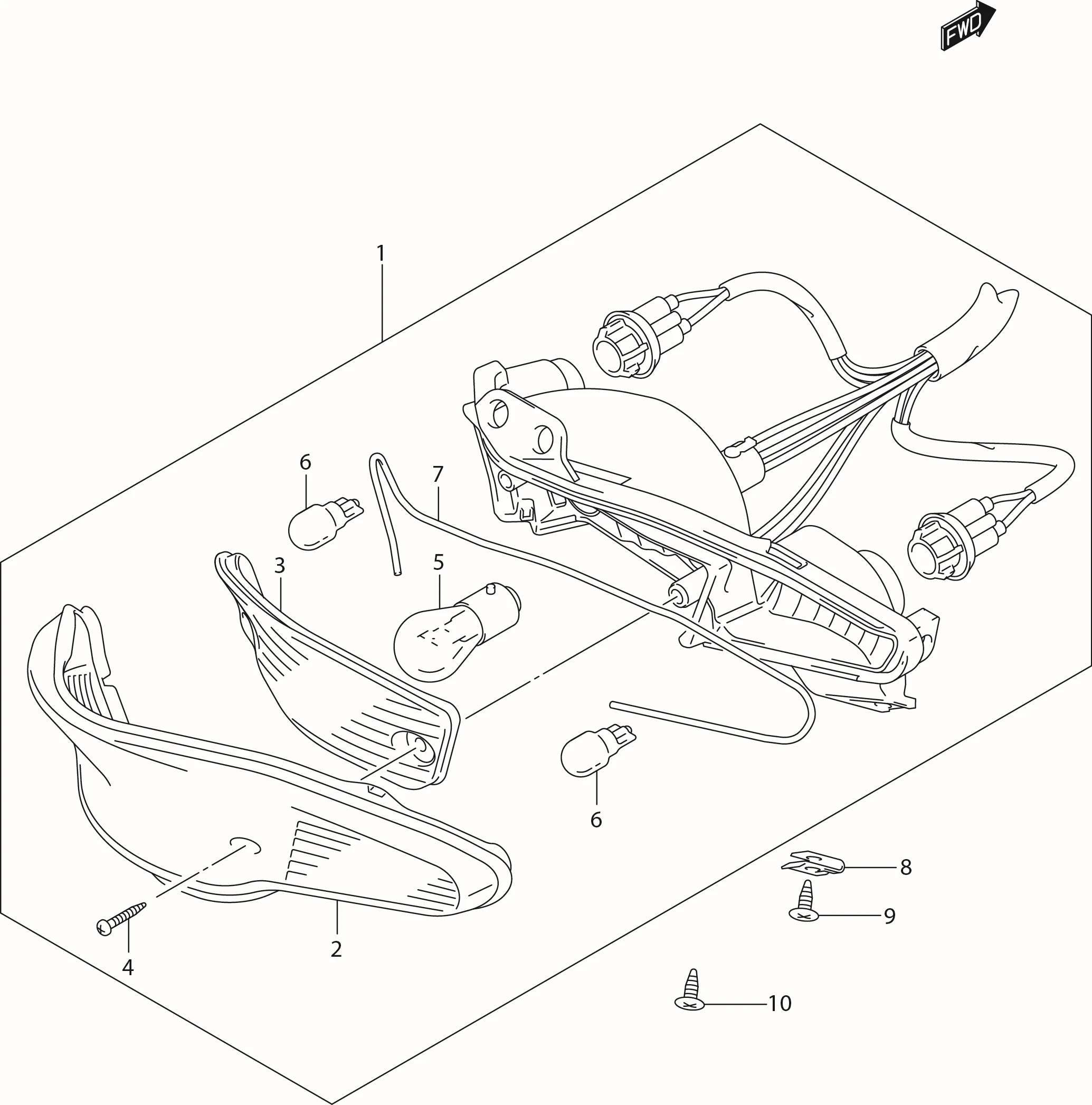

FIG.26 REAR COMBINATION

FIG.26 REAR COMBINATION
No No. Part Description Qty Price Per Pcs Remarks
1-1 35710-46G00-000 LAMP ASSY, REAR COMB 1 Rp171.500 UY125-S
1-2 35710-46G10-000 LAMP ASSY, REAR COMB 1 Rp171.500 UY125-SL
2 35712-46G10-001
SUB: 35712-46G10-000		 ?LENS 1 Rp43.500
3 35912-46G00-000 ?INNER LENS 1 Rp25.500
4 35627-49030-000 ?SCREW (4X18) 2 Rp7.000
5 09471-12127-000
SUB: 09471B12119N000		 ?BULB (12V18/5W) 1 Rp12.500
6 09471-12114AS01
SUB: 09471B12203N000		 ?BULB (12V10W) 2 Rp14.000
7 DISCONTINUE
SUB: 35713-46G00-000		 ?GASKET 1 - L:342
8 09148-05038-000 NUT, REAR COMB 2 Rp4.000
9 03541-0512B-000 SCREW, REAR COMB LAMP 2 Rp4.000
10 03541-0516B-000 SCREW, REAR COMB UNDER 2 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
