SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 BATTERYFIG.22 ELECTRICALFIG.23 SPEEDOMETERFIG.24 HEADLAMPFIG.25 FRONT TURNSIGNALFIG.26 REAR COMBINATIONFIG.27 WIRING HARNESS

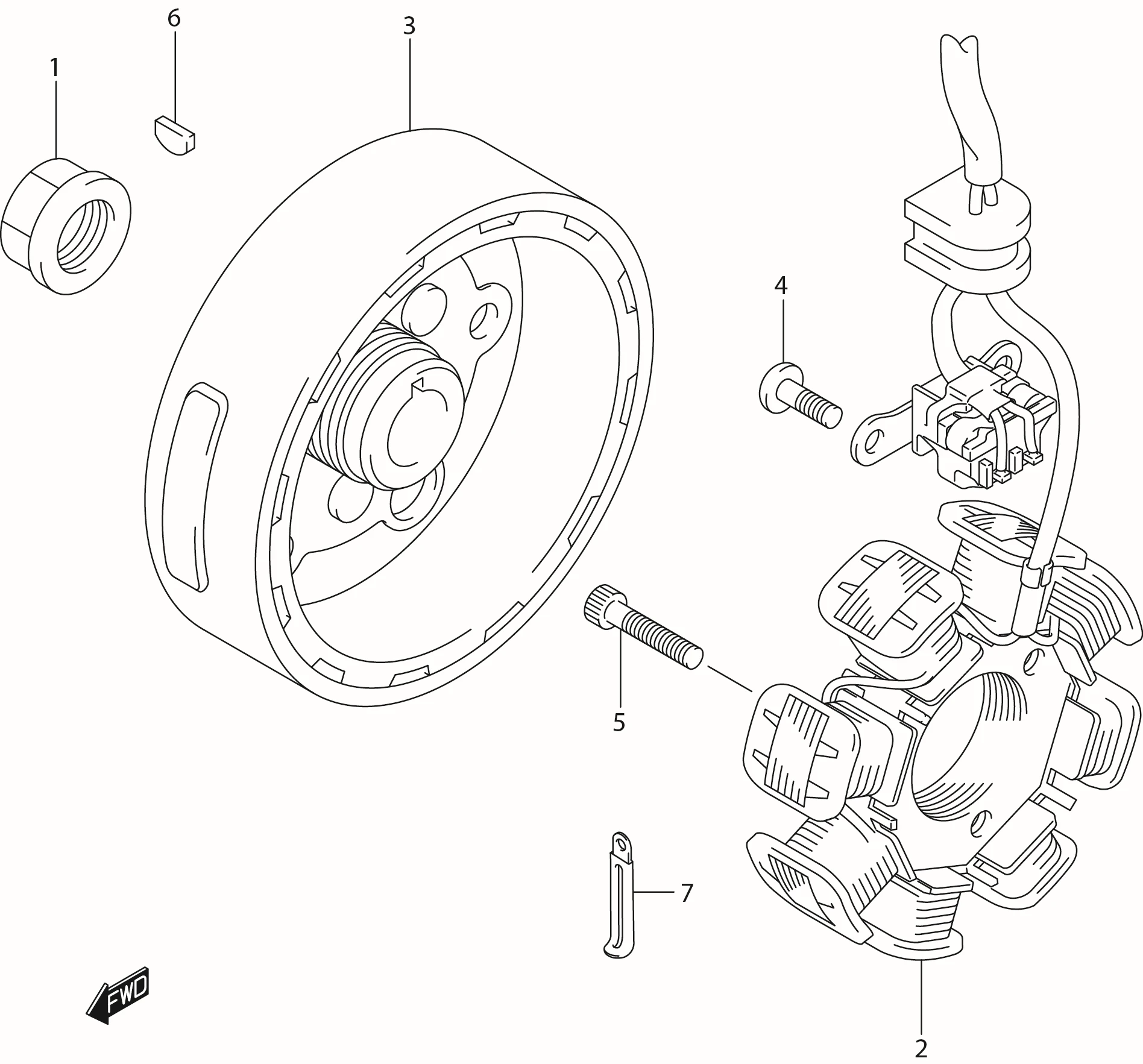

FIG.20 MAGNETO

FIG.20 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 31792-33G10-000 NUT, MAGNETO ROTOR 1 Rp27.000
2 32101-46G00-000
SUB: 32101B46G00N000		 STATOR ASSY 1 Rp236.500
3 32102-46G10-000
SUB: 32102B46G00N000		 ROTOR ASSY 1 Rp239.500
4 02142-0510A-000
SUB: 02142B0510BN000		 SCREW, SENSOR 2 Rp4.000
5 07130-0520A-000
SUB: 07130-0520B-000		 BOLT, MAGNETO STATOR 3 Rp5.500
6 08341-31039-000 KEY, MAGNETO 1 Rp9.500
7 09404-06429-000
SUB: 09404B06429N000		 CLAMP 1 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
