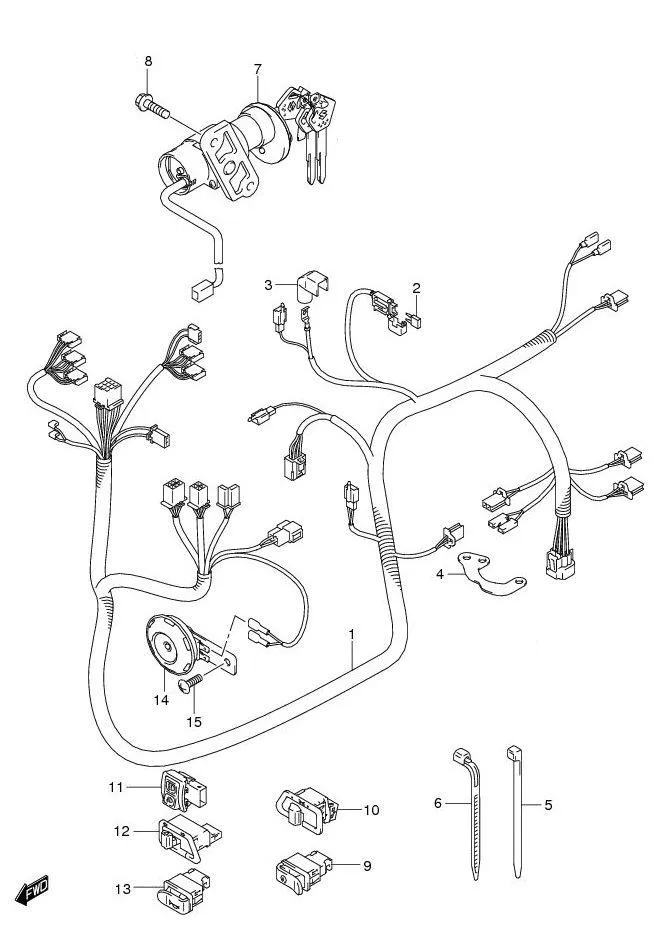

FIG.27 WIRING HARNESS

FIG.27 WIRING HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36610-41H11-000 SUB: 36610B41H10N000	HARNESS, WIRING	1	Rp335.000
2	09481-10501-000 SUB: 09481M10501-000	•FUSE (10A)	2	Rp12.000
3	33624-20H00-000 SUB: 33624B20H00N000	•CAP, BATTERY PLUS	1	Rp10.500
4	36672-41H00-000 SUB: 36672B41H00N000	BRACKET, LEAD WIRE	1	Rp7.500
5-1	09407-14407-000	CLAMP (L:145)	4	Rp18.500
5-2	DISCONTINUE SUB: 09407M19401-000	CLAMP (L:190)	1	-
6-1	36990-25G00-000 SUB: 09407-14403L000	CLAMP (L:125)	2	Rp13.000
6-2	09407-18402-000 SUB: 09407B18402N000	CLAMP (L:165)	7	Rp8.000
6-3	DISCONTINUE SUB: 09407-25401L000	CLAMP (L:235)	5	-
7	37100-46G40-000 SUB: 37100B46G40N000	LOCK ASSY, STEERING	1	Rp180.500
8	01560-0620A-000 SUB: 01560B0620AN000	BOLT, STEERING LOCK	2	Rp2.500
9	37310-09G30-000 SUB: 37310B09G30N000	SWITCH ASSY, STARTER	1	Rp27.500
10	37340-10E40-000 SUB: 37340B10E30N000	SWITCH ASSY, LIGHTING	1	Rp46.000
11	37420-09G21-000 SUB: 37420B09G21N000	SWITCH ASSY, DIMMER	1	Rp20.500
12	37510-10E30-000 SUB: 37510B10E10N000	SWITCH ASSY, TURNSIGNAL	1	Rp24.000
13	37520-09G51-000 SUB: 37520B09G30N000	SWITCH ASSY, HORN	1	Rp20.000
14	38500-41H11-000 SUB: 38500-41H10-000	HORN ASSY	1	Rp77.000
15	02142-0612A-000 SUB: 02142B0612AN000	SCREW, HORN	1	Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
