SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 BATTERYFIG.22 ELECTRICALFIG.23 SPEEDOMETERFIG.24 FRONT COMBINATION LAMPFIG.25 REAR TURNSIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESS

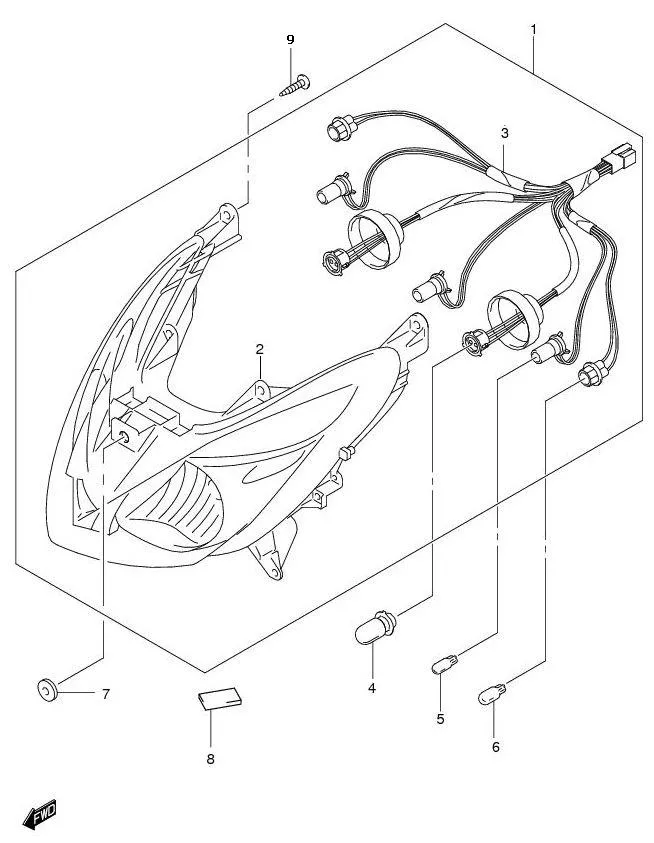

FIG.24 FRONT COMBINATION LAMP

FIG.24 FRONT COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100-41H20-000
SUB: 35100B41H20N000		 LAMP ASSY, FRONT COMB 1 Rp544.000
2 35171-41H20-000
SUB: 35171B41H20N000		 •CORD ASSY 1 Rp106.000
3 09471-12013-000
SUB: 09471-12013L000		 BULB (12V25/25W) 2 Rp15.000 STANLEY,A36003
4 09471-12028-000
SUB: 09471-12028L000		 BULB (12V3.4W) 3 Rp8.000
5 09471-12114AS01
SUB: 09471B12203N000		 BULB (12V10W) 2 Rp14.000 FOR AMBER
6 09320-08028-000
SUB: 09320B08028N000		 CUSHION, HEADLAMP 1 Rp11.500
7 56352-07H00-000
SUB: 56352B07H00N000		 CUSHION (15X25X15) 2 Rp3.000
8 03541-0516A-000
SUB: 03541B0516AN000		 SCREW, FR COMB 8 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
