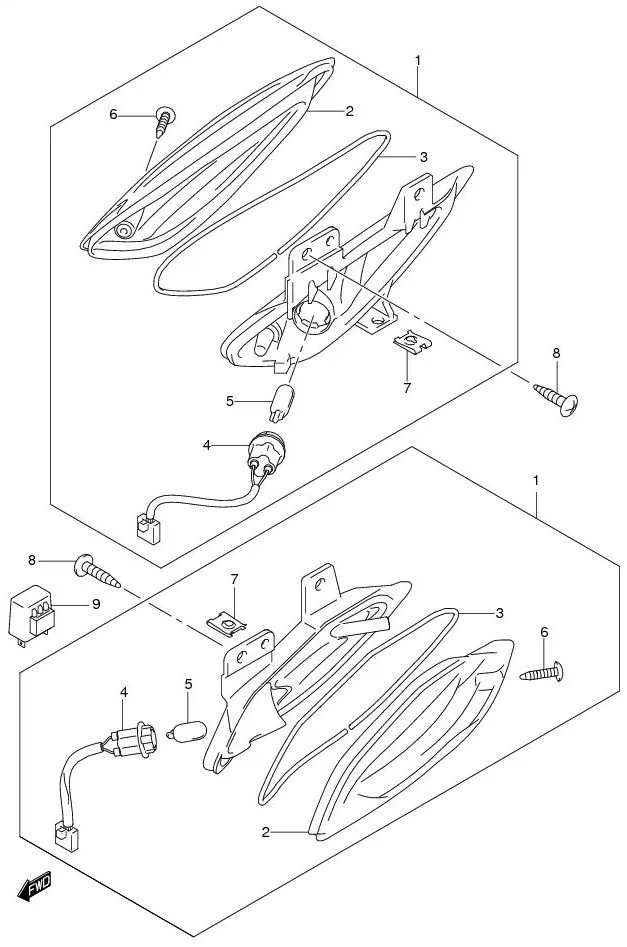

FIG.25 REAR TURNSIGNAL LAMP

FIG.25 REAR TURNSIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1-1 35603-41H40-000
SUB: 35603B41H20N000		 LAMP ASSY, RR TURNSIGNAL, R 1 Rp67.500
1-2 35604-41H40-000
SUB: 35604B41H20N000		 LAMP ASSY, RR TURNSIGNAL, L 1 Rp67.500
2-1 35652-41H20-000
SUB: 35652B41H20N000		 •LENS, R 1 Rp18.500
2-2 35672-41H20-000
SUB: 35672B41H20N000		 •LENS, L 1 Rp18.500
3 35653-41H20-000
SUB: 35653B41H20N000		 •GASKET 2 Rp4.500
4-1 35658-41H20-000
SUB: 35658B41H20N000		 •CORD ASSY, R 1 Rp14.500
4-2 35678-41H20-000
SUB: 35678B41H20N000		 •CORD ASSY, L 1 Rp14.500
5 09471-12114AS01
SUB: 09471B12203N000		 •BULB (12V10W) 2 Rp14.000
6 03211-0416A-000
SUB: 03211B0416AN000		 •SCREW 4 Rp4.500
7 09148-05047-000
SUB: 09148B05047N000		 NUT 2 Rp3.500
8 03541-0516A-000
SUB: 03541B0516AN000		 SCREW, RR TURNSIGNAL 6 Rp3.500
9-1 38610-35491-000
SUB: 38610B09410N000		 RELAY ASSY, TURNSIGNAL 1 Rp45.500
9-2 38610-35491-000
SUB: 38610-35491L000		 RELAY ASSY, TURNSIGNAL 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
