SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 BATTERYFIG.22 ELECTRICALFIG.23 SPEEDOMETERFIG.24 FRONT COMBINATION LAMPFIG.25 REAR TURNSIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESS

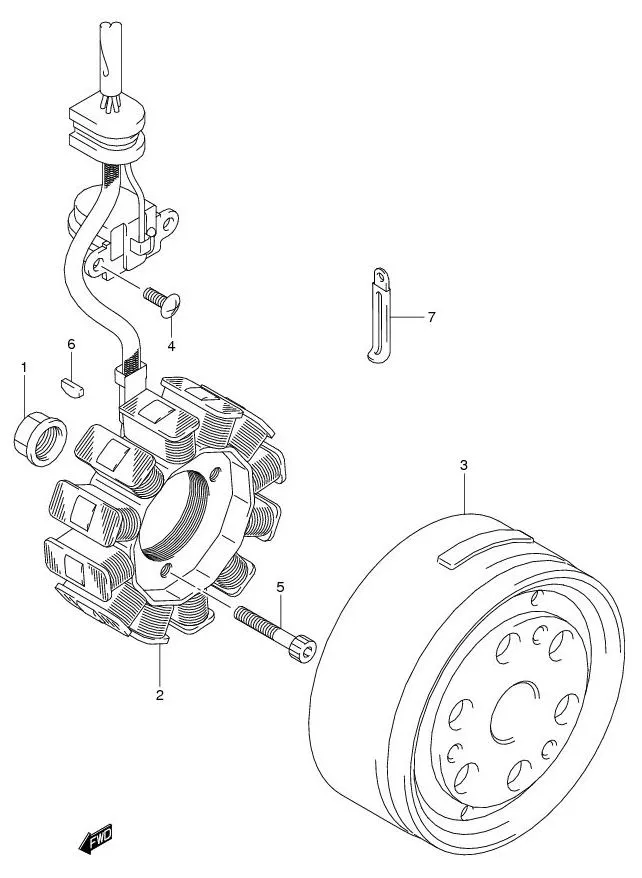

FIG.20 MAGNETO

FIG.20 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 31792-33G10-000 NUT, MAGNETO ROTOR 1 Rp27.000
2 32101-41H10-000
SUB: 32101B41H10N000		 STATOR ASSY 1 Rp236.500
3 32102-41H11-000
SUB: 32102B41H11N000		 ROTOR ASSY 1 Rp250.000
4 02142-0510A-000
SUB: 02142B0510BN000		 SCREW, SENSOR 2 Rp4.000
5 07130-0520A-000
SUB: 07130B0520BN000		 BOLT, MAGNETO STATOR 3 Rp5.500
6 08341-31039-000
SUB: 08341B31039N000		 KEY, MAGNETO 1 Rp9.500
7 09404-06429-000
SUB: 09404B06429N000		 CLAMP (L:45) 1 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
