SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 BATTERYFIG.22 ELECTRICALFIG.23 SPEEDOMETERFIG.24 FRONT COMBINATION LAMPFIG.25 REAR TURNSIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESS

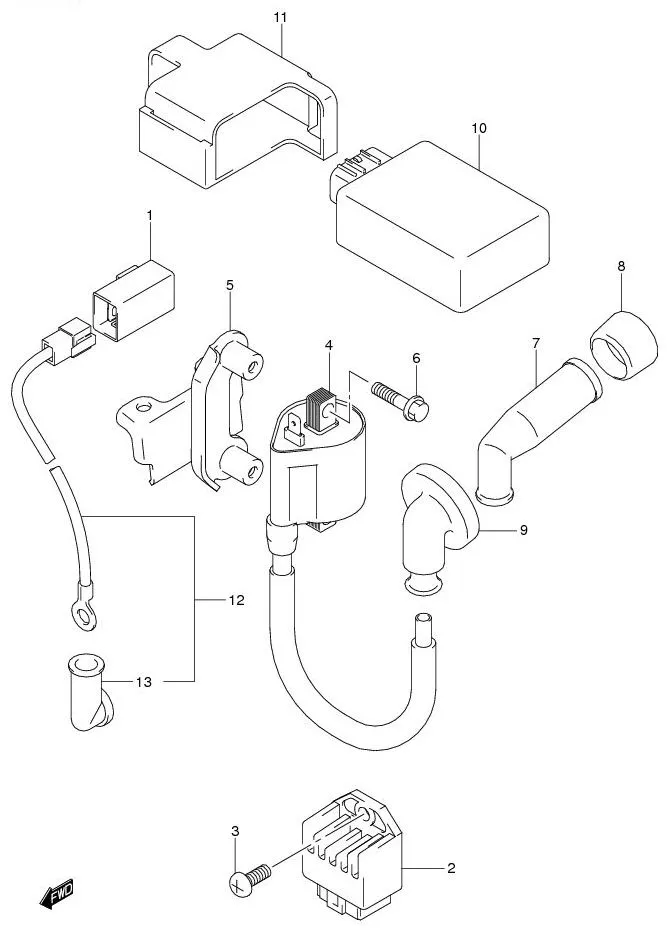

FIG.22 ELECTRICAL

FIG.22 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-16H00-000
SUB: 31800B16H00N000		 RELAY ASSY, STARTING MOTOR 1 Rp64.500
2 32800-41H01-000
SUB: 32800B41H00N000		 RECTIFIER ASSY 1 Rp117.500
3 02112-0612A-000
SUB: 02112B0612BN000		 SCREW, RECTIFIER 1 Rp3.500
4 33410-41H12-000
SUB: 33410-41H11-000		 COIL ASSY, IGNITION 1 Rp53.500
5 33414-41H10-000
SUB: 33414B41H10N000		 BRACKET, IGNITION COIL 1 Rp35.500
6 01547-0616A-000
SUB: 01547B0616BN000		 BOLT, IGNITION COIL 2 Rp6.500
7 33500-16H00-000
SUB: 33510B16H10N000		 CAP ASSY, SPARK PLUG 1 Rp41.000
8 DISCONTINUE
SUB: 33541B16H00N000		 SEAL, SPARK PLUG 1 -
9 DISCONTINUE
SUB: 33542B41H00N000		 SEAL, HIGH TENSION CORD 1 -
10 32900-41H00-000
SUB: 32900B41H00N000		 CDI UNIT 1 Rp552.500
11 32980-41H00-000
SUB: 32980B41H00N000		 CUSHION, CDI UNIT 1 Rp37.000
12 33810-41H10-000
SUB: 33810B41H10N000		 WIRE, STARTER MOTOR 1 Rp26.000
13 31861-48B10-000
SUB: 31861-48B10L000		 •CAP, STARTER MOTOR 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
