SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 BATTERYFIG.22 ELECTRICALFIG.23 SPEEDOMETERFIG.24 FRONT COMBINATION LAMPFIG.25 REAR TURNSIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESS

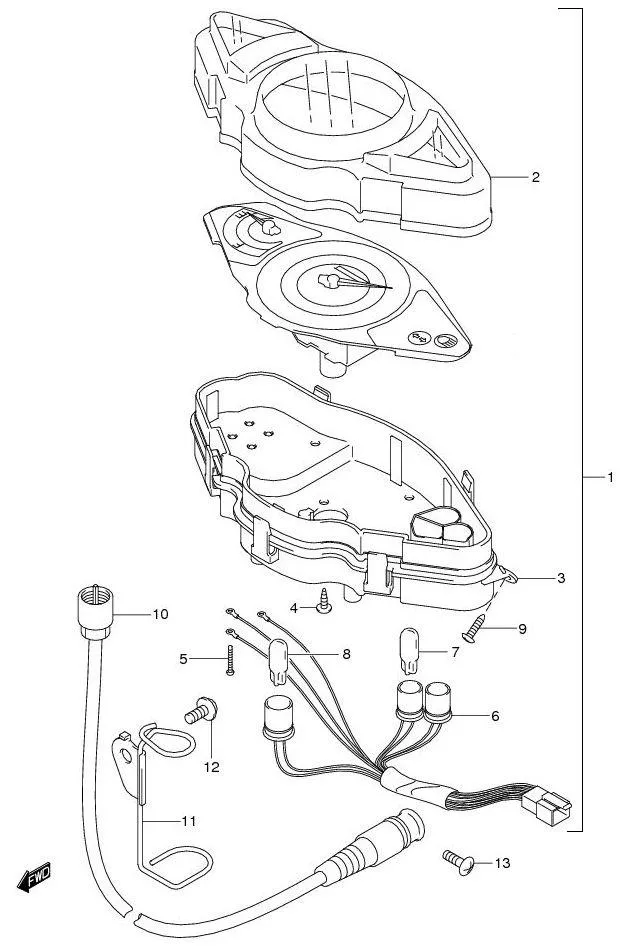

FIG.23 SPEEDOMETER

FIG.23 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34100-41H10-000 SPEEDOMETER ASSY 1 Rp287.000
2 34150-41H00-000 GLASS 1 Rp44.500
3 34111-41H10-000 CASE ASSY 1 Rp55.500
4 02112-7410B-000 SCREW 2 Rp5.000
5 DISCONTINUE
SUB: 34383-09400-000		 SCREW (3X22) 3 -
6 34173-41H10-000 CORD ASSY 1 Rp73.000
7 09471-12077-000 BULB (12V1.7W,T10) 2 Rp6.000
8 09471-12028-000 BULB (12V3.4W,T10) 1 Rp8.000
9 03541-0520A-000 SCREW, SPEEDOMETER 3 Rp3.500
10 34910-41H10-000 CABLE ASSY, SPEEDOMETER 1 Rp45.000
11 DISCONTINUE
SUB: 34930B41H10N000		 GUIDE, SPEEDOMETER CABLE 1 -
12 02142-0612A-000 BOLT, SPDOM CABLE GUIDE 1 Rp4.000
13 02112-0516A-000 SCREW, SPDOM CABLE 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
