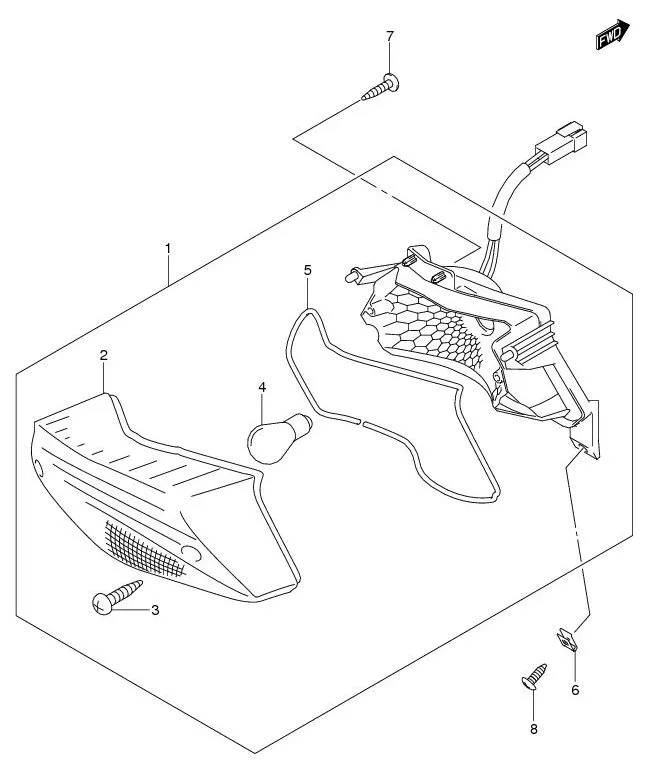

FIG.26 REAR COMBINATION LAMP

FIG.26 REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-41H20-000
SUB: 35710B41H20N000		 LAMP ASSY, REAR COMB 1 Rp99.000
2 35712-41H20-000
SUB: 35712B41H20N000		 •LENS 1 Rp33.500
3 03211-0416A-000
SUB: 03211B0416AN000		 •SCREW 2 Rp4.500
4 09471-12127-000
SUB: 09471B12119N000		 •BULB (12V18/5W) 1 Rp12.500
5 35713-41H20-000
SUB: 35713B41H20N000		 •GASKET 1 Rp4.500 L:342
6 09148-05047-000
SUB: 09148B05047N000		 NUT, REAR COMB 2 Rp3.500
7 03541-0512A-000
SUB: 03541B0512AN000		 SCREW, REAR COMB LAMP 4 Rp3.500
8 03541-0516A-000
SUB: 03541B0516AN000		 SCREW, REAR COMP LAMP 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
