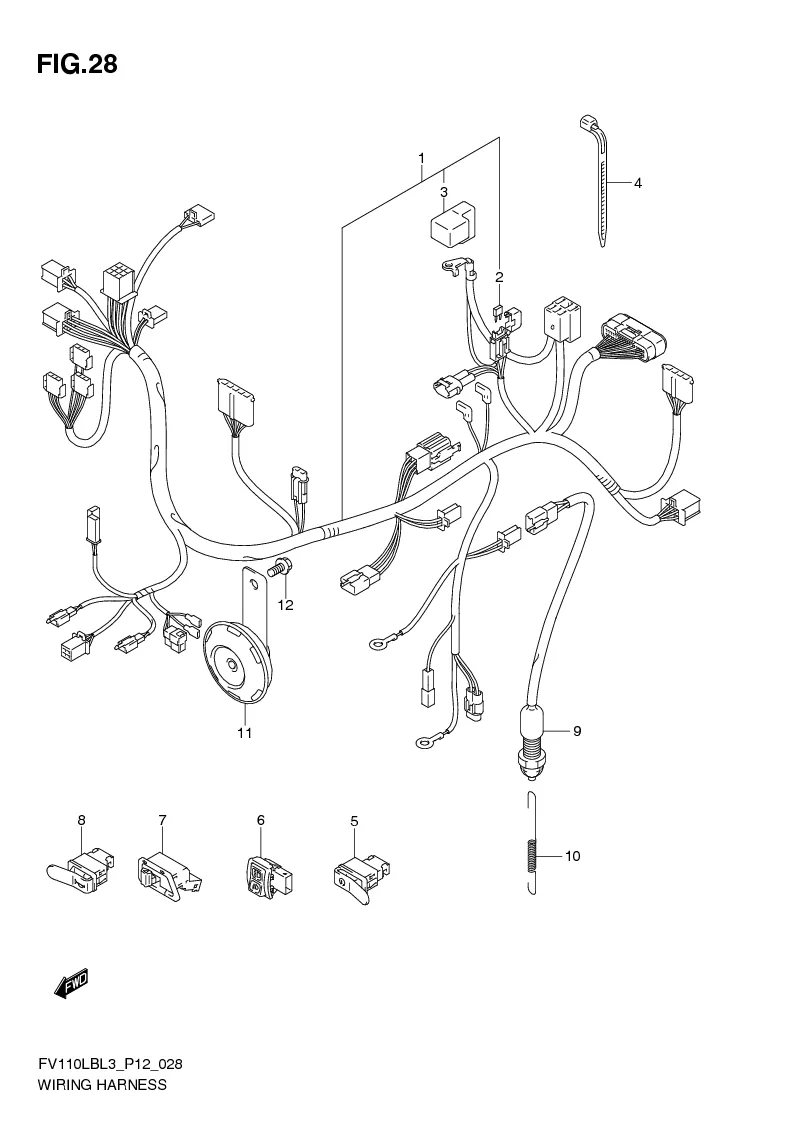

FIG. 28 WIRING HARNESS

FIG. 28 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
2 09481-10501-000 .FUSE (10A) 2 Rp12.000
3 33624-22J00-000
SUB: 33624B22J00N000		 .CAP 1 Rp7.000
4 36990-25G00-000
SUB: 09407-14403L000		 CLAMP (L:125) 2 Rp13.000
5 37310-09G51-000
SUB: 37310B09G50N000		 SWITCH ASSY, STARTER 1 Rp21.500
6 37420-09G21-000
SUB: 37420B09G21N000		 SWITCH ASSY, DIMMER 1 Rp20.500
7 37510-10E30-000
SUB: 37510B10E30N000		 SWITCH ASSY, TURNSIGNAL 1 Rp24.000
8 37520-09G51-000
SUB: 37520B09G50N000		 SWITCH ASSY, HORN 1 Rp20.000
9 37740-09G30-000
SUB: 37740B09G10N000		 SWITCH ASSY, STOP LAMP 1 Rp20.000
10 43139-22J00-000
SUB: 43139B22J00N000		 SPRING, STOP LAMP SWITCH 1 Rp6.500
11 38500-45H10-000
SUB: 38500B45H10N000		 HORN ASSY 1 Rp38.000
12 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
