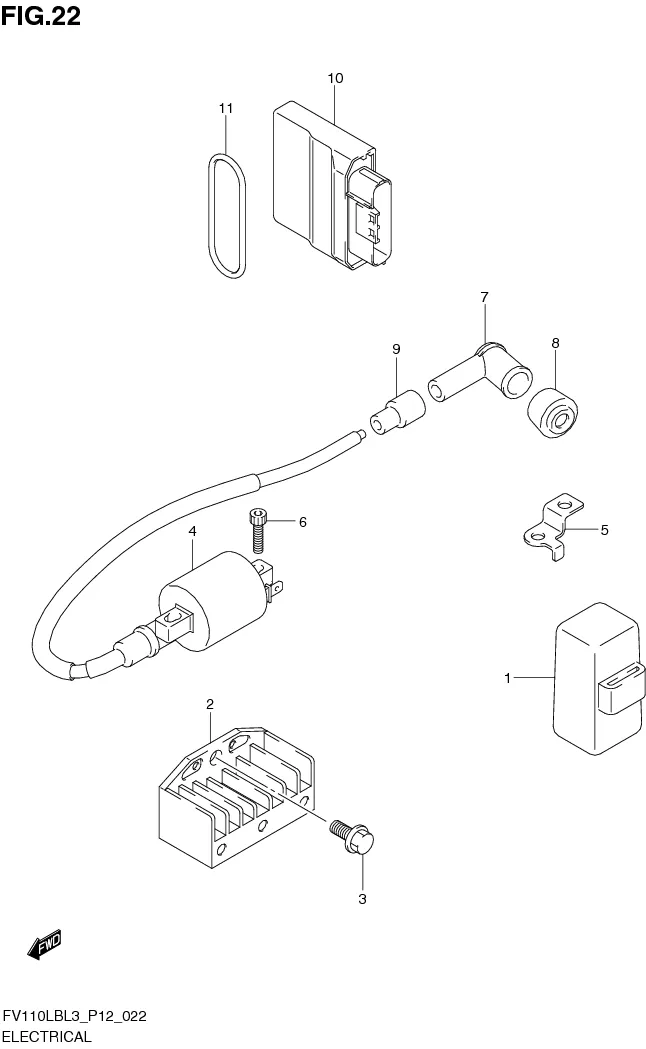

FIG. 22 ELECTRICAL

FIG. 22 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-16H00-000
SUB: 31800B16H00N000		 RELAY ASSY, STARTING MOTOR 1 Rp64.500
2 32800-22J11-000
SUB: 32800B22J10N000		 RECTIFIER ASSY 1 Rp273.000
3 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
4 33410-22J00-000
SUB: 33410B22J00N000		 COIL ASSY, IGNITION 1 Rp84.000
5 33446-22J00-000
SUB: 33446B22J00N000		 BRACKET, HT CORD CLAMP 1 Rp3.500
6 07130-0520A-000
SUB: 07130B0520AN000		 BOLT 2 Rp5.500
7 33510-22J01-000
SUB: 33510B22J00N000		 CAP, SPARK PLUG 1 Rp20.000
8 33541-22J00-000
SUB: 33541B22J00N000		 SEAL, SPARK PLUG 1 Rp8.500
9 33542-22J00-000
SUB: 33542B22J00N000		 SEAL, HIGH TENSION CORD 1 Rp5.500
10 32920-22J00-000
SUB: 32920B22J00N000		 CDI UNIT 1 Rp757.500
11 DISCONTINUE
SUB: 47435B16H00N000		 BAND, FI CONTROL UNIT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
