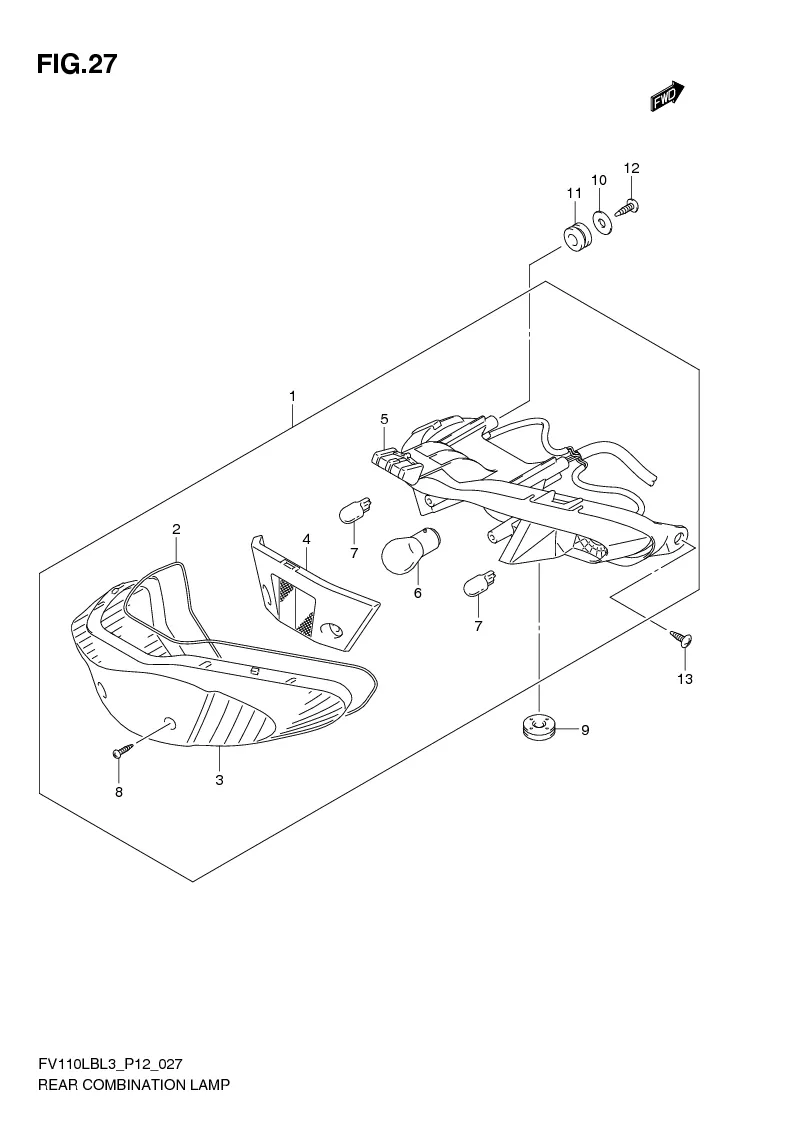

FIG. 27 REAR COMBINATION LAMP

FIG. 27 REAR COMBINATION LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35710-22J00-000 SUB: 35710B22J00N000	LAMP ASSY, REAR COMBINATION	1	Rp130.000
2	35713-22J00-000 SUB: 35713B22J00N000	.GASKET LENS	1	Rp6.500
3	35712-22J00-000 SUB: 35712B22J00N000	.LENS	1	Rp26.000
4	35719-22J00-000 SUB: 35719B22J00N000	.INNER LENS	1	Rp12.500
5	35781-22J00-000 SUB: 35781B22J00N000	.PROTECTOR	1	Rp4.500
6	09471-12127-000 SUB: 09471B12119N000	.BULB (12V18/5W)	1	Rp12.500
7	09471-12114AS01 SUB: 09471B12203N000	.BULB (12V10W)	2	Rp14.000
8	03211-0420A-000 SUB: 03211B0420AN000	.SCREW	2	Rp3.500
9	09320-08028-000 SUB: 09320B08028N000	CUSHION	1	Rp11.500
10	09160-05045-000 SUB: 09160B05045N000	WASHER (5.5X18X1)	2	Rp4.500
11	09320-09016-000 SUB: 09320-09016L000	CUSHION	2	Rp4.000
12	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
13	03541-0512B-000 SUB: 03541B0512BN000	SCREW	2	Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
