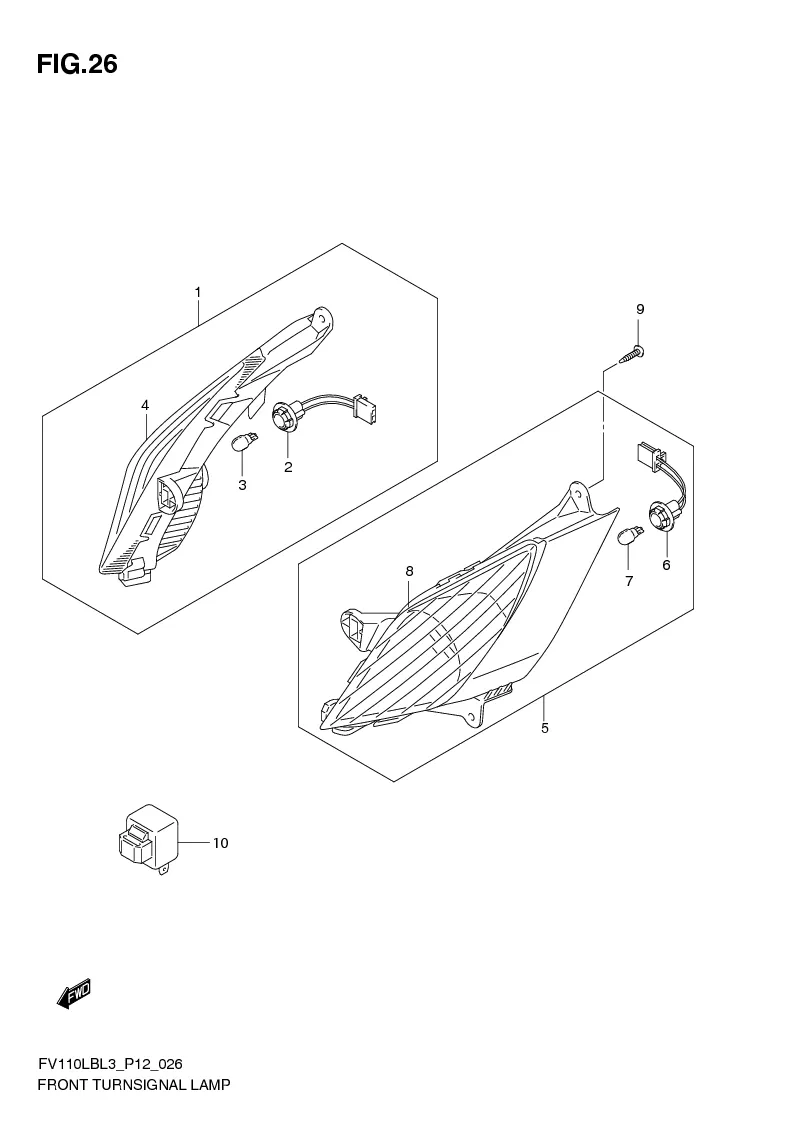

FIG. 26 FRONT TURNSIGNAL LAMP

FIG. 26 FRONT TURNSIGNAL LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35601-22J30-000 SUB: 35601B22J30N000	LAMP ASSY, FRONT TURNSIGNAL RH	1	Rp56.500
2	35618-22J00-000 SUB: 35618B22J00N000	.CORD ASSY	1	Rp14.000
3	09471-12114AS01 SUB: 09471B12203N000	.BULB (12V10W)	1	Rp14.000
4	35612-22J00-000 SUB: 35612B22J30N000	.LENS TURN SIGN LAMP,RH	1	Rp9.500
5	35602-22J30-000 SUB: 35602B22J30N000	LAMP ASSY, FRONT TURNSIGNAL LH	1	Rp56.500
6	35638-22J00-000 SUB: 35638B22J00N000	.CORD ASSY	1	Rp14.000
7	09471-12114AS01 SUB: 09471B12203N000	.BULB (12V10W)	1	Rp14.000
8	35632-22J00-000 SUB: 35632B22J30N000	.LENS TURN SIGN LAMP,RH	1	Rp9.500
9	03541-0416A-000 SUB: 03541B0416AN000	SCREW	4	Rp3.500
10	38610-35491-000 SUB: 38610-35491L000	RELAY ASSY, TURNSIGNAL	1	Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
