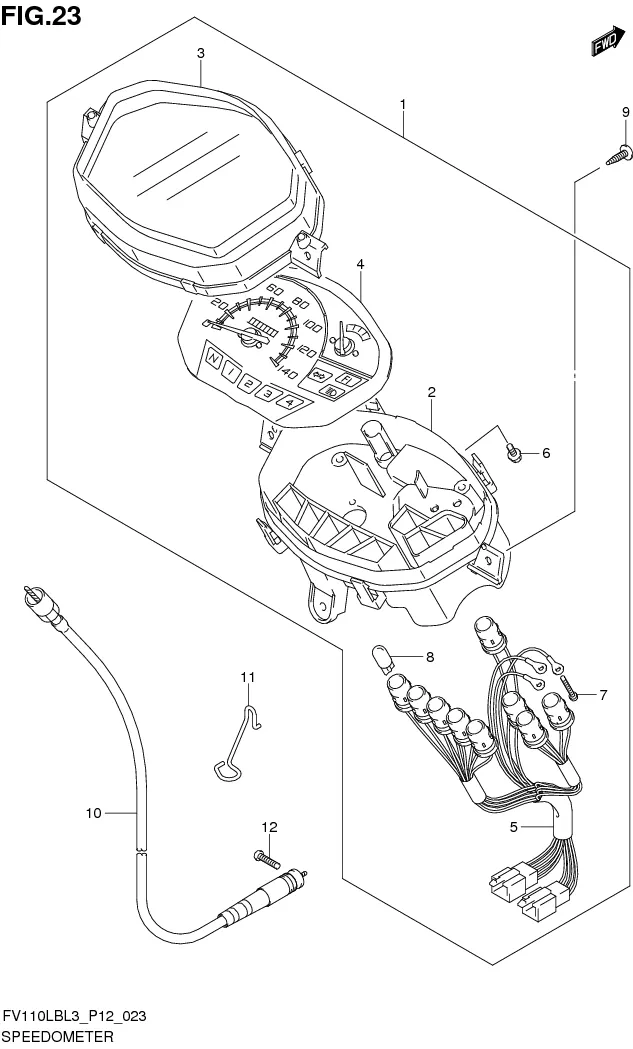

FIG. 23 SPEEDOMETER

FIG. 23 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34100-22J00-000
SUB: 34100B22J00N000		 SPEEDOMETER ASSY 1 Rp253.000
2 34111-22J00-000
SUB: 34111B22J00N000		 .CASE 1 Rp36.500
3 34150-22J00-000
SUB: 34150B22J00N000		 .GLASS ASSY 1 Rp33.000
4 34120-22J00-000
SUB: 34120B22J00N000		 .SPEEDOMETER 1 Rp183.500
5 34173-22J00-000
SUB: 34173B22J00N000		 .CORD ASSY 1 Rp85.000
6 02112-7410B-000
SUB: 02112B7410BN000		 .SCREW 2 Rp5.000
7 DISCONTINUE
SUB: 34383B09400N000		 .SCREW 3 -
8 09471-12077-000
SUB: 09471-12077L000		 .BULB (12V,1.7W) 9 Rp6.000
9 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 3 Rp3.500
10 34910-41H10-000
SUB: 34910B41H10N000		 CABLE ASSY, SPEEDOMETER 1 Rp45.000
11 34931-22J00-000
SUB: 34931B22J00N000		 GUIDE, SPEEDOMETER CABLE 1 Rp10.000
12 02112-0516A-000
SUB: 02112B0516AN000		 SCREW 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
