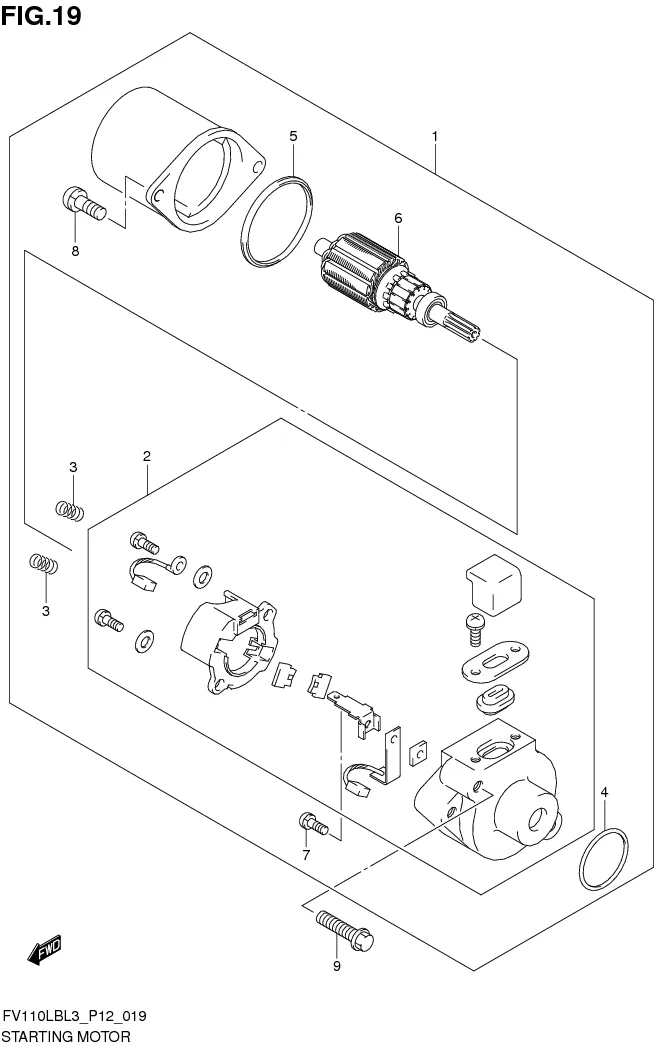

FIG. 19 STARTING MOTOR

FIG. 19 STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-45H02-000
SUB: 31100B45H02N000		 MOTOR ASSY, STARTING 1 Rp304.000
2 31130-30D10-000
SUB: 31130B30D10N000		 .BRUSH HOLDER ASSY 1 Rp93.000
3 31135-05B00-000
SUB: 31135-05B00L000		 .SPRING, BRUSH 2 Rp41.000
4 31156-05B00-000
SUB: 31156B05B00N000		 .O RING 1 Rp10.000
5 31157-30DA0-000
SUB: 31157B30DA0N000		 .PACKING 1 Rp4.500
6 31311-45H00-000
SUB: 31311B45H00N000		 .ARMATURE ASSY 1 Rp150.500
7 02112-3406A-000
SUB: 02112B3406AN000		 .SCREW 1 Rp11.500
8 02112-3620A-000
SUB: 02112B3620AN000		 .SCREW 2 Rp4.000
9 01547-0630A-000
SUB: 01547B0630AN000		 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
