Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 19 STARTING MOTOR (TONNAN)FIG. 20 STARTING MOTOR (MITSUBA)FIG. 21 MAGNETO FIG. 22 BATTERY FIG. 23 ELECTRICAL FIG. 24 SPEEDOMETER FIG. 25 FRONT COMBINATION LAMP FIG. 26 REAR COMBINATION LAMP FIG. 27 WIRING HARNESS FIG. 28 HANDLE SWITCH FIG. 29 LOCK SET

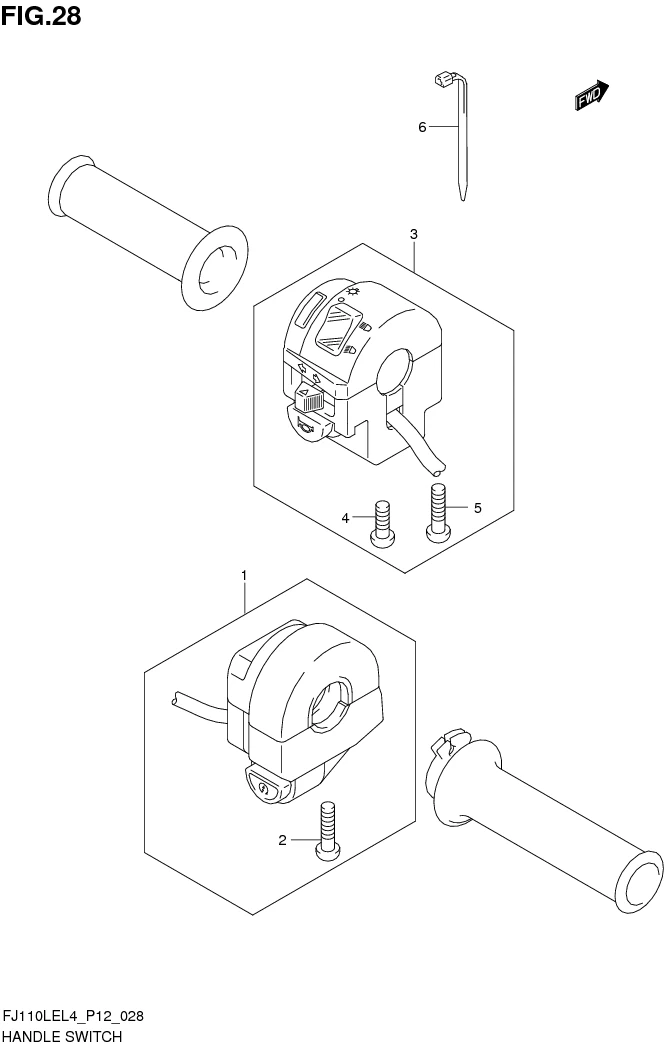

FIG. 28 HANDLE SWITCH

FIG. 28 HANDLE SWITCH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37200-09GJ0-000	SWITCH ASSY, HANDLE RH	1	Rp148.500
2	02112-0535B-000	.SCREW	2	Rp13.000
3	37400-32J10-000	SWITCH ASSY, HANDLE LH	1	Rp297.500
4	02112-0530B-000 SUB: 02112B0530BN000	.SCREW	1	Rp5.500
5	02112-0535B-000	.SCREW	1	Rp13.000
6	36990-25G00-000	CLAMP (L:95)	1	Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
