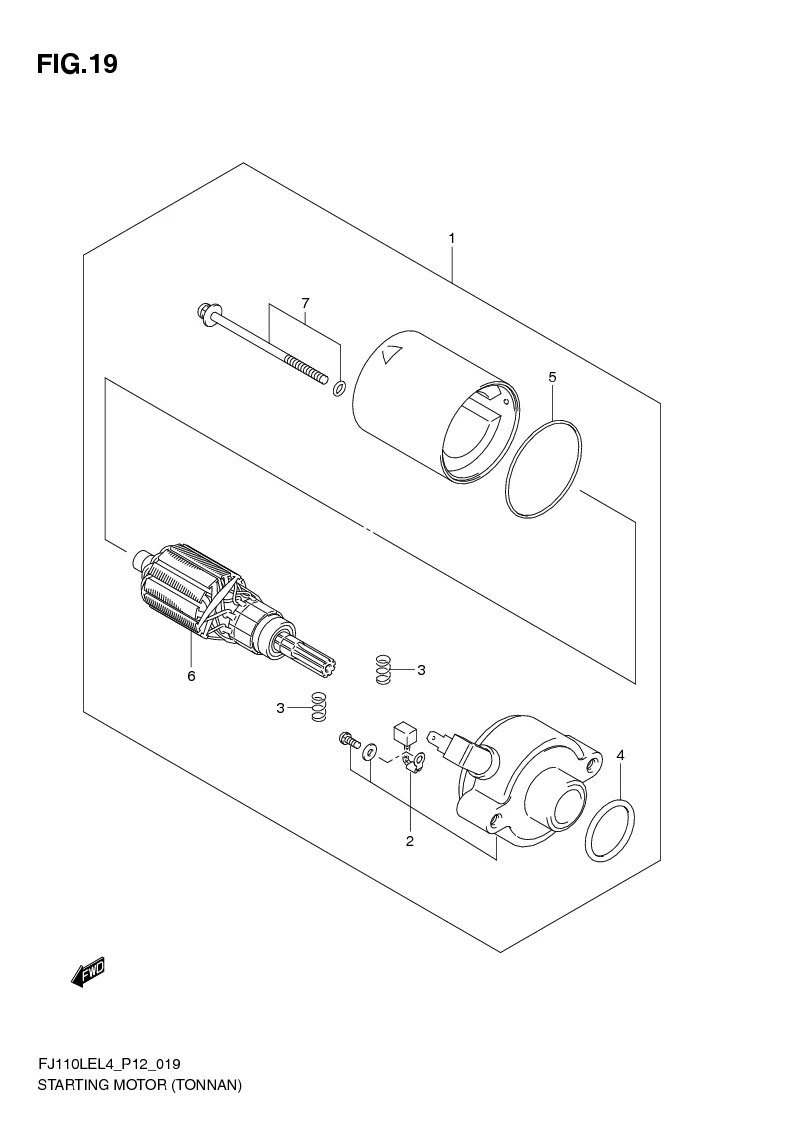

FIG. 19 STARTING MOTOR (TONNAN)

FIG. 19 STARTING MOTOR (TONNAN)
No No. Part Description Qty Price Per Pcs Remarks
1 31100-22J11-000
SUB: 31100B22J10N000		 MOTOR ASSY,STARTING 1 Rp411.000
2 31132-22J10-000
SUB: 31132B22J10N000		 .BRUSH SET 1 Rp118.500
3 31135-22J10-000
SUB: 31135B22J10N000		 .SPRING 2 Rp43.500
4 31156-22J10-000
SUB: 31156B22J10N000		 .O RING 1 Rp14.500
5 31157-22J10-000
SUB: 31157B22J10N000		 .PACKING 1 Rp6.500
6 31311-22J10-000
SUB: 31311B22J10N000		 .ARMATURE ASSY 1 Rp171.000
7 31280-22J10-000
SUB: 31280B22J10N000		 .BOLT 2 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
