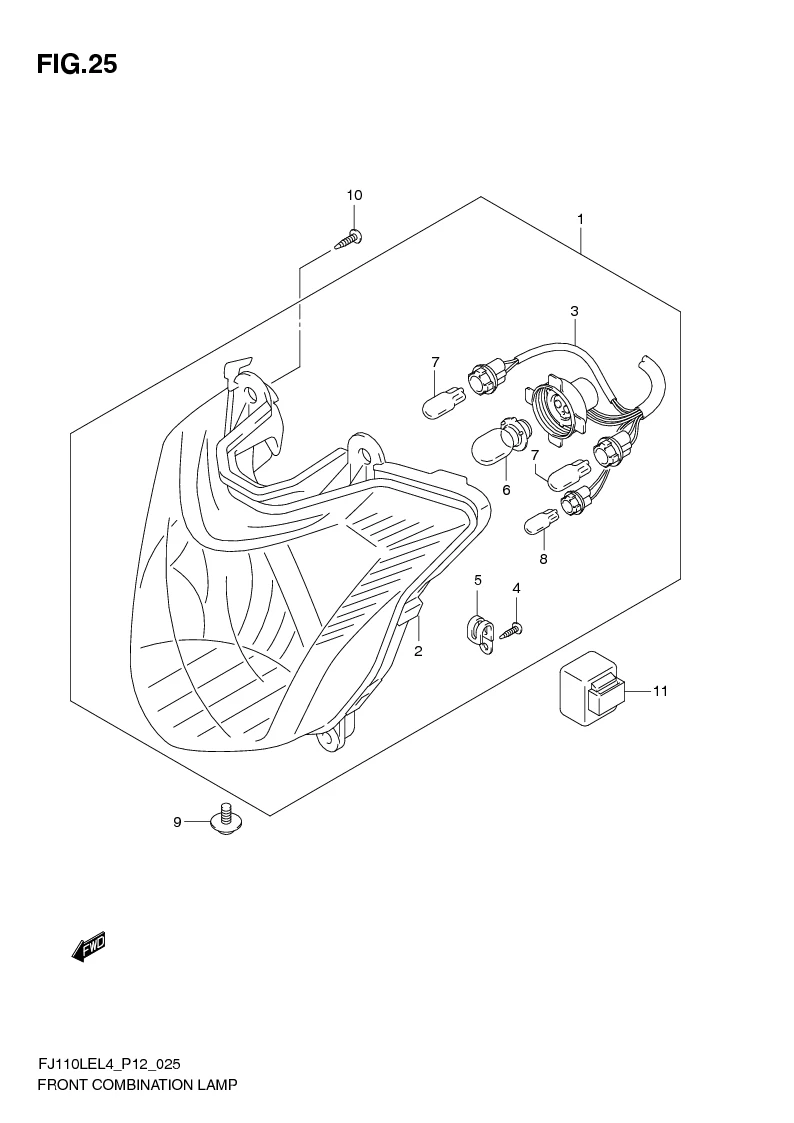

FIG. 25 FRONT COMBINATION LAMP

FIG. 25 FRONT COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100-32J10-000 HEADLAMP ASSY 1 Rp593.500
2 35121-32J10-000 .HEADLAMP UNIT 1 Rp384.500
3 35171-32J10-000 .SOCKET 1 Rp65.000
4 35187-32J00-000 .SCREW 1 Rp15.000
5 35328-32J00-000 .CLIP 1 Rp9.500
6 09471-12213-000
SUB: 09471B12213N000		 .BULB (12V32/32W) 1 Rp35.500
7 09471-12114AS01 .BULB (12V10W) 2 Rp14.000
8 09471-12028-000 .BULB (12V,3.4W) 1 Rp8.000
9 09136-05051-000 SCREW (5X12) 1 Rp6.500
10 03541-0516A-000 SCREW 4 Rp3.500
11 38610-35491-000 RELAY ASSY, TURNSIGNAL 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
