Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 19 STARTING MOTOR (TONNAN)FIG. 20 STARTING MOTOR (MITSUBA)FIG. 21 MAGNETOFIG. 22 BATTERYFIG. 23 ELECTRICALFIG. 24 SPEEDOMETERFIG. 25 FRONT COMBINATION LAMPFIG. 26 REAR COMBINATION LAMPFIG. 27 WIRING HARNESSFIG. 28 HANDLE SWITCHFIG. 29 LOCK SET

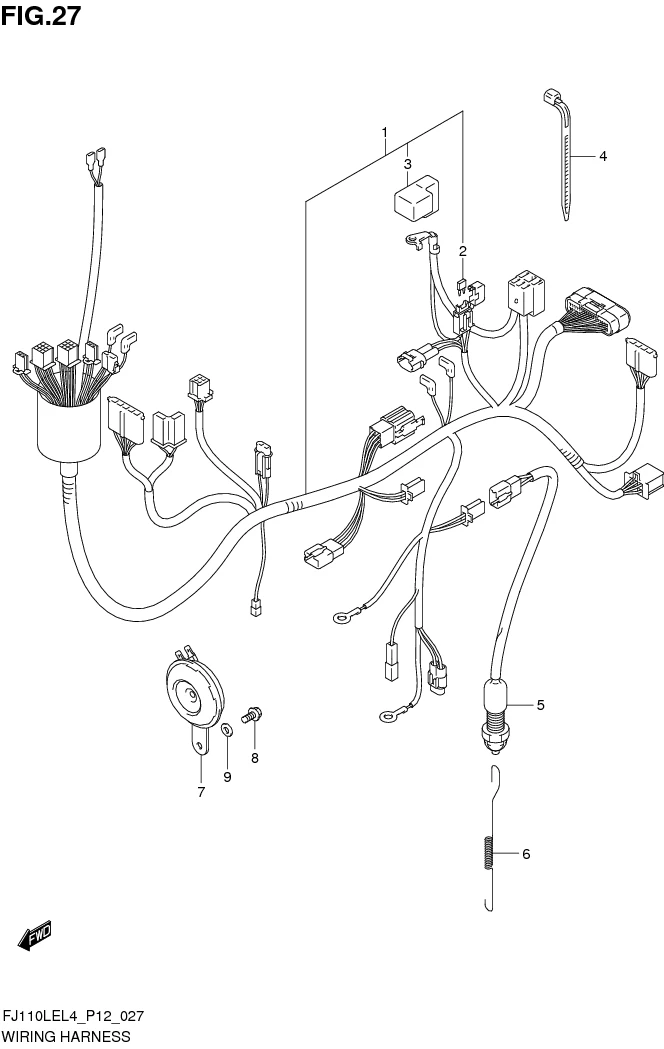

FIG. 27 WIRING HARNESS

FIG. 27 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1 36610-32J10-000 HARNESS, WIRING 1 Rp598.500
2 09481-15501-000 .FUSE (15A) 2 Rp12.000
3 33624-22J00-000
SUB: 33624B22J00N000		 .CAP 1 Rp7.000
4 36990-25G00-000 CLAMP (L:95) 1 Rp13.000
5 37740-09G30-000
SUB: 37740B09G30N000		 SWITCH ASSY, STOP LAMP 1 Rp20.000
6 43139-22J00-000
SUB: 43139B22J00N000		 SPRING, STOP LAMP SWITCH 1 Rp6.500
7 38500-31C81-000 HORN ASSY 1 Rp84.500
8 01550-0610B-000
SUB: 01550B0610BN000		 BOLT 1 Rp3.000
9 08211-06141-000
SUB: 08211B06141N000		 WASHER 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
