Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 19 STARTING MOTOR (TONNAN)FIG. 20 STARTING MOTOR (MITSUBA)FIG. 21 MAGNETOFIG. 22 BATTERYFIG. 23 ELECTRICALFIG. 24 SPEEDOMETERFIG. 25 FRONT COMBINATION LAMPFIG. 26 REAR COMBINATION LAMPFIG. 27 WIRING HARNESSFIG. 28 HANDLE SWITCHFIG. 29 LOCK SET

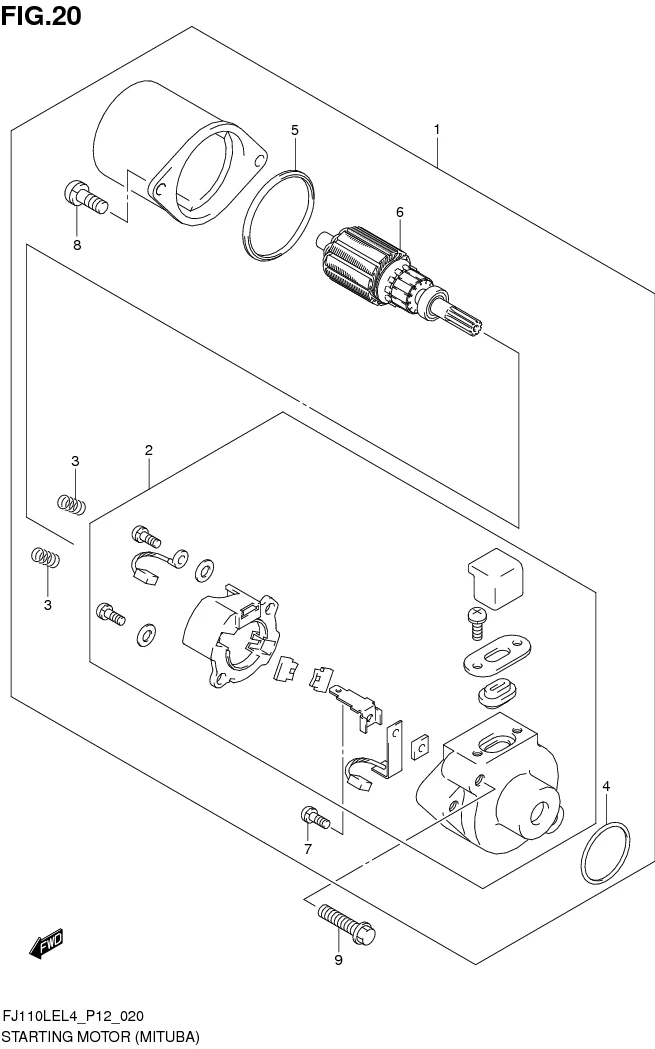

FIG. 20 STARTING MOTOR (MITSUBA)

FIG. 20 STARTING MOTOR (MITSUBA)
No No. Part Description Qty Price Per Pcs Remarks
1 31100-45H02-000
SUB: 31100B45H02N000		 MOTOR ASSY, STARTING 1 Rp304.000
2 31130-30D10-000
SUB: 31130B30D10N000		 .BRUSH HOLDER ASSY 1 Rp93.000
3 31135-05B00-000
SUB: 31135-05B00L000		 .SPRING, BRUSH 2 Rp41.000
4 31156-05B00-000
SUB: 31156B05B00N000		 .O RING 1 Rp10.000
5 31157-30DA0-000
SUB: 31157B30DA0N000		 .PACKING 1 Rp4.500
6 31311-45H00-000
SUB: 31311B45H00N000		 .ARMATURE ASSY 1 Rp150.500
7 02112-3406A-000 .SCREW 1 Rp11.500
8 02112-3620A-000
SUB: 02112B3620AN000		 .SCREW 2 Rp4.000
9 01547-0630A-000 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
