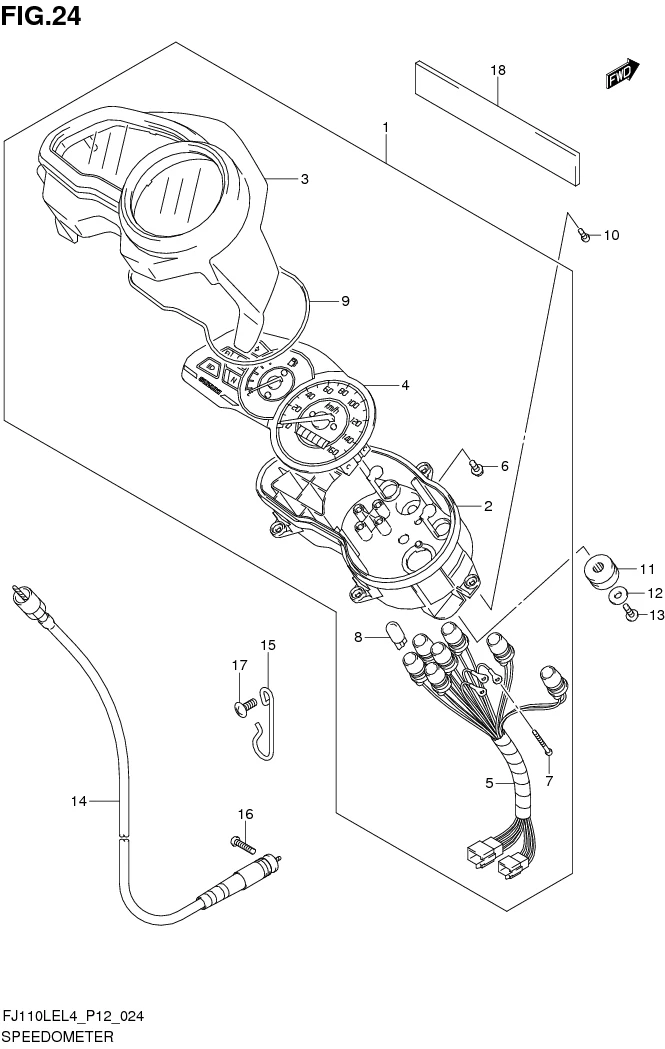

FIG. 24 SPEEDOMETER

FIG. 24 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34100-32J00-000 SPEEDOMETER ASSY 1 Rp306.000
2 34111-32J00-000 .CASE, LOWER 1 Rp57.500
3 34112-32J00-000 .CASE, UPPER 1 Rp77.000
4 34120-32J00-000 .SPEEDOMETER 1 Rp197.000
5 34173-32J00-000 .CORD ASSY 1 Rp95.500
6 34186-32J00-000 .SCREW 2 Rp4.500
7 34383-32J00-000 .SCREW 3 Rp4.500
8 09471-12077-000 .BULB (12V,1.7W) 7 Rp6.000
9 34114-32J00-000 .CUSHION 1 Rp4.500
10 34149-32J00-000 .SCREW 5 Rp4.500
11 34955-13E01-000
SUB: 34955-13E00-000		 CUSHION 3 Rp4.500
12 09160-04026-000
SUB: 09160B04026N000		 WASHER (4.5X16X1.2) 1 Rp10.500
13 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 1 Rp3.500
14 34910-45H60-000
SUB: 34910B45H60N000		 CABLE ASSY, SPEEDOMETER 1 Rp41.000
15 DISCONTINUE
SUB: 34931-32J00-000		 GUIDE, SPEEDOMETER CABLE 1 -
16 02112-0516A-000 SCREW 1 Rp5.500
17 02142-0612A-000 SCREW 1 Rp4.000
18 34188-32J00-000 CUSHION 1 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
