Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 19 STARTING MOTOR (TONNAN)FIG. 20 STARTING MOTOR (MITSUBA)FIG. 21 MAGNETO FIG. 22 BATTERY FIG. 23 ELECTRICAL FIG. 24 SPEEDOMETER FIG. 25 FRONT COMBINATION LAMP FIG. 26 REAR COMBINATION LAMP FIG. 27 WIRING HARNESS FIG. 28 HANDLE SWITCH FIG. 29 LOCK SET

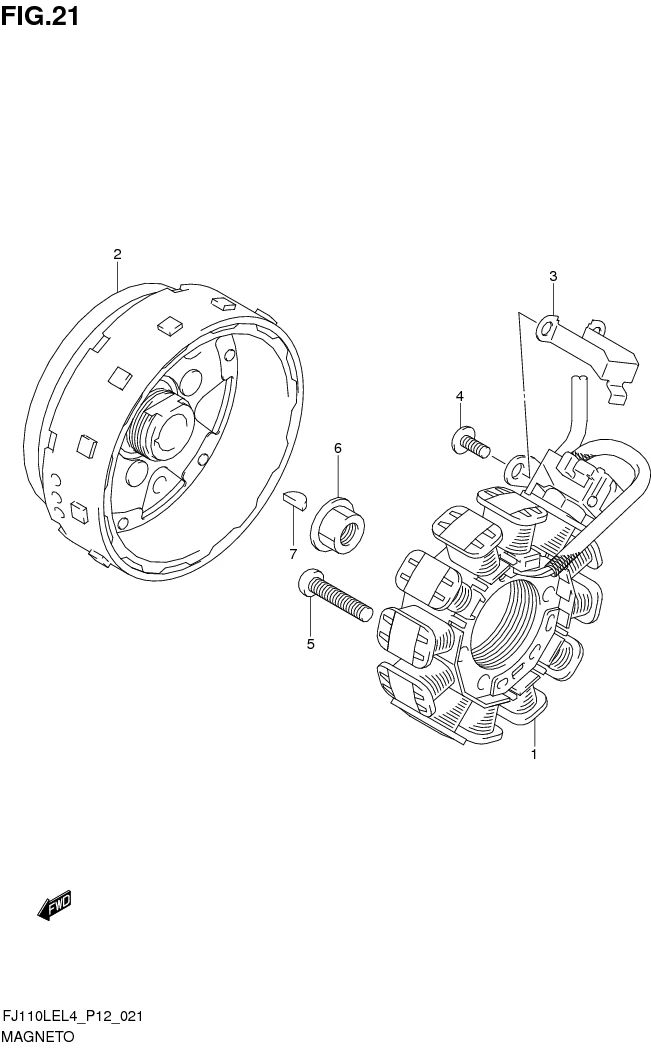

FIG. 21 MAGNETO

FIG. 21 MAGNETO

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32101-22J00-000 SUB: 32101B22J00N000	STATOR ASSY, MAGNETO	1	Rp196.500
2	32102-22J00-000 SUB: 32102B22J00N000	ROTOR ASSY, MAGNETO	1	Rp212.000
3	32371-22J00-000 SUB: 32371B22J00N000	CLAMP, MAGNETO LEAD	1	Rp3.500
4	02142-0510A-000 SUB: 02142B0510AN000	SCREW	2	Rp4.000
5	02112-0625A-000	SCREW	2	Rp4.000
6	08316-1012A-000 SUB: 08316B1012AN000	NUT	1	Rp6.500
7	08341-31039-000	KEY	1	Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
