S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT:RHD)MT TRANSMISSION GEAR(K10B)MT TRANSMISSION GEAR(K10C)MT TRANSMISSION CASE(K10B)MT TRANSMISSION CASE(K10C)GEAR SHIFT FORK (K10B:MT)AGS CLUTCH(5AGS)AGS TRANSMISSION GEARAGS TRANSMISSION CASEGEAR SHIFT FORK(K10B:AGS,K10C:MT,AGS)AGS ACTUATORGEAR SHIFT CONTROL(5MT)SELECT LEVER(5AGS)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (5AGS)

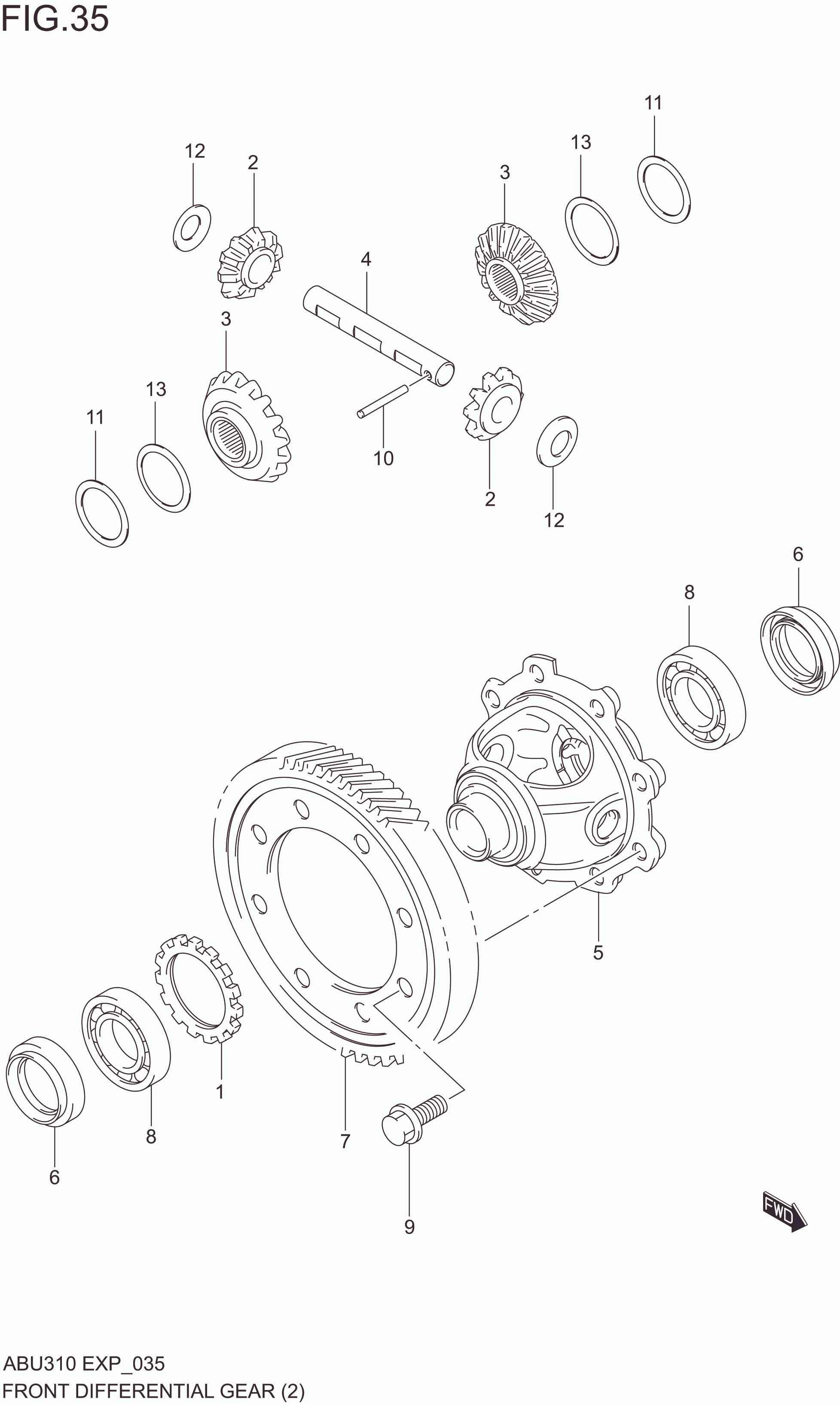

FRONT DIFFERENTIAL GEAR (5AGS)

FRONT DIFFERENTIAL GEAR (5AGS)
No No. Part Description Qty Price Per Pcs Remarks
1 26121-77M00-000 RING,EXCITER 1 Rp51.000
2 27331M55K00-000 PINION,DIFFERENTIAL 2 Rp163.500
3 27341M68K02-000 GEAR,DIFFERENTIAL SIDE 2 Rp238.000
4 27351M76M20-000 SHAFT,DIFFERENTIAL PINION 1 Rp75.000
5 27411M69R00-000 CASE,DIFFERENTIAL 1 Rp472.500
6 27432M74LB0-000 SEAL,DIFF SIDE OIL 2 Rp81.500
7-1 27511M68PF0-000 GEAR,FINAL R :K10B 1 Rp1.178.000 K10B
7-2 27511M68P00-000 GEAR,FINAL R :K10C 1 Rp1.690.500 K10C
8 27524M75J20-000 BEARING,DIFFERENTIAL SIDE 2 Rp208.500
9 09103-10189-000 BOLT,FINAL GEAR 8 Rp29.000
10 09205M05007-000 PIN 1 Rp5.000
11-1 09160M35015-000 WASHER(T:0.60) 0 Rp6.500
11-10 09160M35023-000 WASHER(T:1.05) 0 Rp10.000
11-9 09160M35018-000 WASHER(T:1.00) 0 Rp20.500
11-8 09160M35022-000 WASHER(T:0.95) 0 Rp10.000
11-7 09160M35021-000 WASHER(T:0.90) 0 Rp10.000
11-6 09181M35159-000 WASHER(T:0.85) 0 Rp9.000
11-5 09160M35013-000 WASHER(T:0.80) 0 Rp9.000
11-4 09181M35158-000 WASHER(T:0.75) 0 Rp9.000
11-3 09160M35014-000 WASHER(T:0.70) 0 Rp10.000
11-2 09181M35157-000 WASHER(T:0.65) 0 Rp9.000
12 09164M17006-000 WASHER 2 Rp8.000
13 27361M76M00-000 WASHER,DIFF SIDE GEAR SPRING 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
