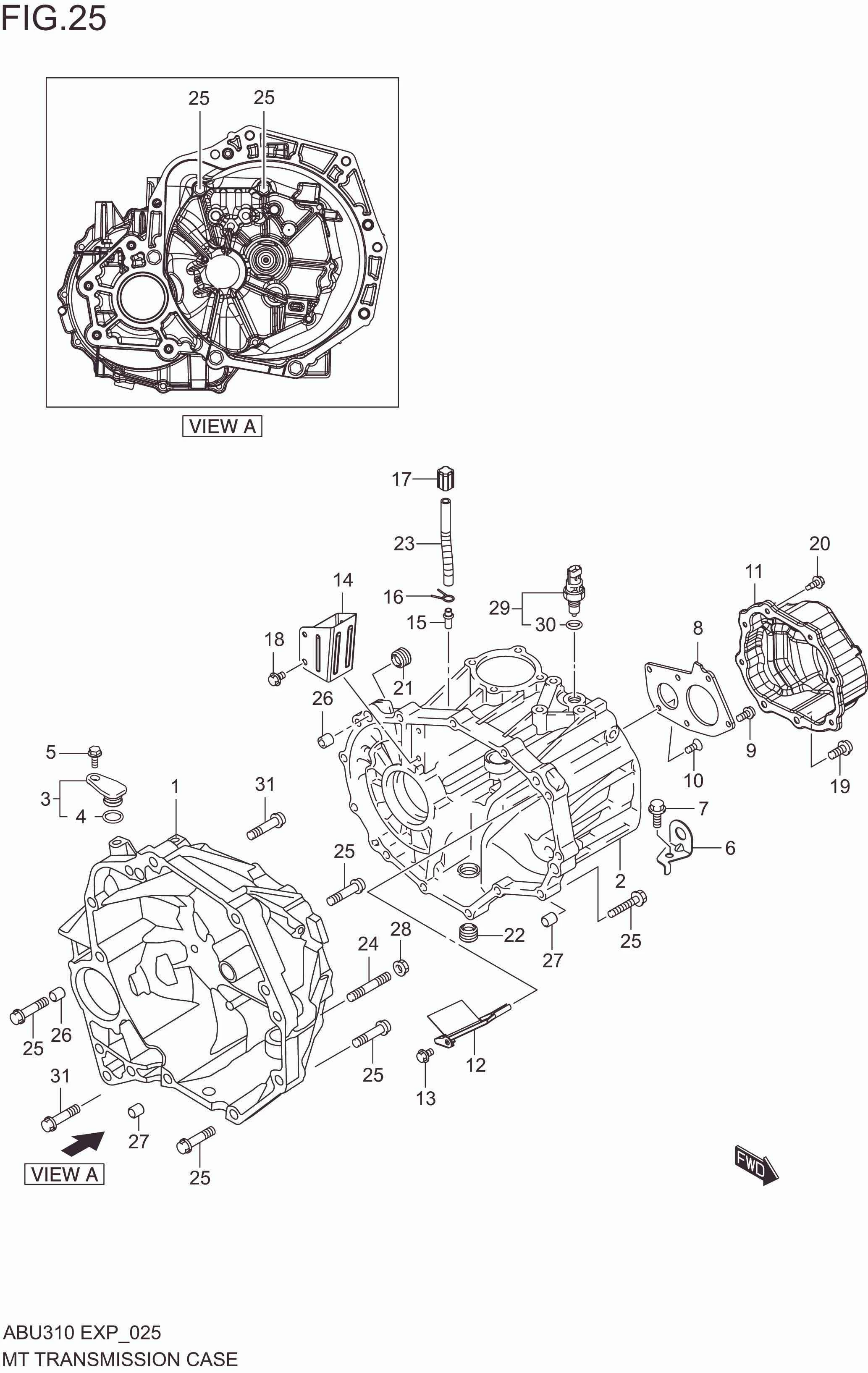

MT TRANSMISSION CASE(K10B)

MT TRANSMISSION CASE(K10B)
No No. Part Description Qty Price Per Pcs Remarks
1 24711M62S00-000 CASE,TRANSMISSION RH 1 Rp4.088.000
2 24721M62S00-000 CASE,TRANSMISSION LH 1 Rp4.088.000
3-1 24723M68K01-000 CAP ,SPEEDOMETER SENSOR R :VENDOR-1 1 Rp169.000 VENDOR-1
3-2 24723M68K20-000 CAP ,SPEEDOMETER SENSOR R :VENDOR-2 1 Rp164.000 VENDOR-2
4 09280-15018-000 .O-RING,SPEED SENSOR 1 Rp40.000
5 01550-0616A-000 BOLT 1 Rp3.500
6 24855M75J00-000 HOOK,TRANSAXLE FRONT 1 Rp5.000
7 01550-0816A-000 BOLT 1 Rp6.000
8 24725M74L01-000 PLATE,T/M LEFT CASE 1 Rp72.500
9 24728-65G60-000 SCREW,T/M LEFT CASE PLATE 5 Rp31.000
10 24728M53M00-000 SCREW,T/M LEFT CASE PLATE 1 Rp9.000
11 DISCONTINUE
SUB: 24730M75J00-000		 COVER ,TRANSMISSION SIDE 1 -
12 24810M68K00-000 GUTTER ,INPUT OIL 1 Rp11.000
13 09103M06518-000 BOLT 1 Rp9.000
14 DISCONTINUE
SUB: 24815M75J00-000		 PLATE,BREATHER CASE 1 -
15 24821M79F00-000 UNION,BREATHER 1 Rp88.500
16 24826M68K00-000 CLIP,BREATHER HOSE 1 Rp5.000
17 27991M79G00-000 PLUG,BREATHER HOSE 1 Rp35.000
18 09103M06518-000 BOLT 2 Rp9.000
19 DISCONTINUE
SUB: 09135-08007-000		 BOLT 2 -
20 09135-06027-000 BOLT 6 Rp15.000
21 09246M16017-000 PLUG,T/M OIL DRAIN 1 Rp24.500
22 09246M16009-000 PLUG,T/M OIL 1 Rp14.500
23 09352M70114-110 HOSE,BREATHER 1 Rp4.000
24 01421-1045A-000 STUD BOLT 1 Rp29.500
25 01550-0840A-000 BOLT 13 Rp3.500
26 04211M13189-000 PIN 2 Rp9.000
27 04211M13189-000 PIN 2 Rp9.000
28 08316-1010A-000 NUT 1 Rp3.500
29 37610M68K00-000 SWITCH ASSY,BACK UP LAMP 1 Rp141.000
30 09280-11002-000 .O RING 1 Rp10.500
31 09103M10463-000 BOLT 6 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
