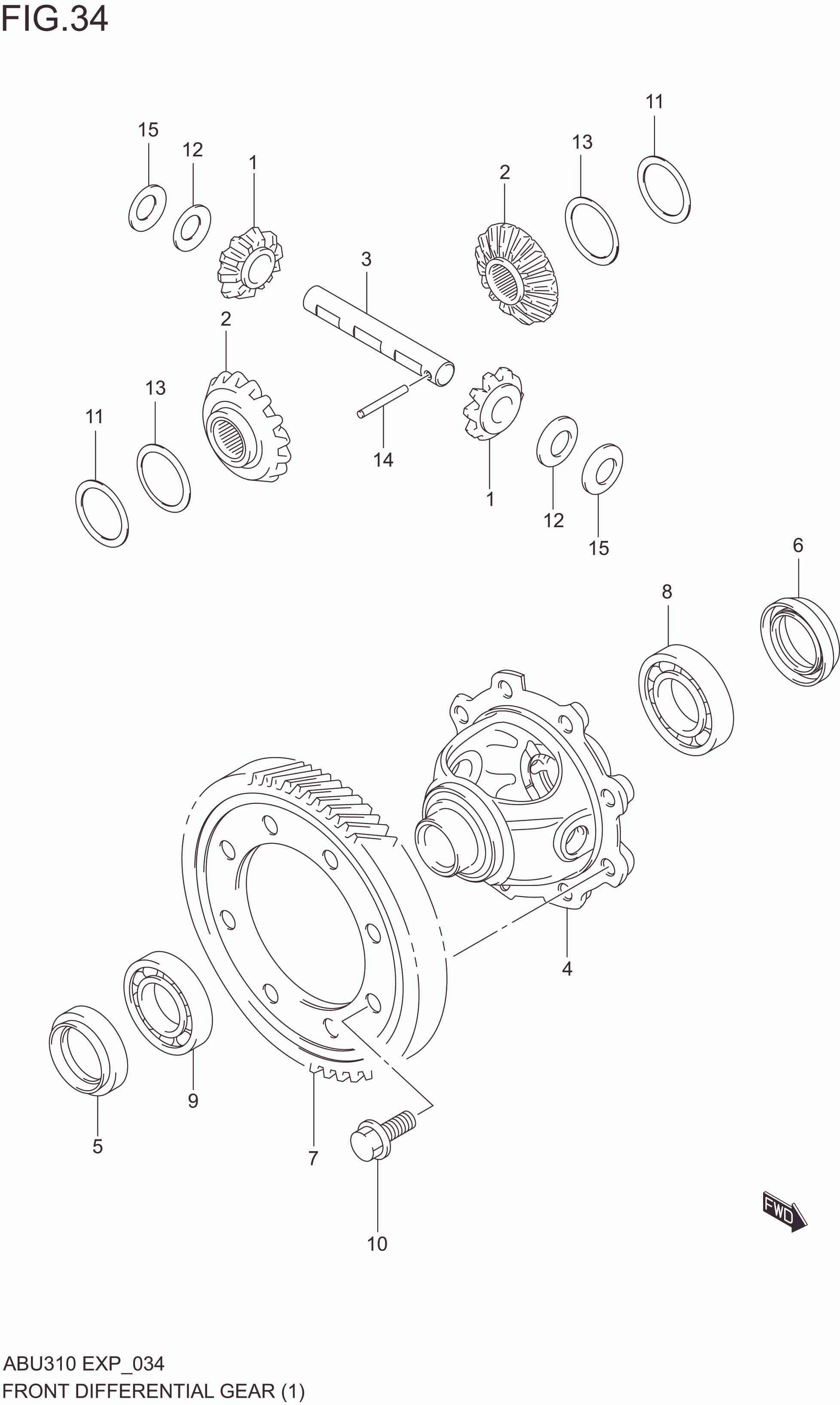

FRONT DIFFERENTIAL GEAR (5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	27331M55K00-000	PINION,DIFFERENTIAL R :K10C	2	Rp163.500	K10C
1-1	27331M74L00-000	PINION,DIFFERENTIAL R :K10B	2	Rp440.000	K10B
2	27341M68K02-000	GEAR,DIFFERENTIAL	2	Rp238.000
3-1	27351M74L00-000	SHAFT,DIFFERENTIAL PINION R :K10B	1	Rp104.000	K10B
3-2	27351M76M20-000	SHAFT,DIFFERENTIAL PINION R :K10C	1	Rp75.000	K10C
4-1	27411M68K20-000	CASE,DIFFERENTIAL R :K10B	1	Rp884.000	K10B
4-2	27411M69R00-000	CASE,DIFFERENTIAL R :K10C	1	Rp472.500	K10C
5	27431M74L00-000	SEAL,DIFFERENTIAL SIDE OIL,RH R :K10B	1	Rp125.500	K10B
6-1	27432M74L00-000	SEAL,DIFFERENTIAL SIDE OIL,LH R :K10B	1	Rp125.500	K10B
6-2	27432M74LB0-000	SEAL,DIFF SIDE OIL R :K10C	2	Rp81.500	K10C
7-1	27511M68K21-000	GEAR,FINAL R :K10B	1	Rp2.022.000	K10B
7-2	27511M68P80-000	GEAR,FINAL R :K10C	1	Rp965.000	K10C
8-1	27524M75J20-000	BEARING,DIFFERENTIAL SIDE LH R :VENDOR 1	1	Rp208.500	VENDOR 1
8-2	27524M75J20-000	BEARING,DIFFERENTIAL SIDE LH R :VENDOR 2	1	Rp208.500	VENDOR 2
9-2	27524M75J20-000	BEARING,DIFFERENTIAL SIDE RH R :VENDOR 2	1	Rp208.500	VENDOR 2
9-1	27524M75J20-000	BEARING,DIFFERENTIAL SIDE RH R :VENDOR 1	1	Rp208.500	VENDOR 1
10	09103-10189-000	BOLT,FINAL GEAR	8	Rp29.000
11-1	09160M35015-000	WASHER(T:0.60)	0	Rp6.500
11-2	09181M35157-000	WASHER(T:0.65)	0	Rp9.000
11-3	09160M35014-000	WASHER(T:0.70)	0	Rp10.000
11-4	09181M35158-000	WASHER(T:0.75)	0	Rp9.000
11-5	09160M35013-000	WASHER(T:0.80)	0	Rp9.000
11-6	09181M35159-000	WASHER(T:0.85)	0	Rp9.000
11-7	09160M35021-000	WASHER(T:0.90)	0	Rp10.000
11-8	09160M35022-000	WASHER(T:0.95)	0	Rp10.000
11-9	09160M35018-000	WASHER(T:1.00)	0	Rp20.500
11-10	09160M35023-000	WASHER(T:1.05)	0	Rp10.000
12	09164M15011-000	WASHER R :K10B	2	Rp8.000	K10B
13	27361M76M00-000	WASHER	2	Rp4.500
14	09205M05007-000	PIN	1	Rp5.000
15	09164M17006-000	WASHER,DIFFERENTIAL PINION R :K10C	2	Rp8.000	K10C
