S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT:RHD)MT TRANSMISSION GEAR(K10B)MT TRANSMISSION GEAR(K10C)MT TRANSMISSION CASE(K10B)MT TRANSMISSION CASE(K10C)GEAR SHIFT FORK (K10B:MT)AGS CLUTCH(5AGS)AGS TRANSMISSION GEARAGS TRANSMISSION CASEGEAR SHIFT FORK(K10B:AGS,K10C:MT,AGS)AGS ACTUATORGEAR SHIFT CONTROL(5MT)SELECT LEVER(5AGS)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (5AGS)

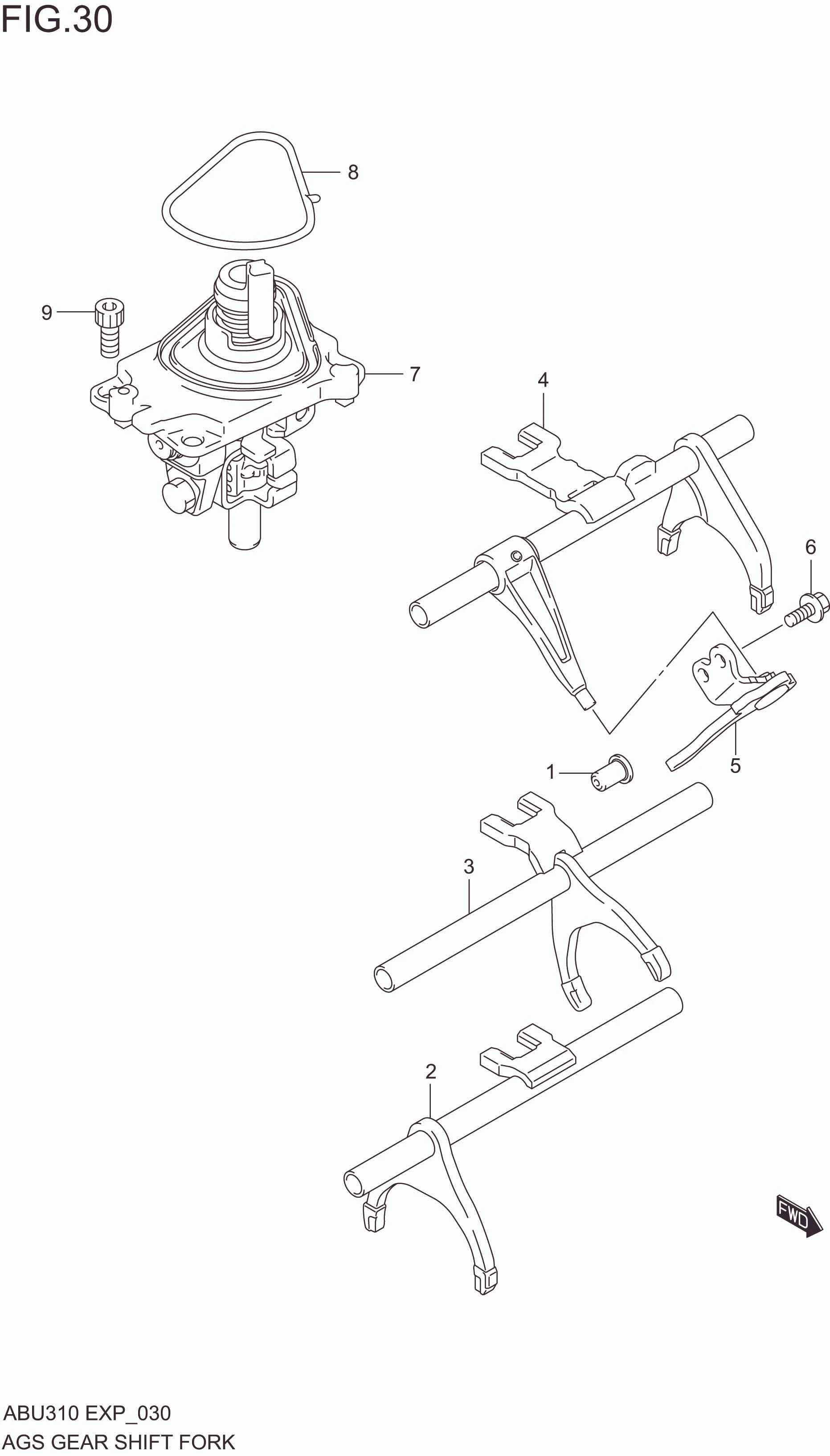

GEAR SHIFT FORK(K10B:AGS,K10C:MT,AGS)

GEAR SHIFT FORK(K10B:AGS,K10C:MT,AGS)
No No. Part Description Qty Price Per Pcs Remarks
1-1 25250M53M00-000 LOCATING ,REV SHIFT R :VENDOR-1 1 Rp11.000 VENDOR-1
1-2 25250M53M20-000 LOCATING ,REV SHIFT R :VENDOR-2 1 Rp20.500 VENDOR-2
2-1 25401M68P20-000 SHAFT,LOW SPEED GEAR SHF R :VENDOR-1 1 Rp554.500 VENDOR-1
2-2 25401M68P20-000 SHAFT,LOW SPEED GEAR SHF R :VENDOR-2 1 Rp554.500 VENDOR-2
3-1 25402M68P40-000 SHAFT,HIGH SPEED GEAR SHF R :VENDOR-1 1 Rp347.500 VENDOR-1
3-2 25402M68P00-000 SHAFT,HIGH SPEED GEAR SHF R :VENDOR-2 1 Rp515.000 VENDOR-2
4-1 25403M68P40-000 SHAFT,5TH & REV GR SHF R :VENDOR-1 1 Rp562.000 VENDOR-1
4-2 25403M68PE0-000 SHAFT,5TH & REV GR SHF R :VENDOR-2 1 Rp675.000 VENDOR-2
5-1 25460M68P00-000 LEVER ,REVERSE GEAR SHIFT R :VENDOR-1 1 Rp61.500 VENDOR-1
5-2 25460M68P20-000 LEVER ,REVERSE GEAR SHIFT R :VENDOR-2 1 Rp55.000 VENDOR-2
6 09103M06317-000 BOLT 2 Rp6.500
7-1 25010M66RE2-000 SHAFT ASSY,GEAR SHIFT & SELECTR :AGS 1 Rp3.364.000 AGS
7-2 25010M69R20-000 SHAFT ASSY,GEAR SHIFT & SELECTR :MT 1 Rp1.241.500 MT
8 25574M76MF0-000 O-RING,GUIDE CASE R :AGS 1 Rp258.500 AGS
9-1 09103M08541-000 BOLT R :AGS 4 Rp10.000 AGS
9-2 01550-0825A-000 BOLT R :K10C:MT 4 Rp3.500 K10C:MT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
