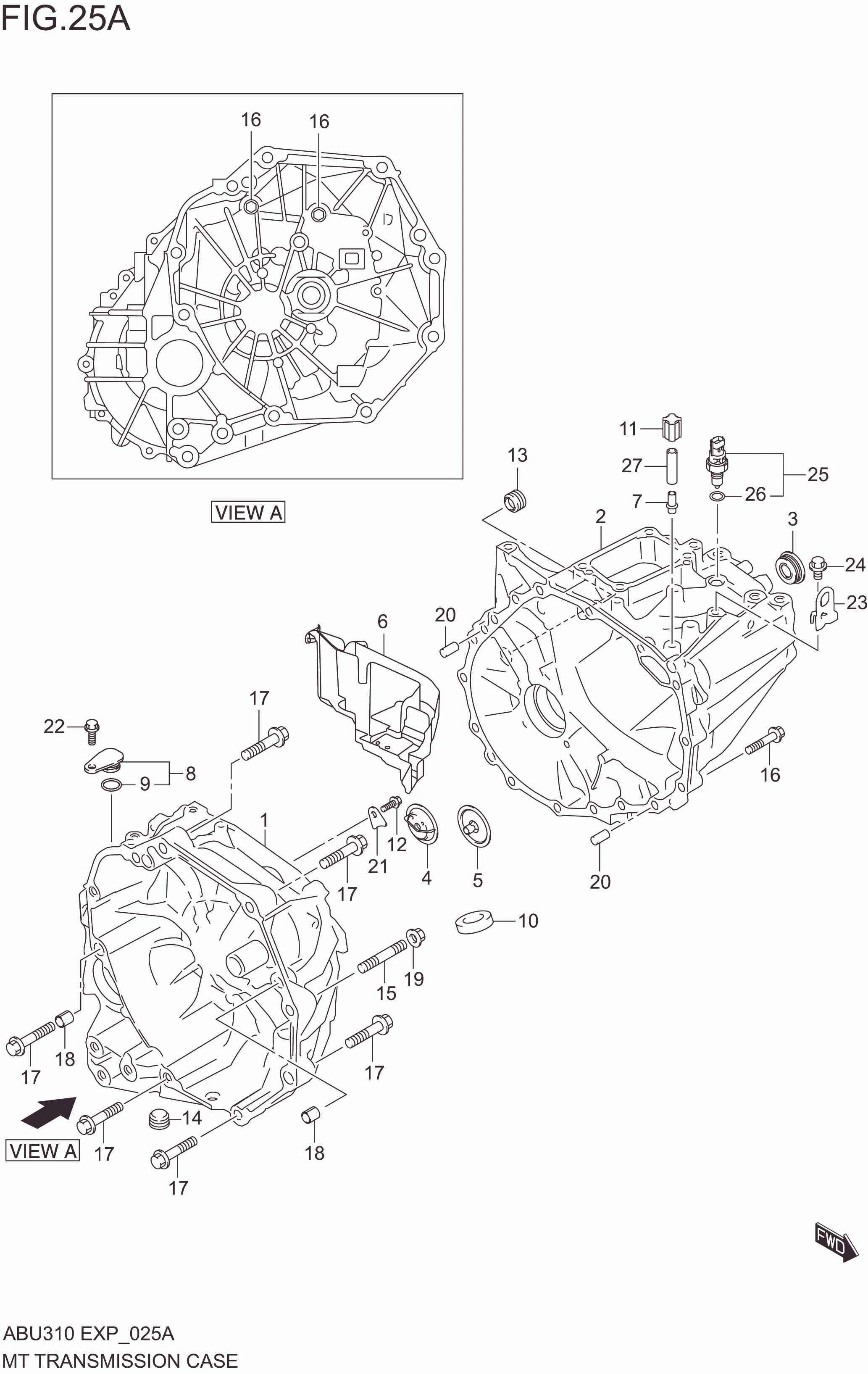

MT TRANSMISSION CASE(K10C)

MT TRANSMISSION CASE(K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 24711M69R00-000 CASE,TRANSAXLE RIGHT 1 Rp3.329.000
2-2 24721M69R40-000 CASE,TRANSMISSION LH R :VENDOR-1 1 Rp3.114.000 VENDOR-1
2-3 24721M69R60-000 CASE,TRANSMISSION LH R :VENDOR-2 1 Rp3.060.500 VENDOR-2
3 24726M76M00-000 PLUG,TRANSAXLE CASE 1 Rp32.000
4 24733M76M00-000 CHANNEL,OIL COUNTERSHAFT 1 Rp11.500
5 24734M76M00-000 CHANNEL,OIL INPUT SHAFT 1 Rp13.000
6 24811M81R00-000 GUTTER,INPUT OIL 1 Rp41.500
7 24821M79F00-000 UNION,BREATHER 1 Rp88.500
8 24723M68K20-000 CAP ,SPEEDOMETER SENSOR 1 Rp164.000
9 09280-15018-000 .O-RING,SPEED SENSOR 1 Rp40.000
10 24861M76M00-000 MAGNET,OIL CLEANER 1 Rp31.000
11 27991M79G00-000 PLUG,BREATHER 1 Rp35.000
12 09103M06317-000 BOLT 1 Rp6.500
13 09246M16009-000 PLUG 1 Rp14.500
14 09246M16017-000 PLUG 1 Rp24.500
15 01421-1045A-000 STUD BOLT 1 Rp29.500
16 01550-0840A-000 BOLT 16 Rp3.500
17 09103M10463-000 BOLT 6 Rp10.500
18 04211M13189-000 PIN 2 Rp9.000
19 08316-1010A-000 NUT 1 Rp3.500
20 11519M67L00-000 PIN 2 Rp6.000
21 24852M76M02-000 PLATE,COUNTERSHAFT R BRG 1 Rp9.000
22 01550-0616A-000 BOLT 1 Rp3.500
23 24855M68P00-000 HOOK,TRANSAXLE 1 Rp15.000
24 01550-0816A-000 BOLT 1 Rp6.000
25 37610M68K00-000 SWITCH ASSY,BACK UP LAMP 1 Rp141.000
26 09280-11002-000 .O RING 1 Rp10.500
27 09352M70114-040 HOSE,BREATHER 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
