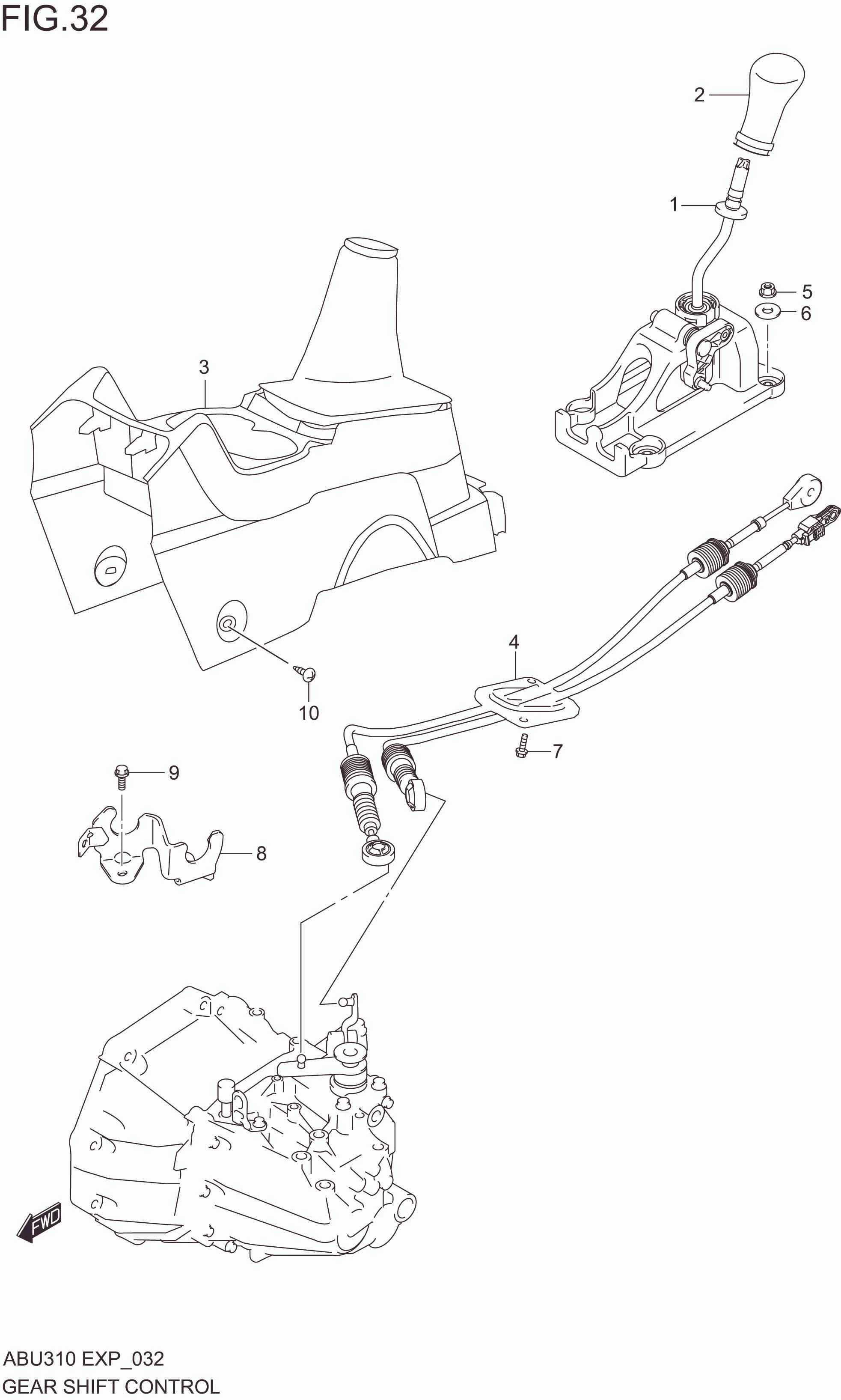

GEAR SHIFT CONTROL(5MT)

GEAR SHIFT CONTROL(5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 28101M62S00-000 LEVER S/ASSY,GEAR SHF CONT 1 Rp408.000
2 28113M62S01-5PK KNOB,GEAR SHIFT CONTROL 1 Rp61.500
3 28130M62S01-5PK BOOT ,SHIFT LEVER 1 Rp235.000
4-1 28300M62S00-000 CABLE ASSY,SHIFT & SELECT CONTR :K10B 1 Rp653.500 K10B
4-2 28300M53T20-000 CABLE ASSY,SHIFT & SELECT CONTR :K10C 1 Rp696.000 K10C
5 09159-08127-000 NUT 4 Rp11.000
6 09160-08151-000 WASHER 4 Rp16.500
7 02162-0620A-000 BOLT 2 Rp5.500
8-1 28390M67L20-000 BRACKET,T/M CONT CABLE R :K10B 1 Rp60.500 K10B
8-2 28390M62S20-000 BRACKET,T/M CONT CABLE R :K10C 1 Rp89.500 K10C
9 01550-0820A-000 BOLT 2 Rp5.500
10 03141-0516B-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
