S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT:RHD)MT TRANSMISSION GEAR(K10B)MT TRANSMISSION GEAR(K10C)MT TRANSMISSION CASE(K10B)MT TRANSMISSION CASE(K10C)GEAR SHIFT FORK (K10B:MT)AGS CLUTCH(5AGS)AGS TRANSMISSION GEARAGS TRANSMISSION CASEGEAR SHIFT FORK(K10B:AGS,K10C:MT,AGS)AGS ACTUATORGEAR SHIFT CONTROL(5MT)SELECT LEVER(5AGS)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (5AGS)

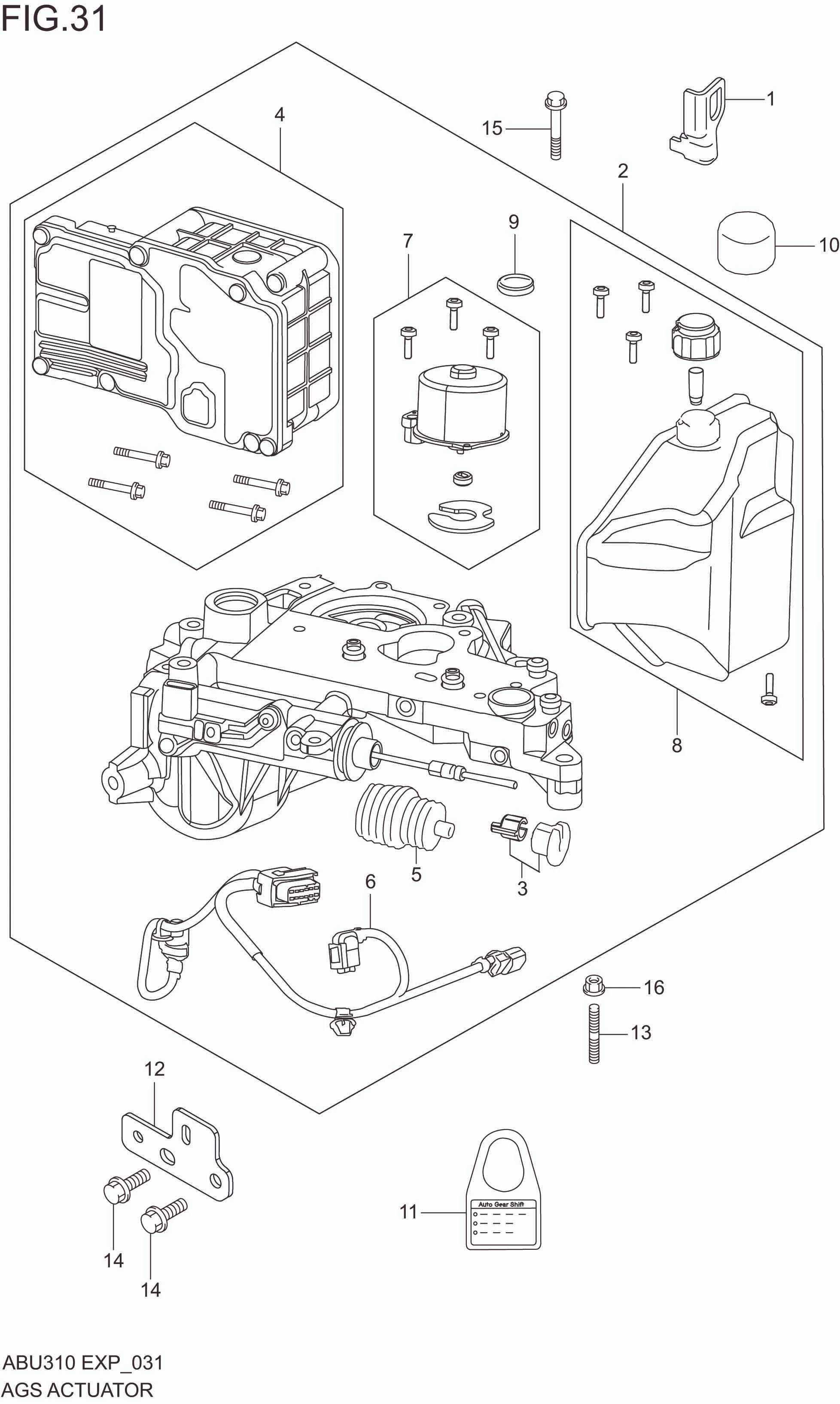

AGS ACTUATOR

AGS ACTUATOR
No No. Part Description Qty Price Per Pcs Remarks
1 24855M66RE0-000 HOOK,TRANSMISSION 1 Rp26.000
2-1 23100M62SF4-000 ACTUATOR ASSY R :K10B SEE NOTE 1 Rp35.608.000 K10B SEE NOTE
2-2 23100M62SG3-000
SUB: 23100M62SG2-000		 ACTUATOR ASSY R :K10C SEE NOTE 1 Rp34.372.000 K10C SEE NOTE
3 2641TM76ME0-000 .ANCHOR SET, CLUTCH ACTUATOR 1 Rp34.000
4-1 3880TM62SF0-000 .CONTROLLER SET,AGS R :K10B 1 Rp6.326.000 K10B
4-2 3880TM62SG0-000 .CONTROLLER SET,AGS R :K10C 1 Rp5.969.500 K10C
5 26424M76ME0-000 .BOOT,CLUTCH ACTUATOR 1 Rp166.000
6 36657M66RE0-000 .HARNESS ,ACTUATOR 1 Rp901.500
7 2280TM76ME0-000 .MOTOR SET,OIL PUMP 1 Rp1.062.500
8 2290TM66RE0-000 .TANK SET,OIL 1 Rp283.500
9 22914M76ME0-000 .O-RING, OIL TANK 1 Rp11.500
10 23151M76ME0-000 COVER,BREATHER 1 Rp16.000
11 23312M66RF0-000 TAG,AGS INFORMATION 1 Rp8.500
12 24895M66RE0-000 BRACKET,ACTUATOR 1 Rp12.500
13 DISCONTINUE
SUB: 01421-0845A-000		 STUD BOLT 2 -
14 01550-0820A-000 BOLT 2 Rp5.500
15 01550-0845A-000 BOLT 1 Rp18.000
16 08316-1008A-000 NUT 2 Rp3.500 NOTE:AGS ACTUATOR CHILD PARTS REPLACEMENT IS APPLICABLE AS PER PROCEDURE AND COUNTRY SPEC MENTIONED IN SERVICE MANUAL.

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
