S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTOR(K10B)STARTING MOTOR(K10C)GENERATOR(K10B)GENERATOR(K10C)BATTERYSPEEDOMETERHEAD LAMPREAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL (RHD)LOCK SETFRONT WINDOW WIPER (RHD)WINDOW WASHERAUDIO(N/TUNER)AUDIO(W/TUNER)

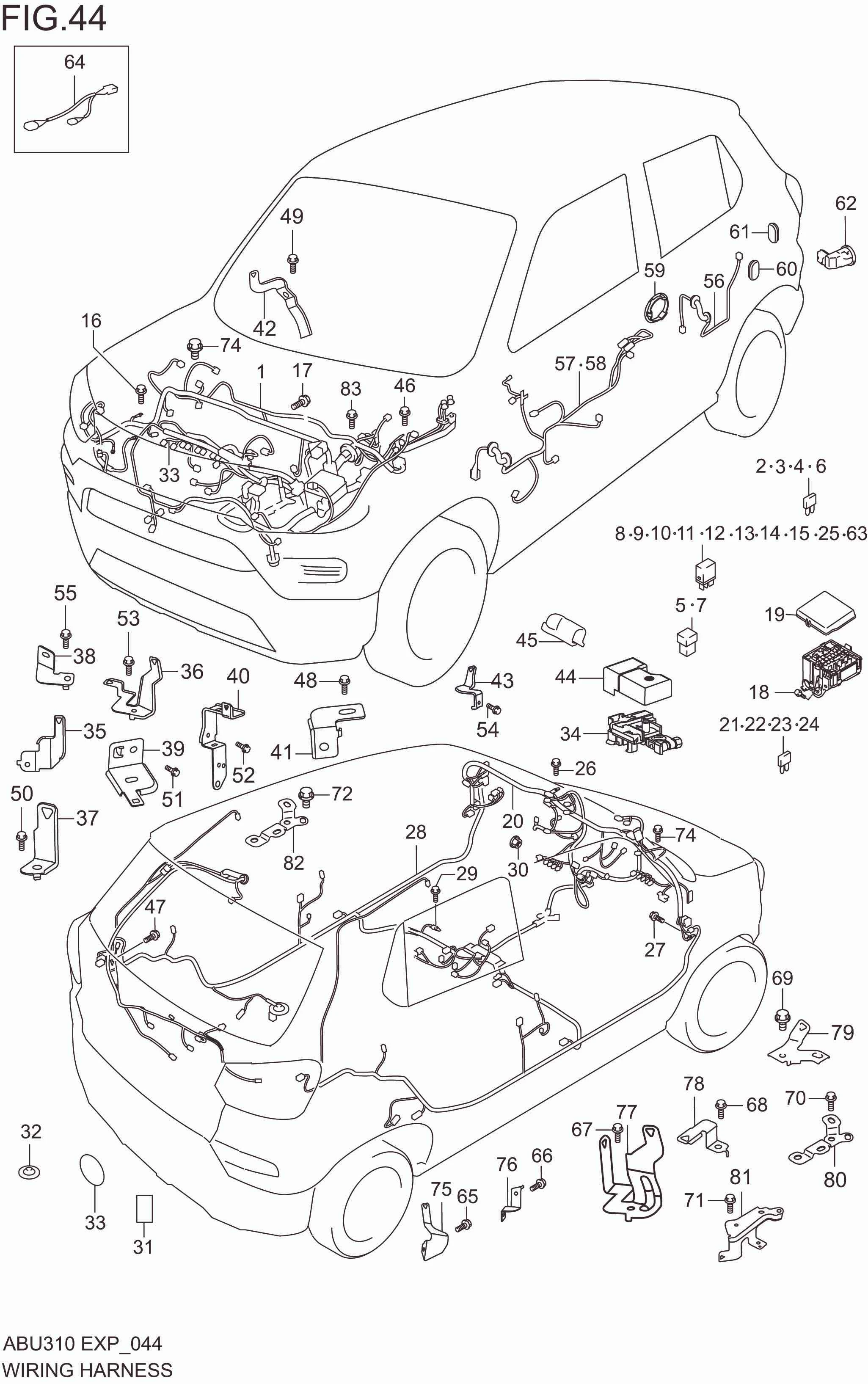

WIRING HARNESS

WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1-2 36610M62SL0-000 HARNESS ASSY, MAIN R :K10B:5MT 1 Rp5.344.000 K10B:5MT
1-1 36610M62SK0-000 HARNESS ASSY, MAIN R :K10B:5AGS 1 Rp4.611.000 K10B:5AGS
1-4 36910M62S90-000 HARNESS ASSY,MAIN R :K10C:5AGS 1 Rp5.636.500 K10C:5AGS
1-3 36910M62S40-000 HARNESS ASSY,MAIN R :K10C:5MT 1 Rp5.153.000 K10C:5MT
2 09481-10504-000 .FUSE (10A) 0 Rp12.500
3 09481-15504-000 .FUSE (15A) 0 Rp13.000
4 09481-25504-000 .FUSE (25A) 0 Rp17.500
5 09481M30402-000 .FUSE (30A) 0 Rp20.500
6 09481-30504-000 .FUSE (30A) 0 Rp15.000
7 09481M40403-000 .FUSE (40A) 0 Rp22.500
8 38860M76M00-000 .RELAY ASSY, ST 1 Rp58.500
9 38860M76M00-000 .RELAY ASSY, RDTR 1 Rp58.500
10 38860M76M00-000 .RELAY ASSY, HTR 1 Rp58.500
11 38860M76M00-000 .RELAY ASSY, HORN 1 Rp58.500
12 38860M76M00-000 RELAY ASSY, MAIN 1 Rp58.500
13 38860M76M00-000 RELAY ASSY, FUEL PUMP 1 Rp58.500
14 38860M76M00-000 RELAY, A/C R :W/AC 1 Rp58.500 W/AC
15 38860M76M00-000 RELAY ASSY,STARTER 2 1 Rp58.500
16 09115-06005-000 BOLT (6X16) 1 Rp14.000
17 01550M0612A-000 BOLT 1 Rp5.000
18 02162-0616A-000 BOLT 2 Rp3.000
19-1 36717M62S00-000 COVER, RELAY BOX R :K10B 1 Rp49.500 K10B
19-2 36717M62S10-000 COVER, RELAY BOX R :K10C 1 Rp42.500 K10C
20 36620M62SC0-000 HARNESS ASSY, INSTPN R :K10B 1 Rp2.443.000 K10B
21 09481-05501-000 .FUSE (5A) 0 Rp17.000
22 09481-10504-000 .FUSE (10A) 0 Rp12.500
23 09481-15504-000 .FUSE (15A) 0 Rp13.000
24 09481-20504-000 .FUSE (20A) 0 Rp14.500
25 09481-30403-000 .FUSE (30A) 0 Rp41.000
26 38860M76M00-000 .RELAY ASSY, RR DEF R :W/RR DEF 1 Rp58.500 W/RR DEF
27 02162-0612A-000 BOLT 1 Rp11.000
28-1 36630M62SD0-000 HARNESS ASSY, FLOOR R :K10B:5MT 1 Rp2.051.500 K10B:5MT
28-2 36630M62SF0-000 HARNESS ASSY, FLOOR R :K10B:5AGS 1 Rp2.251.000 K10B:5AGS
28-3 36930M62SJ0-000 HARNESS ASSY, FLOOR R :K10C:5MT:W/TUNER 1 Rp2.360.000 K10C:5MT:W/TUNER
28-4 36930M62SP0-000 HARNESS ASSY, FLOOR R :K10C:5AGS : W/TUNER 1 Rp2.625.500 K10C:5AGS : W/TUNER
29 09115-06005-000 BOLT (6X16) 2 Rp14.000
30 09159-08127-000 NUT 2 Rp11.000
31-2 36930M70F10-000 COVER, FLOOR HARNESS R :VENDOR 2 1 Rp4.000 VENDOR 2
31-1 36930M70F10-000 COVER, FLOOR HARNESS R :VENDOR 1 1 Rp4.000 VENDOR 1
32 36993M67L00-000 GROMMET, RR DEF WIRE R :W/RR DEF 2 Rp4.000 W/RR DEF
33-1 36650M62S10-000 HARNESS ASSY, ENG R :K10B:5MT 1 Rp2.450.000 K10B:5MT
33-2 36650M62S30-000 HARNESS ASSY, ENG R :K10B:5AGS 1 Rp3.584.000 K10B:5AGS
33-3 36650M62S90-000 HARNESS ASSY,ENG R :K10C:5MT 1 Rp4.533.500 K10C:5MT
33-4 36650M62SB0-000 HARNESS ASSY,ENG R :K10C:5AGS 1 Rp5.955.500 K10C:5AGS
34 36739M62S00-000 .FUSE, BATTERY 1 Rp258.500
35 36651M62S00-000 BRACKET, ENG HARN MT R :K10B:5MT 1 Rp10.000 K10B:5MT
36 36651M62S10-000 BRACKET, ENG HARN AGS R :K10B:5AGS 1 Rp13.500 K10B:5AGS
37 36651M62S20-000 BRACKET, ENG HARN AGS R :5AGS PROTECTOR 1 Rp7.500 5AGS
38 36651M62S30-000 BRACKET, ENG HARN BTRY R :K10B:5MT 1 Rp5.000 K10B:5MT
39 36651M62S40-000 BRACKET, ENG HARN 9 R :5AGS 1 Rp8.000 5AGS
40 36651M62S50-000 BRACKET, ENG HARN CYL HEAD R :K10B 1 Rp26.000 K10B
41 36651M62S60-000 BRACKET, ENG HARN HOOK R :K10B 1 Rp10.000 K10B
42 36651M69R10-000 BRACKET, ENG HARN 1 Rp16.500
43 36653M81P10-000 BRACKET, CABLE AGS SIDE R :5AGS 1 Rp12.000 5AGS
44 36694M62S01-000 COVER, BTRY TERMINAL R :RHD 1 Rp17.500 RHD
45 36997M68P10-000 COVER, TERMINAL 1 Rp65.000
46 09115-06005-000 BOLT (6X16) R :5MT 1 Rp14.000 5MT
47 01550-0616A-000 BOLT R :5MT 1 Rp3.500 5MT
48 01550-0616A-000 BOLT R :5AGS 1 Rp3.500 5AGS
49 01550M0612A-000 BOLT R :5MT 2 Rp5.000 5MT
50 01550M0612A-000 BOLT 2 Rp5.000
51 01550M0612A-000 BOLT R :5AGS 3 Rp5.000 5AGS
52 01550M0612A-000 BOLT R :5AGS 1 Rp5.000 5AGS
53 01550M0612A-000 BOLT 1 Rp5.000
54 01550M0612A-000 BOLT R :5AGS 1 Rp5.000 5AGS
55 01550M0612A-000 BOLT R :5MT 1 Rp5.000 5MT
56-1 36751M62S10-000 WIRE, RR DOOR R :K10B 2 Rp68.000 K10B
56-2 36751M62S20-000 WIRE, RR DOOR R :K10C 2 Rp75.000 K10C
57-1 36756M62S30-000 WIRE, DR DOOR R :K10B 1 Rp170.000 K10B
57-2 36756M62S50-000 WIRE, DR DOOR R :K10C:RHD 1 Rp280.000 K10C:RHD
58-1 36757M62S30-000 WIRE, SUB DOOR R :K10B 1 Rp150.000 K10B
58-2 36757M62S50-000 WIRE, SUB DOOR R :K10C:RHD 1 Rp258.000 K10C:RHD
59-1 36759M62S00-000 PROTECTOR, DOOR HARN R :K10B 2 Rp7.500 K10B
59-2 36759M62S10-000 PROTECTOR, DOOR HARN R :K10C 2 Rp8.000 K10C
60 36994M67L00-000 CAP, REAR DOOR HOLE B R :K10B:STD 2 Rp39.500 K10B:STD
61 36994M67L10-000 CAP, REAR DOOR HOLE D R :K10B:STD 2 Rp39.500 K10B:STD
62 37735M62S01-5PK
SUB: 37735M62S00-5PK		 SENSOR ASSY, PARK (BLACK) 2 Rp315.500
63 38860M76M00-000 RELAY ASSY, BACK UP LAMP R :5AGS 1 Rp58.500 5AGS
64 36691M62S10-000 WIRE, A/B R :W/PASSENGER AIRBAG OPT 1 Rp239.000 W/PASSENGER AIRBAG OPT
65 01550M0612A-000 BOLT R :K10C:5MT 1 Rp5.000 K10C:5MT
66 01550M0612A-000 BOLT R :K10C:5AGS 1 Rp5.000 K10C:5AGS
67 01550M0612A-000 BOLT R :K10C 1 Rp5.000 K10C
68 01550M0612A-000 BOLT R :K10C 1 Rp5.000 K10C
69 01550M0612A-000 BOLT R :K10C 1 Rp5.000 K10C
70 01550M0612A-000 BOLT R :K10C 1 Rp5.000 K10C
71 01550M0612A-000 BOLT R :K10C 1 Rp5.000 K10C
72 01550-0616A-000 BOLT R :K10C 2 Rp3.500 K10C
73 01550-0616A-000 BOLT R :K10C 1 Rp3.500 K10C
74 01550-0616A-000 BOLT R :K10C 1 Rp3.500 K10C
75 36651M53T40-000 BRACKET, ENG HARN MT R :K10C:5MT 1 Rp13.000 K10C:5MT
76 36651M53T50-000 BRACKET, ENG HARN OP R :K10C 1 Rp7.500 K10C
77 36651M53T60-000 BRACKET, ENG HARN AMT R :K10C:5AGS 1 Rp18.500 K10C:5AGS
78 36651M53T70-000 BRACKET, BTRY HARN R :K10C:5MT 1 Rp5.500 K10C:5MT
79 36651M68P10-000 BRACKET, ENG HARN MT RR R :K10C:5MT 1 Rp39.000 K10C:5MT
80 36651M68PC0-000 BRACKET, ENG HARN MT MDL R :K10C:5MT 1 Rp10.500 K10C:5MT
81 36651M81R00-000 BRACKET, ENG HARN CYL HEAD R :K10C 1 Rp30.000 K10C
82 36651M82SC0-000 BRACKET, ENG HARN MT MDL R :K10C:5MT 1 Rp8.500 K10C:5MT
83 09115-06005-000 BOLT (6X16) 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
