S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTOR(K10B)STARTING MOTOR(K10C)GENERATOR(K10B)GENERATOR(K10C)BATTERYSPEEDOMETERHEAD LAMPREAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL (RHD)LOCK SETFRONT WINDOW WIPER (RHD)WINDOW WASHERAUDIO(N/TUNER)AUDIO(W/TUNER)

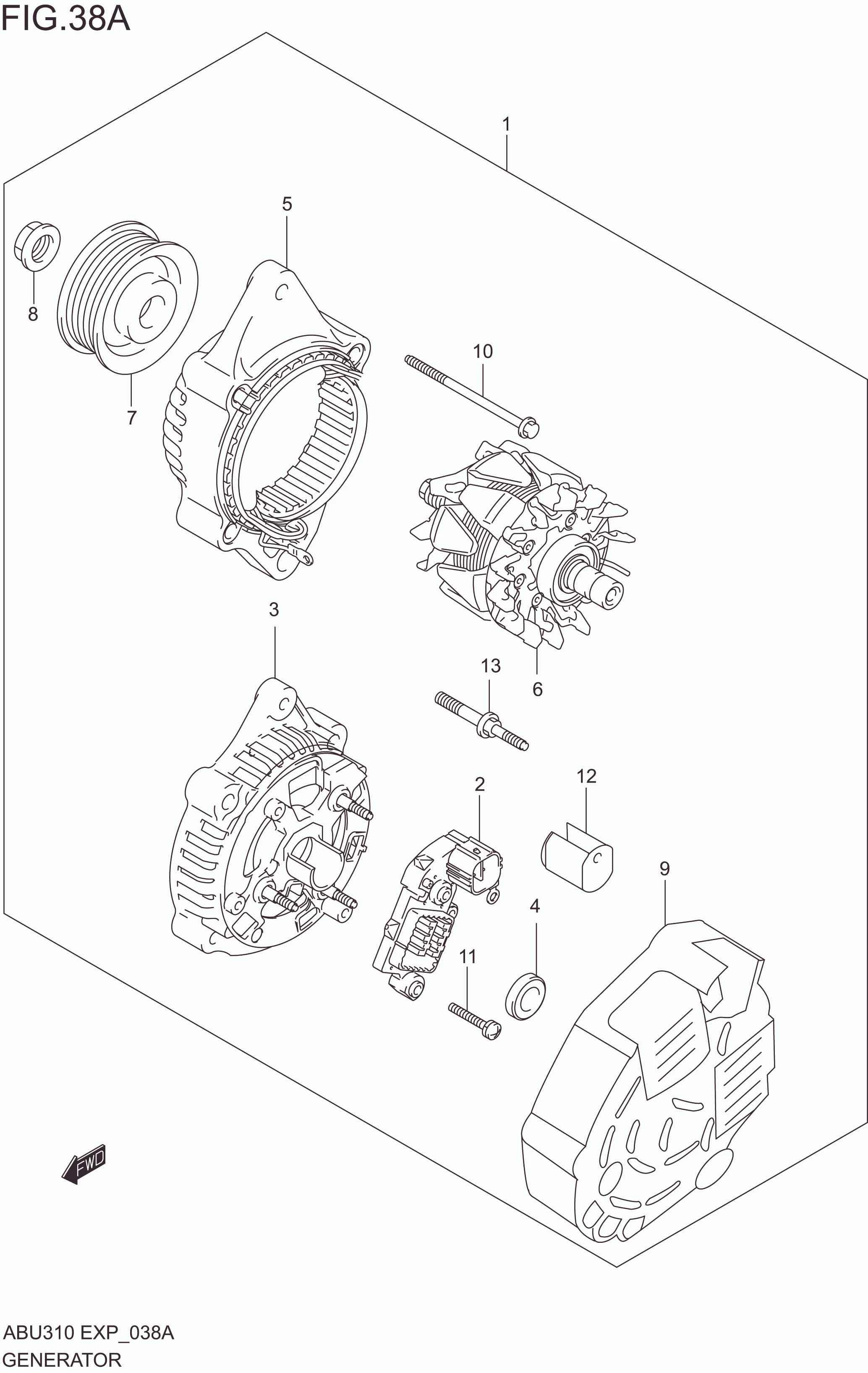

GENERATOR(K10C)

GENERATOR(K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 31400M81R00-000 GENERATOR ASSY 1 Rp3.298.000
2 32500M81R00-000 .REGULATOR ASSY WITH BRUSHS 1 Rp1.196.000
3 31621M81R00-000 .RECTIFIER BRIDGE ASSY 1 Rp1.709.500
4 31163M76M00-000 .RUBBER SEAL 1 Rp55.500
5 31581M81R00-000 .FRONT BRACKET ASSY 1 Rp1.047.500
6 31710M81R00-000 .ROTOR ASSY 1 Rp1.965.000
7 31171M81R00-000 .PULLEY 1 Rp283.500
8 31775M81R00-000 .PULLEY NUT 1 Rp44.000
9 31614M81R00-000 .REAR COVER 1 Rp129.500
10 31587M76M00-000 .ASSY SCREW 4 Rp12.000
11 31558M76M10-000 .M5 STUD REGULATOR 1 Rp20.000
12 31656M81R00-000 .SLIP RING GUIDE 1 Rp31.500
13 31558M76M00-000 .M5 SCREW REGULATOR 2 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
