S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTOR(K10B)STARTING MOTOR(K10C)GENERATOR(K10B)GENERATOR(K10C)BATTERYSPEEDOMETERHEAD LAMPREAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL (RHD)LOCK SETFRONT WINDOW WIPER (RHD)WINDOW WASHERAUDIO(N/TUNER)AUDIO(W/TUNER)

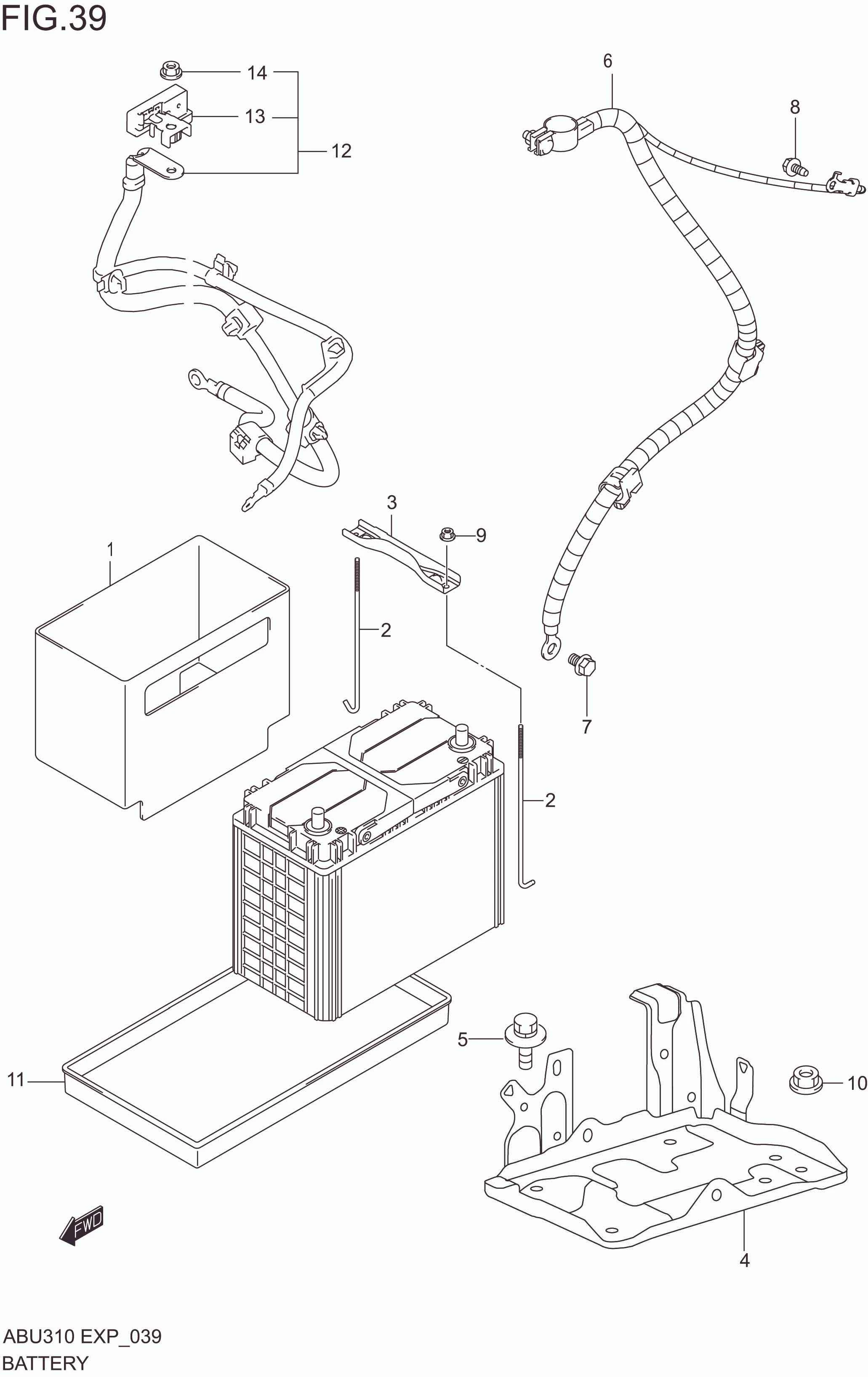

BATTERY

BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 33690M60M00-000 COVER ,BATTERY 1 Rp43.500
2 63461M75J00-000 BOLT,BATTERY 2 Rp7.000
3-1 72511-78000-000 BAND,BATTERY R :K10B 1 Rp9.000 K10B
3-2 72510-52R00-000 BAND,BATTERY R :K10C 1 Rp14.000 K10C
4-1 72520M62S00-000 TRAY ,BATTERY R :K10B 1 Rp205.500 K10B
4-2 72520M53T20-000 TRAY ,BATTERY R :K10C 1 Rp154.500 K10C
5 01550M0612A-000 BOLT 2 Rp5.000
6 33850M62S10-000 CABLE ,BTRY GND R :K10B:5AGS 1 Rp229.000 K10B:5AGS
7 09115-06005-000 BOLT 1 Rp14.000
8 01550-0816A-000 BOLT 1 Rp6.000
9 08316-1005A-000 NUT 2 Rp2.500
10 08316-1006A-000 NUT 2 Rp2.000
11 33660M53M00-000 TRAY ,BATTERY 1 Rp21.000
12-1 33880M62S40-000 CABLE SET,BTRY GND R :K10C:5MT 1 Rp464.000 K10C:5MT
12-2 33880M62S50-000 CABLE SET,BTRY GND R :K10C:5AGS 1 Rp464.000 K10C:5AGS
13 32810M68P00-000 .SENSOR ASSY,CURRENT R :K10C 1 Rp464.000 K10C
14 33887-71L00-000 .NUT R :K10C 1 Rp23.500 K10C

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
