S-Presso MC

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL ENGINE ELECTRICAL STARTING MOTOR(K10B)STARTING MOTOR(K10C)GENERATOR(K10B)GENERATOR(K10C)BATTERY SPEEDOMETER HEAD LAMP REAR LAMP ROOM LAMP WIRING HARNESS ELECTRICAL CONTROL (RHD)LOCK SET FRONT WINDOW WIPER (RHD)WINDOW WASHER AUDIO(N/TUNER)AUDIO(W/TUNER)

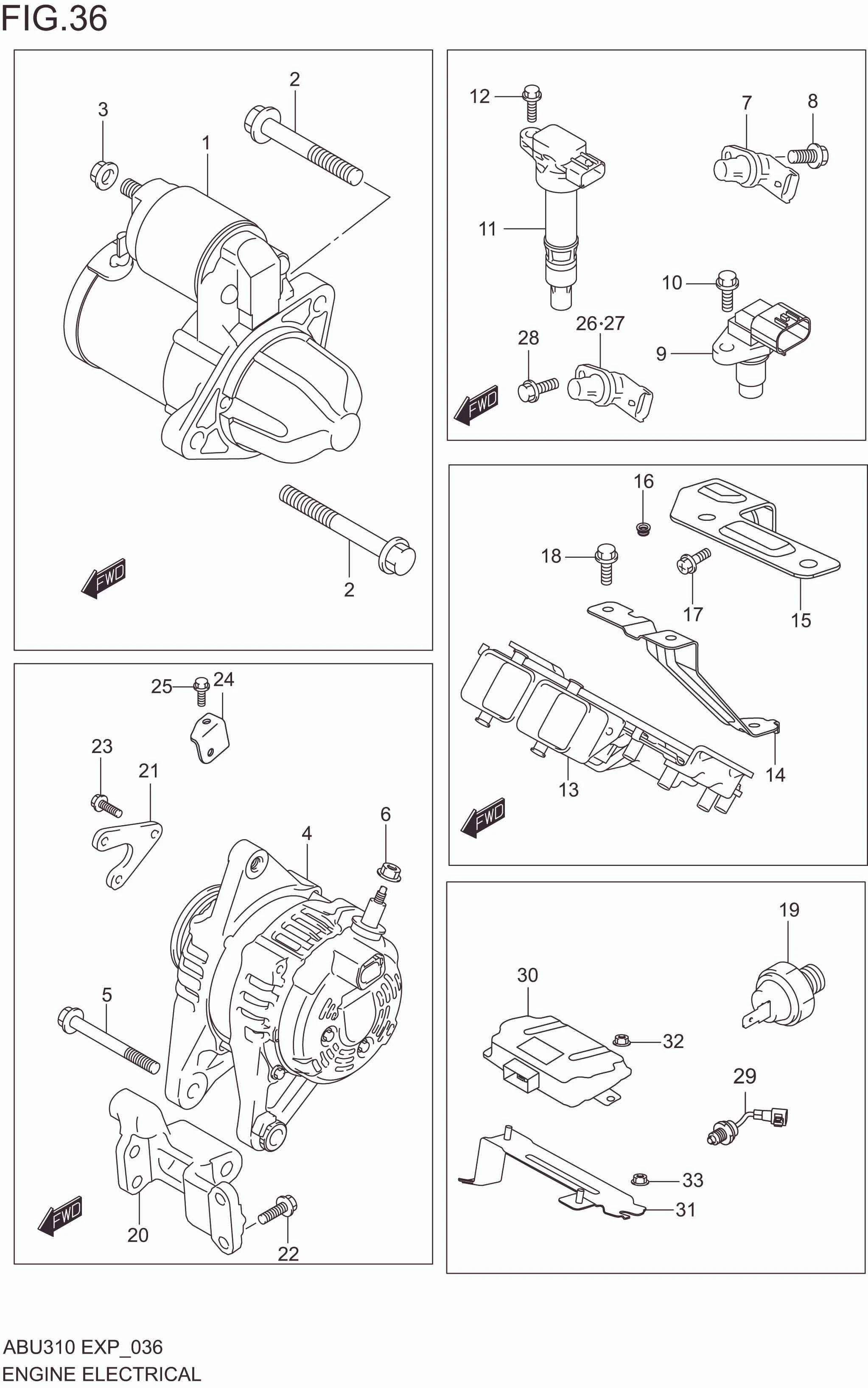

ENGINE ELECTRICAL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	31100M55T02-000 SUB: 31100M55T01-000	MOTOR ASSY,STARTING R :K10C	1	Rp4.574.000	K10C
1-1	31100M55R06-000 SUB: 31100M55R04-000	MOTOR ASSY,STARTING R :K10B	1	Rp2.743.000	K10B
2	01550-1060A-000	BOLT	2	Rp5.500
3	08316-1008A-000	NUT	1	Rp3.500
4-1	31400M69R00-000	GENERATOR ASSY R :K10B	1	Rp6.407.500	K10B
4-2	31400M81R00-000	GENERATOR ASSY R :K10C	1	Rp3.298.000	K10C
5	01550-1085A-000	BOLT	1	Rp7.000
6	08316-1006A-000	NUT	1	Rp2.000
7	33220M55K20-000	SENSOR ASSY,CAM POSITION R :K10B	1	Rp364.000	K10B
8	01550-0616A-000	BOLT R :K10B	1	Rp3.500	K10B
9	33220M53M00-000	SENSOR ASSY,POSITION	1	Rp883.500
10	09103M06317-000	BOLT,CKP SENSOR	1	Rp6.500
11-1	33400M68P20-000 SUB: 33400M68P00-000	COIL ASSY,IGNITION R :K10B	3	Rp597.500	K10B
11-2	33400M81R00-000	COIL ASSY,IGNITION R :K10C	3	Rp462.000	K10C
12-1	09135M06032-000	BOLT R :K10B	3	Rp9.000	K10B
12-2	01560-0625B-000	BOLT R :K10C	3	Rp23.000	K10C
13-1	33920M62S80-000	CONTROLLER ASSY,EPI R :K10B:5MT	1	Rp3.563.500	K10B:5MT
13-2	33920M62S90-000	CONTROLLER ASSY,EPI R :K10B:5AGS	1	Rp3.573.500	K10B:5AGS
13-3	33920M62SD0-000	CONTROLLER ASSY,EPI R :K10C:5MT	1	Rp3.787.000	K10C:5MT
13-4	33920M62SE0-000	CONTROLLER ASSY,EPI R :K10C:5AGS	1	Rp3.787.000	K10C:5AGS
14-2	33924M53T00-000	BRACKET,EPI CONT FR R :K10C	1	Rp16.500	K10C
14-1	33924M62S00-000	BRACKET,EPI CONT FR R :K10B	1	Rp17.000	K10B
15	33924M62S10-000	BRACKET,EPI CONT RR	1	Rp12.000
16	34955-70K00-000	BUSH,EPI BRKT	1	Rp8.500
17	02162-0616A-000	SCREW	1	Rp3.000
18	02162-0625A-000	SCREW	4	Rp3.500
19-1	37820M68K00-000	SWITCH ASSY,OIL PRESSURE R :K10B	1	Rp199.500	K10B
19-2	37820M54T00-000	SWITCH ASSY,OIL PRESSURE R :K10C	1	Rp199.500	K10C
20	11551M69R00-000	BRACKET,GENERATOR	1	Rp183.000
21	11561M68PA0-000	ARM,GEN BELT	1	Rp28.500
22	11564-68P00-000	BOLT,GENERATOR	1	Rp23.500
23	01550-0825A-000	BOLT,GENERATOR BRKT	4	Rp3.500
24	11562M66R01-000	ADJUSTER,GENERATOR	1	Rp26.500
25	11563-61M00-000	BOLT,GEN BELT ADJUSTING	1	Rp57.000
26	33220M68P00-000	SENSOR ASSY,EXH CAM POSN R :K10C	1	Rp505.500	K10C
27	33220M68P00-000	SENSOR ASSY,INTK CAM POSN R :K10C	1	Rp505.500	K10C
28	01550-0616A-000	BOLT R :K10C	2	Rp3.500	K10C
29	37710M81R00-000	SWITCH ASSY,NEUTRAL R :K10C:5MT	1	Rp1.077.500	K10C:5MT
30	33570M54T00-000	CONVERTER ASSY,DC/DC R :K10C	1	Rp1.210.500	K10C
31	33571M62S00-000	BRACKET,DC/DC CONVERTER R :K10C	1	Rp29.500	K10C
32	09159M06112-000	NUT R :K10C	2	Rp6.500	K10C
33	09159-08127-000	NUT R :K10C	2	Rp11.000	K10C
