S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTOR(K10B)STARTING MOTOR(K10C)GENERATOR(K10B)GENERATOR(K10C)BATTERYSPEEDOMETERHEAD LAMPREAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL (RHD)LOCK SETFRONT WINDOW WIPER (RHD)WINDOW WASHERAUDIO(N/TUNER)AUDIO(W/TUNER)

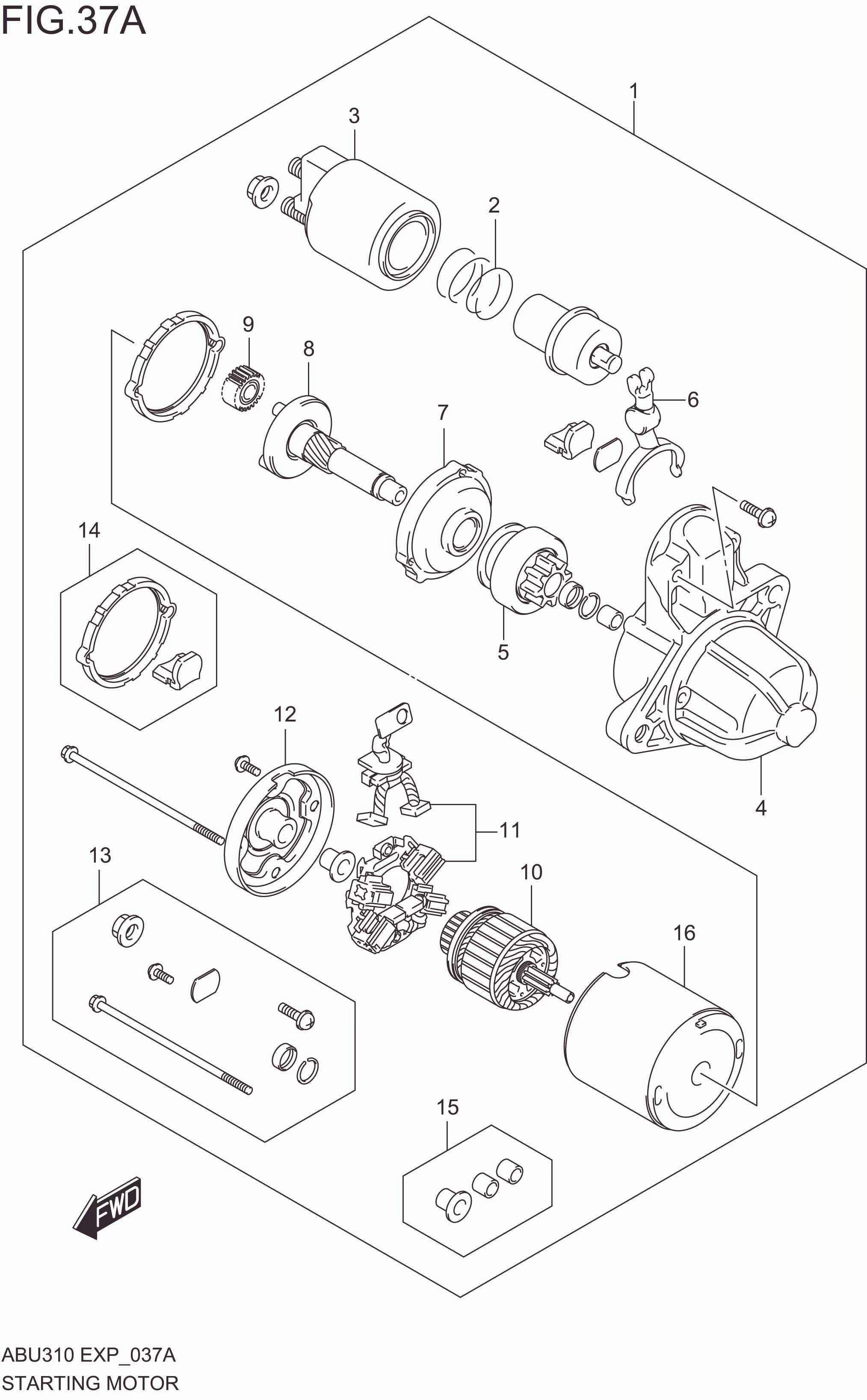

STARTING MOTOR(K10C)

STARTING MOTOR(K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 31100M55T02-000
SUB: 31100M55T01-000		 MOTOR ASSY,STARTING 1 Rp4.574.000
2 31195M71P00-000 .PLUNGER 1 Rp29.000
3 31220M55T01-000 .SOLENOID ASSY 1 Rp1.148.500
4 31150M55T00-000 .BRACKET ASSY 1 Rp646.500
5 31320M55T00-000 .DRIVE ASSY 1 Rp549.500
6 31191M55T00-000 .LEVER 1 Rp49.500
7 31143M55T00-000 .ANNULUS ASSY 1 Rp165.000
8 31341M55T00-000 .SHAFT ASSY 1 Rp439.500
9 31344M72R10-000 .PLANETARY GEAR ASSY 3 Rp296.500
10 31310M55T00-000 .ARMATURE ASSY 1 Rp726.500
11 31173M55T00-000 .BRUSH GEAR ASSY 1 Rp471.000
12 31170M55T00-000 .BRACKET ASSY 1 Rp238.000
13 31290M55T00-000 .FASTENER KIT 1 Rp228.500
14 31264M55T00-000 .SEALING KIT 1 Rp47.000
15 31152M55T00-000 .BUSH 1 Rp295.000
16 31110M55T00-000 .YOKE ASSY 1 Rp255.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
