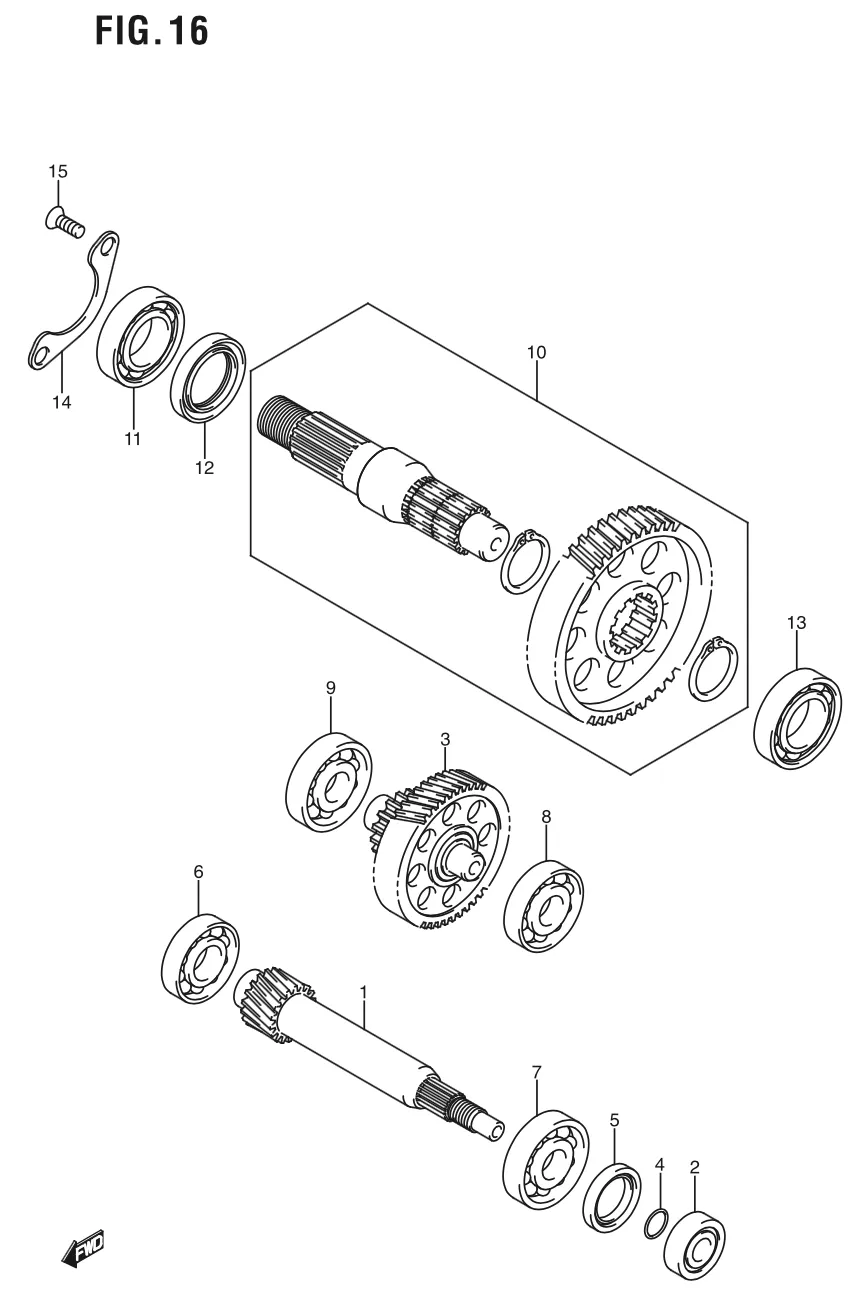

FIG. 16 TRANSMISSION (2)

FIG. 16 TRANSMISSION (2)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24131-09J00-000 SUB: 24131B09J00N000	SHAFT, DRIVE (NT:16)	1	Rp129.000
2	24132-09J00-000 SUB: 24132B09J00N000	BEARING, DRIVE SHAFT LH	1	Rp22.500
3	24150-09J10-000 SUB: 24150B09J00N000	SHAFT, IDLE (NT:44)	1	Rp156.500
4	09280-08L01-000 SUB: 09280B08L01N000	O RING (D:1.9,ID7.8)	1	Rp4.000
5	09283-17L02-000 SUB: 09283B17L02N000	OIL SEAL	1	Rp11.000
6	08110-60020-000 SUB: 08110B60020N000	BEARING	1	Rp43.000	RH
7	08110B62030N000	BEARING	1	Rp44.500	MIDDLE
8	08113-62017-000	BEARING	1	Rp23.500	LH
9	08113-62020-000 SUB: 08113B62020N000	BEARING	1	Rp30.500	RH
10	24140-09J00-000 SUB: 24140B09J00N000	SHAFT, REAR AXLE (NT:45)	1	Rp228.000
11	09262-22036-000 SUB: 09262B22036N000	BEARING (22X50X14)	1	Rp88.500	RH
12	09283-27L02-000 SUB: 09283B27L02N000	OIL SEAL	1	Rp10.500
13	08110B62030N000	BEARING	1	Rp44.500	LH
14	24751-09J00-000 SUB: 24751B07900N000	RETAINER, AXLE SHAFT BEARING	1	Rp13.500
15	02122-0616A-000 SUB: 02122B0616AN000	SCREW	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
