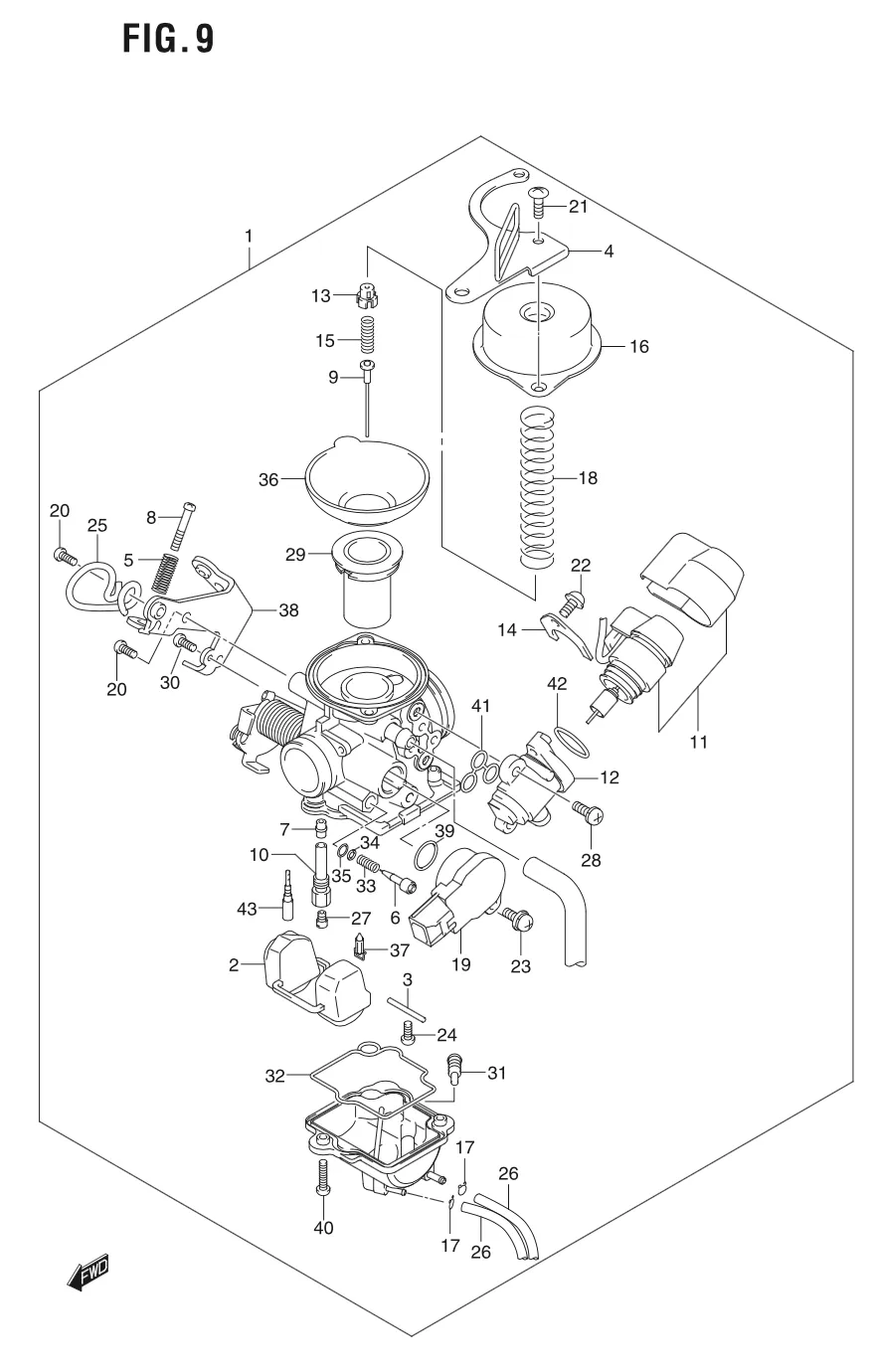

FIG. 9 CARBURETOR

No	No. Part	Description	Qty	Price Per Pcs
1	13200-09J00-000 SUB: 13200B09J00N000	CARBURETOR ASSY	1	Rp1.313.000
2	13240-47E00-000 SUB: 13240B47E00N000	?FLOAT ASSY	1	Rp33.500
3	13254-20010-000 SUB: 13254B20010N000	?PIN, FLOAT	1	Rp7.500
4	13270-09J00-000 SUB: 13270B09J00N000	?PLATE ASSY	1	Rp99.000
5	13271-24D00-000 SUB: 13271B24D00N000	?SPRING	1	Rp34.000
6	13279-09J00-000 SUB: 13279B09J00N000	?ADJUSTER	1	Rp22.000
7	13341-30H00-000 SUB: 13341B30H00N000	?JET, NEEDLE	1	Rp24.000
8	13374-85000-000 SUB: 13374B85000N000	?SCREW	1	Rp22.000
9	13383-09J00-000 SUB: 13383B09J00N000	?NEEDLE, JET	1	Rp43.500
10	13385-09J00-000 SUB: 13385B09J00N000	?HOLDER, JET	1	Rp192.000
11	13411-09J00-000 SUB: 13411B09J00N000	?PLUNGER ASSY	1	Rp526.000
12	DISCONTINUE SUB: 13412B09J00N000	?STARTER BODY ASSY	1	-
13	13418-12F40-000 SUB: 13418B12F40N000	?HOLDER	1	Rp12.500
14	15714-41H00-000 SUB: 13421B41H00N000	?STAY	1	Rp13.500
15	13481-45H00-000 SUB: 13481B45H00N000	?SPRING	1	Rp8.500
16	13502-36H10-000 SUB: 13502B36H10N000	?COVER, DIAPHRAGM	1	Rp30.500
17	13259-98010-000 SUB: 13529B98010N000	?CLIP	2	Rp9.500
18	13573-36H10-000 SUB: 13573B36H10N000	?SPRING	1	Rp23.500
19	13580-09J00-000 SUB: 13580B09J00N000	?SENSOR	1	Rp185.500
20	DISCONTINUE SUB: 13602B05088N000	?SCREW	2	-
21	13602-05108-000 SUB: 13602B05108N000	?SCREW	3	Rp8.500
22	DISCONTINUE SUB: 13602B55A00N000	?SCREW	1	-
23	13605-09J00-000 SUB: 13605B09J00N000	?SCREW	1	Rp9.500
24	DISCONTINUE SUB: 13614B89J00N000	?SCREW	1	-
25	DISCONTINUE SUB: 13672B09J00N000	?CLIP	1	-
26	DISCONTINUE SUB: 13684B05320N000	?HOSE	2	-
27	09491-23012-000 SUB: 09491B23012N000	?JET, MAIN(115)	1	Rp18.000
28	02112-35127-000 SUB: 02112B35127N000	?SCREW	2	Rp9.500
29	13500-36H10-000 SUB: 13500B36H10N000	?PISTON VALVE ASSY	1	Rp126.000
30	02112-04083-000 SUB: 02112B04083N000	?SCREW	1	Rp7.500
31	13247-09G10-000 SUB: 13247B09G10N000	?SCREW	1	Rp21.000
32	13258-23F00-000 SUB: 13258B23F00N000	?O RING	1	Rp13.500
33	13268-47070-000 SUB: 13268B47070N000	?SPRING	1	Rp8.000
34	13291-29900-000 SUB: 13291B29900N000	?WASHER	1	Rp6.500
35	13295-29900-000 SUB: 13295B29900N000	?O RING	1	Rp8.000
36	13507-09J00-000 SUB: 13507B09J00N000	?DIAPHRAGM	1	Rp188.500
37	13551-13H00-000 SUB: 13551B13H00N000	?NEEDLE ASSY	1	Rp101.000
38	DISCONTINUE SUB: 13565B09J00N000	?BRACKET	1	-
39	13575-29G00-000 SUB: 13575B29G00N000	?O RING	1	Rp18.000
40	13602-42A20-000 SUB: 13602B42A20N000	?SCREW	3	Rp7.000
41	13258-46G00-000 SUB: 13258B46G00N000	?O RING	1	Rp8.000
42	13278-41H00-000 SUB: 13278B41H00N000	?O RING	1	Rp9.500
43	09492-09J00-000 SUB: 09492B09J00N000	?JET PILOT #12.5	1	Rp182.500
