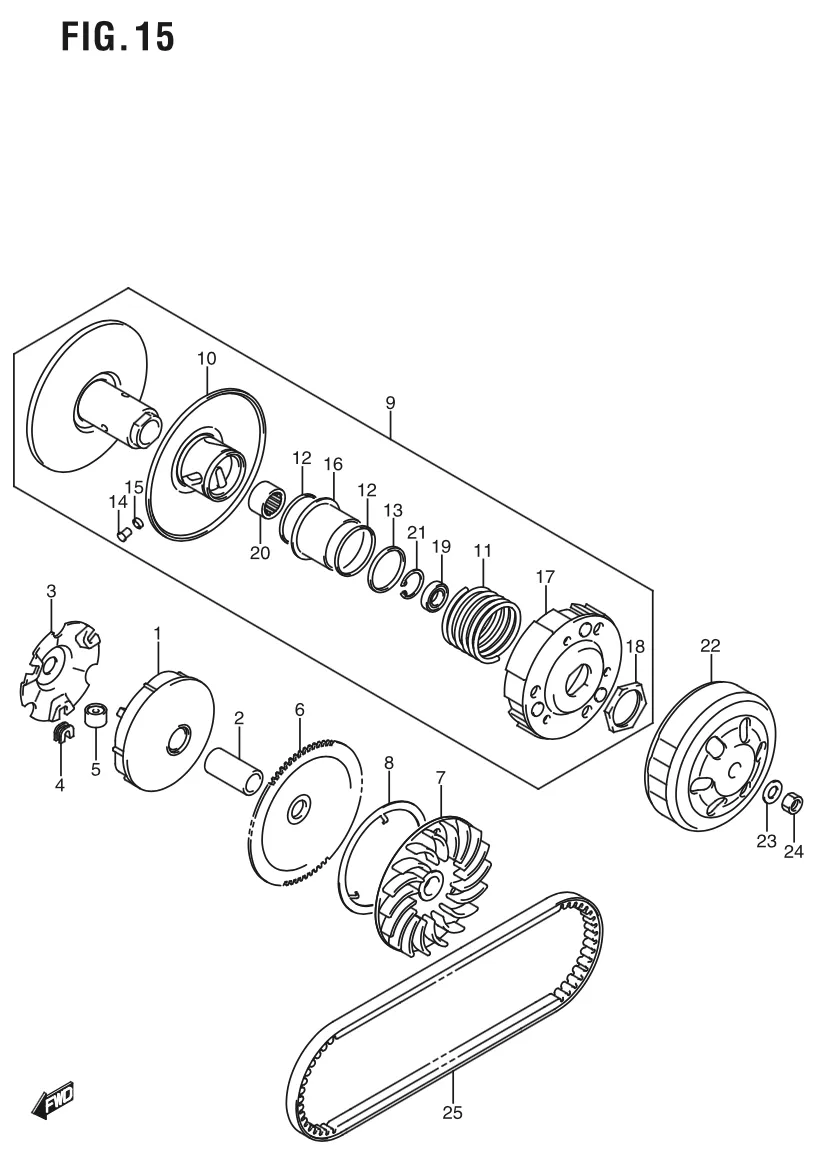

FIG. 15 TRANSMISSION (1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21120-09J10-000 SUB: 21120B09J00N000	FACE, MOVABLE DRIVE	1	Rp59.000
2	21125-09J00-000 SUB: 21125B09J00N000	SPACER, MOVABLE DRIVE	1	Rp26.500
3	21431-09J00-000 SUB: 21431B09J00N000	PLATE, MOVABLE DRIVE	1	Rp26.500
4	21481-09J00-000 SUB: 21481B09J00N000	DAMPER, MOVABLE DRIVE PLATE	3	Rp12.000
5	21650-09J00-000 SUB: 21650B09J00N000	ROLLER, MOVABLE DRIVE	6	Rp14.000
6	21111-09J00-000 SUB: 21111B09J00N000	FACE, FIXED DRIVE (NT:70)	1	Rp76.000
7	21113-09J00-000 SUB: 21113B09J00N000	FAN, FIXED DRIVE	1	Rp52.500
8	21114-09J00-000 SUB: 21114B09J00N000	PLATE, FIXED DRIVE	1	Rp15.500
9	21200-09J01-000 SUB: 21200B09J00N000	FACE ASSY, DRIVEN	1	Rp564.000
10	21240-09J01-000 SUB: 21240B09J00N000	?FACE, MOVABLE DRIVEN	1	Rp98.500
11	21243-09J00-000 SUB: 21243B09J00N000	?SPRING, MOVABLE DRIVEN	1	Rp39.000
12	21245-33G00-000 SUB: 21245B33G00N000	?O-RING, MOVABLE DRIVEN	2	Rp12.500
13	09284-34003-000 SUB: 09284B34003N000	?SEAL, MOVABLE DRIVEN OIL	2	Rp21.500
14	21248-33G00-001 SUB: 21248B33G00N000	?PIN, MOVABLE DRIVEN	3	Rp12.500
15	21249-33G00-000 SUB: 21249B33G00N000	?SPACER, MOVABLE DRIVEN PIN	3	Rp4.500
16	21471-09J00-000 SUB: 21471B03A11N000	?SHEET, MOVABLE DRIVEN	1	Rp14.000
17	21501-09J00-000 SUB: 21501B09J00N000	?CLUTCH ASSY, SHOE(NA)	1	Rp149.500
18	09140-28004-000 SUB: 09140B28004N000	?NUT, SHOE CLUTCH	1	Rp8.000
19	09262-12018-000 SUB: 09262B12018N000	?BEARING (12X24X6)	1	Rp40.000	LH
20	09263-17042-000 SUB: 09263B17042N000	?BEARING (17X25X18)	1	Rp40.000	RH
21	09381-24005-000 SUB: 09381B24005N000	?CIRCLIP	1	Rp8.000
22	21220-09J00-000 SUB: 21220B09J00N000	HOUSING, CLUTCH	1	Rp113.000
23	21223-09J00-000 SUB: 21223B09J00N000	WASHER, CLUTCH HOUSING	1	Rp10.000
24	08310-0010A-000 SUB: 08310B0010AN000	NUT	1	Rp3.500
25	27601-09J20-000 SUB: 27601B09J00N000	V-BELT, DRIVE	1	Rp138.000
