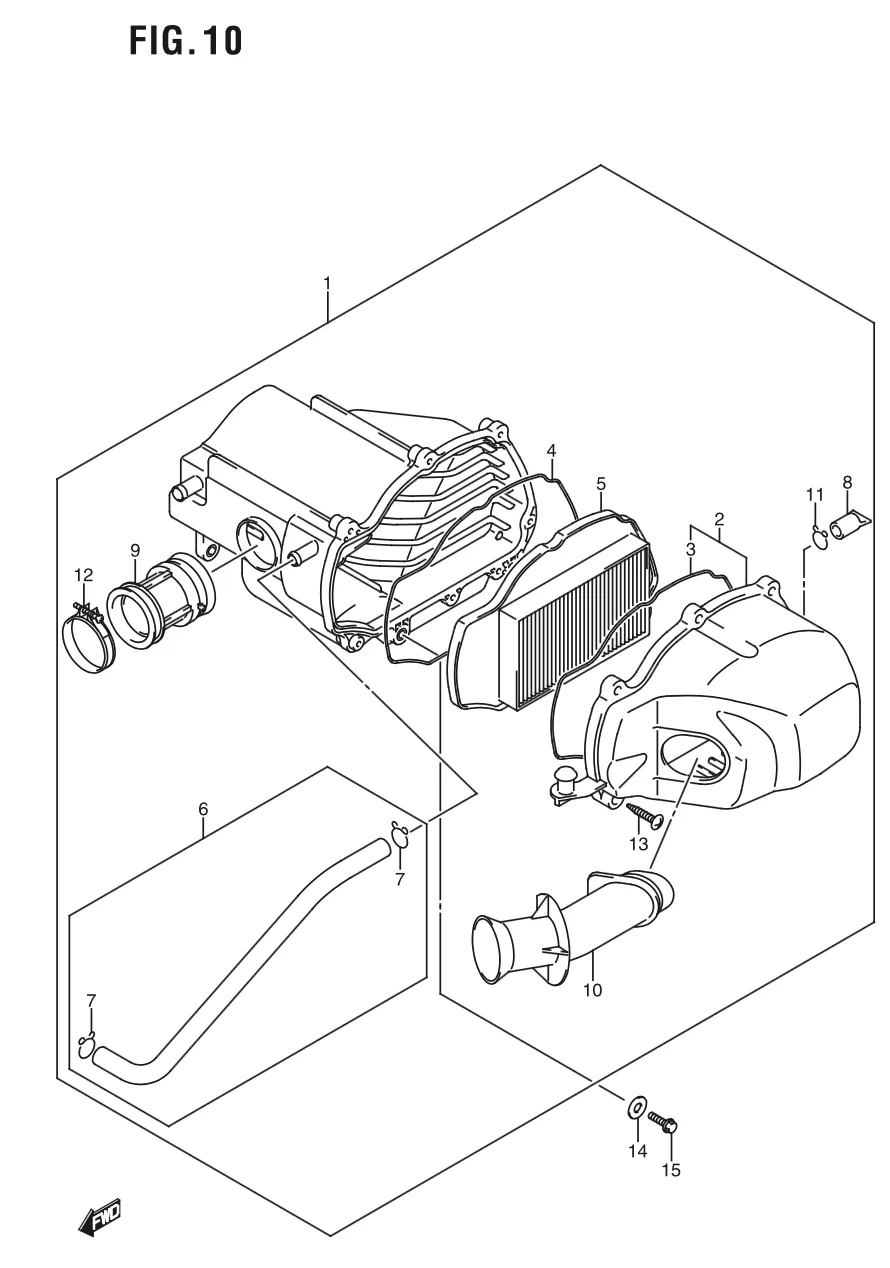

FIG. 10 AIR CLEANER

FIG. 10 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-09J00-000
SUB: 13700B09J00N000		 CLEANER ASSY, AIR 1 Rp211.000
2 13740-09J00-000
SUB: 13740B09J00N000		 ?CAP, AIR CLEANER 1 Rp29.000
3 13746-09J00-000
SUB: 13746B09J00N000		 ??GASKET 1 Rp7.000
4 13746-09J00-000
SUB: 13746B09J00N000		 ?GASKET 1 Rp7.000
5 13780-09J00-000
SUB: 13780B09J00N000		 ?FILTER ASSY, AIR CLEANER 1 Rp44.500
6 13850-09J00-000
SUB: 13850B09J00N000		 ?TUBE,BREATHER 1 Rp18.000
7 09401-13409-000
SUB: 09401B13409N000		 ??CLIP 2 Rp8.500
8 13871-10J00-000
SUB: 13871B10J00N000		 ?PLUG,DRAIN 2 Rp4.000
9 13881-09J00-000
SUB: 13881B09J00N000		 ?TUBE,OUTLET 1 Rp27.500
10 13891-09J00-000
SUB: 13891B09J00N000		 ?TUBE,INLET 1 Rp35.500
11 13824-18910-000
SUB: 13824B18910N000		 ?CLIP 2 Rp3.500
12 09402-44208-000
SUB: 09402B44208N000		 ?CLAMP 1 Rp8.000
13 03541-0525A-000
SUB: 03541B0525AN000		 ?SCREW 7 Rp3.500
14 09160-06028-000
SUB: 09160B06028N000		 WASHER (6.5X18X1) 3 Rp3.500
15 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 3 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
