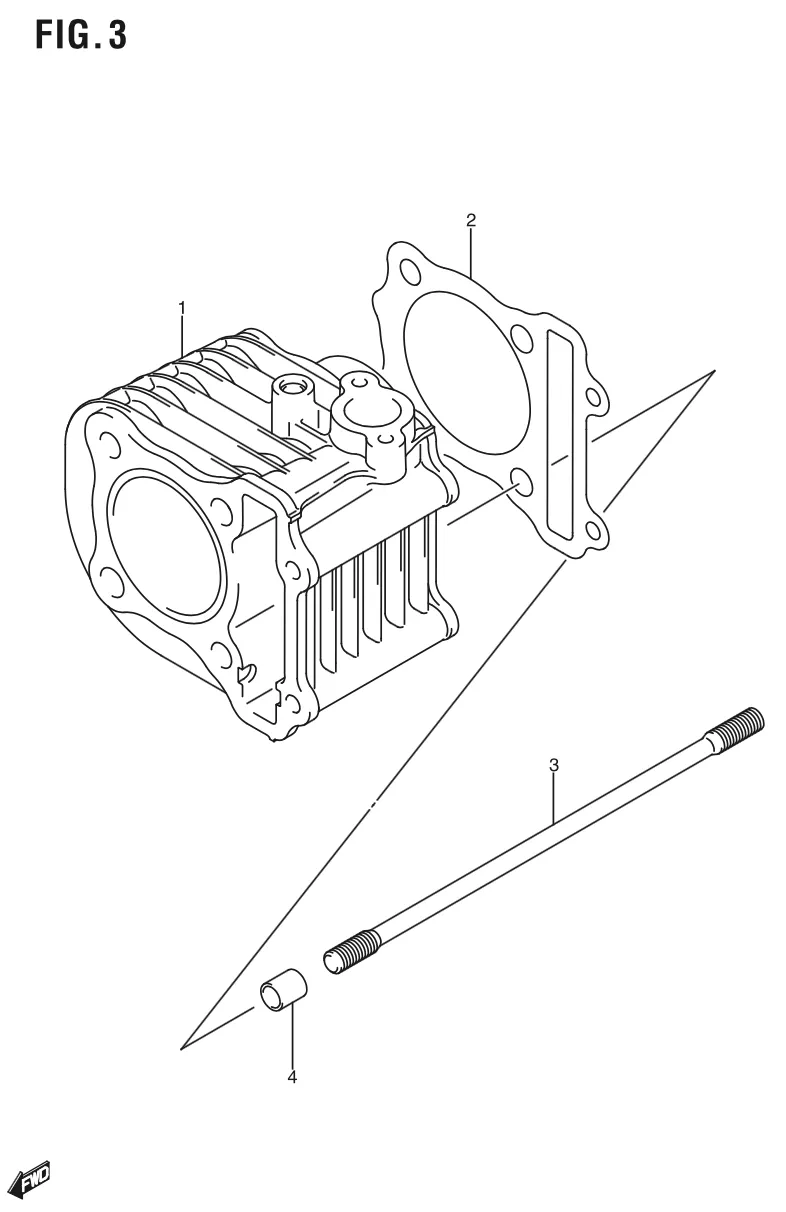

FIG. 3 CYLINDER

FIG. 3 CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11210-09J10-0F0 SUB: 11210B09J00N0F0	CYLINDER	1	Rp381.500
2	11241-09J00-000 SUB: 11241B09J00N000	GASKET, CYLINDER	1	Rp6.500
3	09108-08272-000 SUB: 09108B08272N000	STUD BOLT	4	Rp26.500
4	09206-10016-000 SUB: 09206B10016N000	PIN (8.2X10X13)	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
