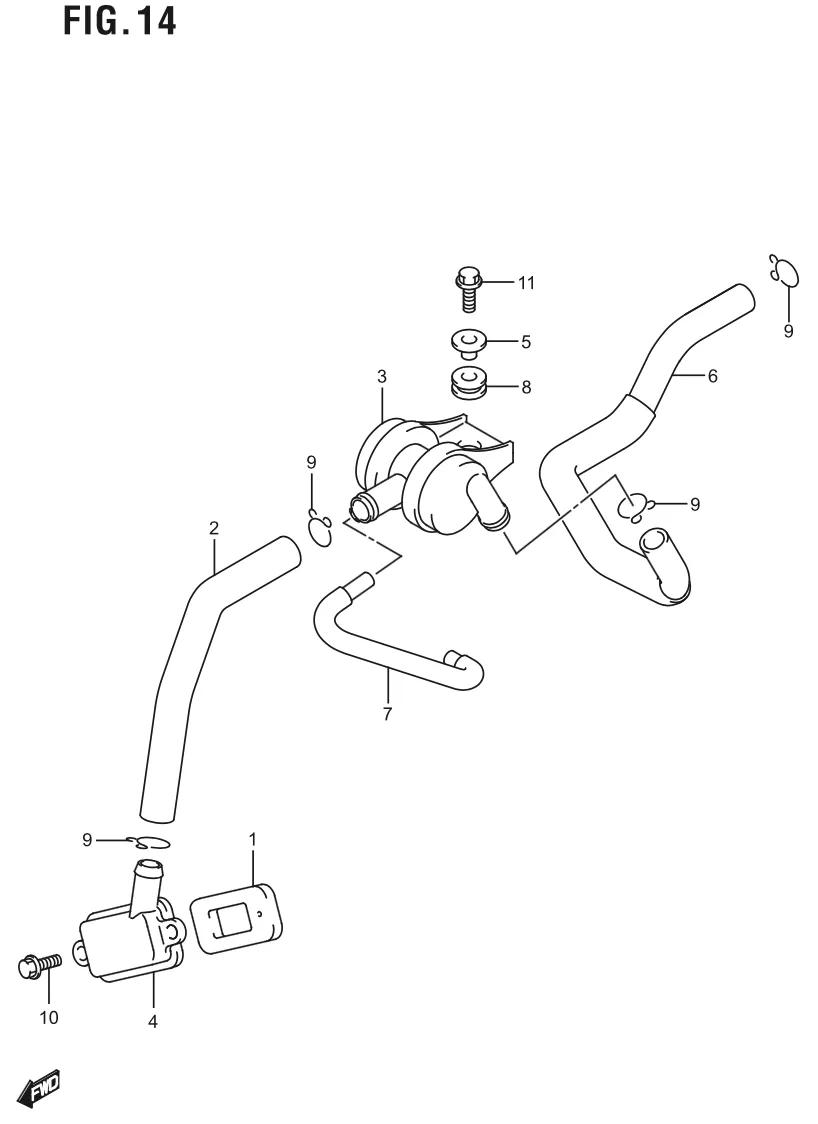

FIG. 14 2ND AIR

FIG. 14 2ND AIR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	18450-06G10-000 SUB: 18450B41H00N000	VALVE ASSY, 2ND AIR REED	1	Rp61.000
2	DISCONTINUE SUB: 18461B09J00N000	HOSE, 2ND AIR VALVE	1	-
3	18510-09J00-000 SUB: 18510B09J00N000	VALVE ASSY, AIR CUT	1	Rp106.000
4	18531-09J30-000 SUB: 18531B09J00N000	COVER, 2ND AIR REED VALVE	1	Rp17.500
5	18630-09J00-000 SUB: 18630B09J00N000	SPACER, 2ND AIR VALVE SPRT	1	Rp6.500
6	DISCONTINUE SUB: 18711B09J00N000	HOSE, 2ND AIR CLNR	1	-
7	DISCONTINUE SUB: 18762B09J00N000	HOSE, 2ND AIR VALVE VACUUM	1	-
8	09320-07014-000 SUB: 09320B07014N000	CUSHION	1	Rp4.500
9	09401-15101-000 SUB: 09401B15101N000	CLIP	4	Rp3.000
10	01547-0616A-000 SUB: 01547B0616AN000	BOLT	2	Rp6.500
11	01547-0620B-000 SUB: 01547B0620AN000	BOLT	1	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
