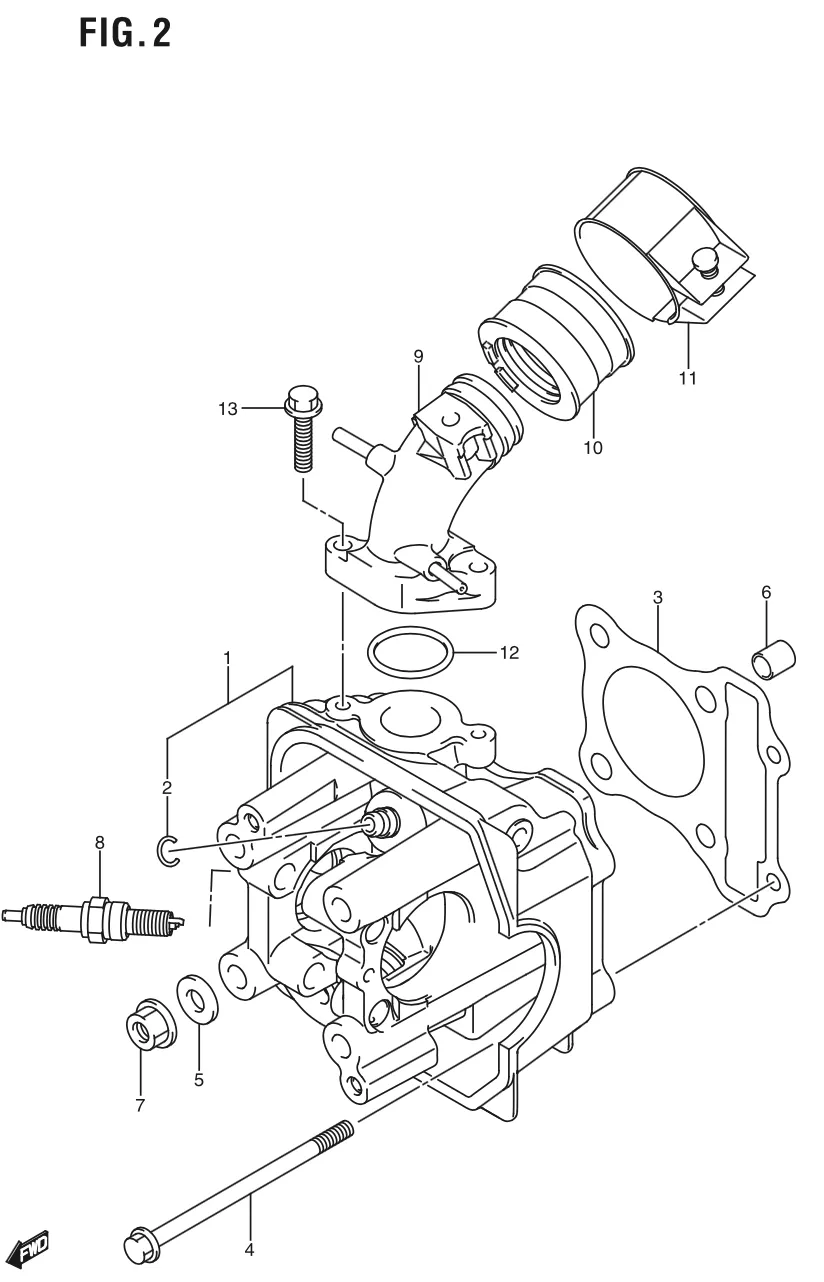

FIG. 2 CYLINDER HEAD

FIG. 2 CYLINDER HEAD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 11110B09J00N000	HEAD, CYLINDER	1	-
2	09381-10004-000 SUB: 09381B10004N000	?SNAP RING	2	Rp3.000
3	11141-09J10-000 SUB: 11141B09J00N000	GASKET, CYLINDER HEAD	1	Rp17.500
4	09103-06501-000 SUB: 09103B06501N000	BOLT (6X100)	2	Rp9.000
5	09160-08164-000 SUB: 09160B08164N000	WASHER (8.5X18X2.3)	4	Rp6.500
6	09206-10016-000 SUB: 09206B10016N000	PIN (8.2X10X13)	2	Rp3.500
7	08316-1008A-000 SUB: 08316B1008AN000	NUT	4	Rp3.500
8-3	09482-00620-000 SUB: 09482B00620N000	PLUG, SPARK(NGK,CPR6EA-9)	1	Rp29.000	OPT
8-6	09482-00628-000 SUB: 09482B00628N000	PLUG, SPARK(DENSO,U24EPR9)	1	Rp20.500	OPT
8-5	09482-00626-000 SUB: 09482B00626N000	PLUG, SPARK(DENSO,U20EPR9)	1	Rp20.500	OPT
8-4	09482-00622-000 SUB: 09482B00622N000	PLUG, SPARK(NGK,CPR8EA-9)	1	Rp24.500	OPT
8-2	09482-00627-000 SUB: 09482B00627N000	PLUG, SPARK(DENSO,U22EPR9)	1	Rp17.000
8-1	09482-00621-000 SUB: 09482B00621N000	PLUG, SPARK(NGK,CPR7EA-9)	1	Rp24.000
9	13110-09J00-000 SUB: 13110B09J00N000	PIPE, INTAKE NO.1	1	Rp82.000
10	13121-09J00-000 SUB: 13121B09J00N000	PIPE, INTAKE NO.2	1	Rp17.500
11	13170-09J00-000 SUB: 13170B09J00N000	CLAMP, INTAKE PIPE	1	Rp12.500
12	09280-26011-000 SUB: 09280B26011N000	O RING (D:2.4,ID:25.7)	1	Rp8.000
13	01547-0625A-000 SUB: 01547B0625AN000	BOLT	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
