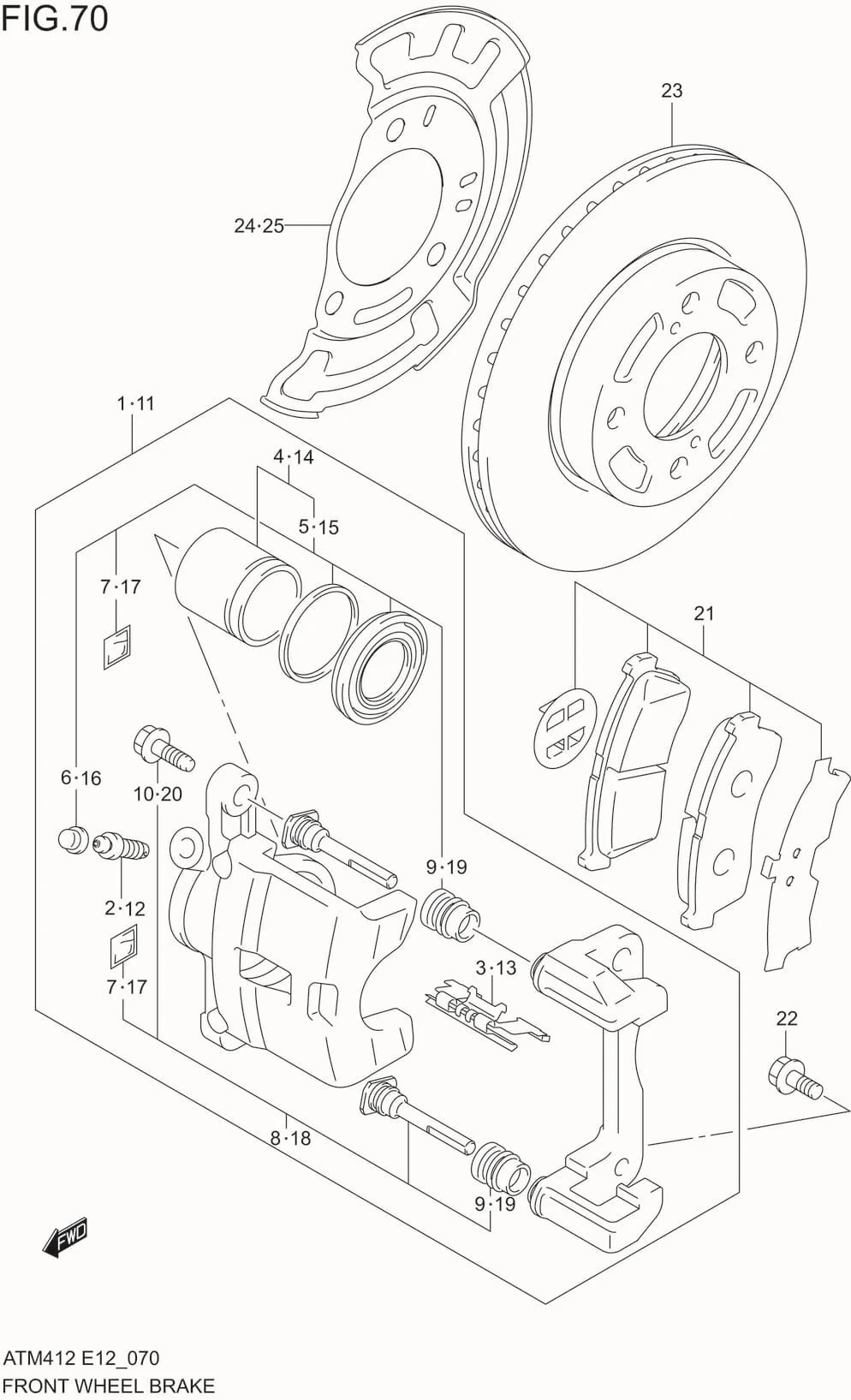

FIG.70 FRONT WHEEL BRAKE

FIG.70 FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55101M66R00-000 CALIPER ASSY, FRONT BRAKE RH 1 Rp1.962.500
2 55151M77P00-000 .PLUG, BLEEDER 1 Rp19.000
3 55234M66R00-000 .CLIP 2 Rp21.000
4 55830M66R00-000 .PISTON/SEAL SET 1 Rp327.500
5 55840M66R00-000 ..SEAL SET 1 Rp152.500
6 55156M77P00-000 ...CAP, BLEEDER PLUG 1 Rp9.000
7 DISCONTINUE
SUB: 99000M77P00-000		 ...GREASE 1 -
8 55850M66R00-000 .SLIDING PIN SET 1 Rp172.000
9 55201M66R00-000 ..BOOT, PIN 2 Rp15.000
10 55206M77P00-000 ..BOLT, PIN 2 Rp10.000
11 55102M66R00-000 CALIPER ASSY, FRONT BRAKE LH 1 Rp1.962.500
12 55151M77P00-000 .PLUG, BLEEDER 1 Rp19.000
13 55235M66R00-000 .CLIP 2 Rp21.000
14 55830M66R00-000 .PISTON/SEAL SET 1 Rp327.500
15 55840M66R00-000 ..SEAL SET 1 Rp152.500
16 55156M77P00-000 ...CAP, BLEEDER PLUG 1 Rp9.000
17 DISCONTINUE
SUB: 99000M77P00-000		 ...GREASE 1 -
18 55850M66R00-000 .SLIDING PIN SET 1 Rp172.000
19 55201M66R00-000 ..BOOT, PIN 2 Rp15.000
20 55206M77P00-000 ..BOLT, PIN 2 Rp10.000
21 55810M66R00-000 PAD SET 1 Rp543.500
22 55164M74L00-000 BOLT, BRAKE CALIPER 4 Rp17.000
23 55311M66R00-000 DISC, FRONT BRAKE 2 Rp318.000
24-1 55321M66R00-000 COVER, BRAKE DISC DUST RH 1 Rp24.000
24-2 55321M66R10-000 COVER, BRAKE DISC DUST RH 1 Rp27.500
25-1 55322M66R00-000 COVER, BRAKE DISC DUST LH 1 Rp24.000
25-2 55322M66R10-000 COVER, BRAKE DISC DUST LH 1 Rp27.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
