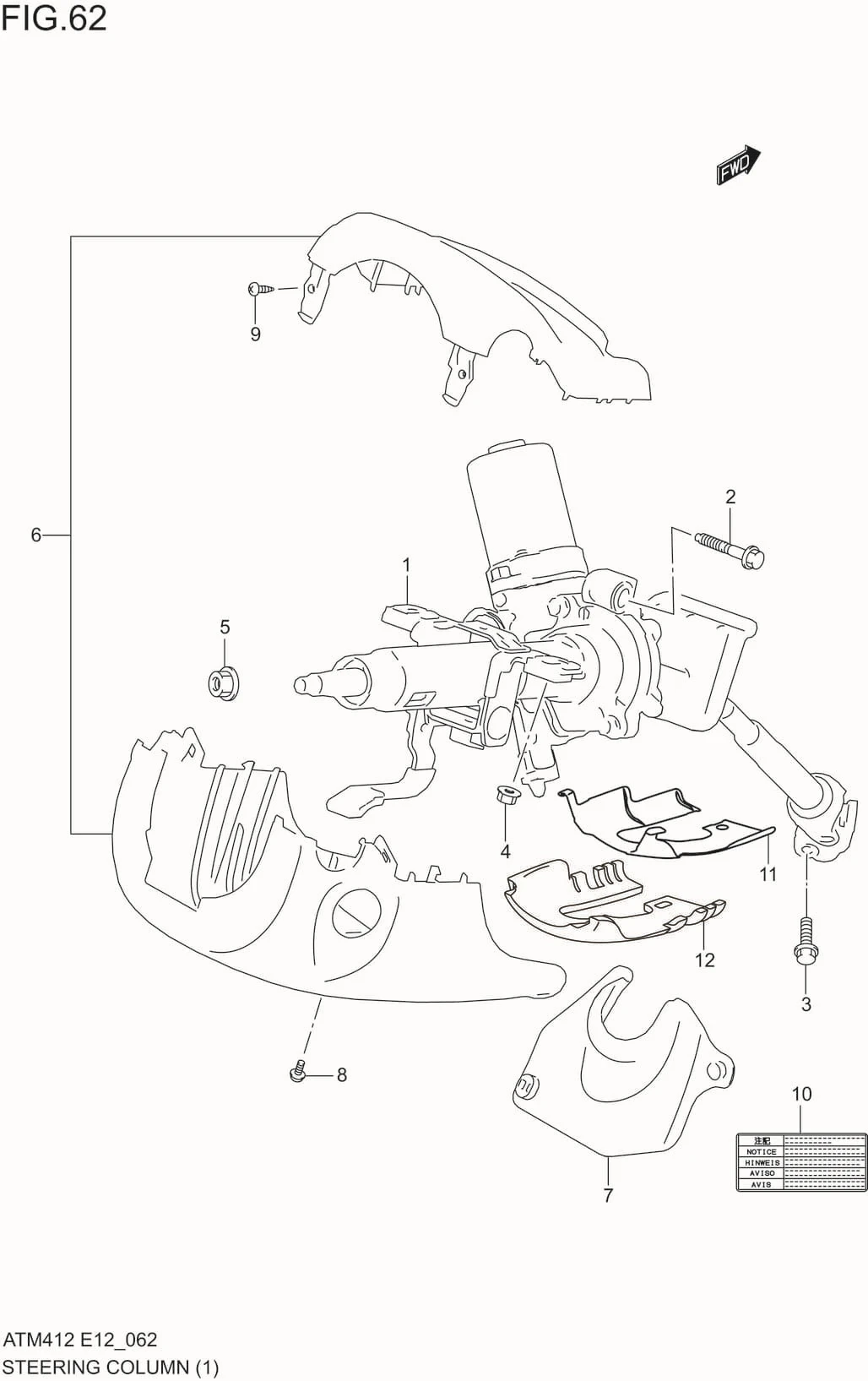

FIG.62 STEERING COLUMN(GL)

FIG.62 STEERING COLUMN(GL)
No No. Part Description Qty Price Per Pcs Remarks
1 48200M66R21-000 COLUMN ASSY, COLPS STRG 1 Rp11.003.000
2 48215-74P00-000 BOLT 1 Rp36.500
3 09117-08106-000 BOLT 1 Rp23.500
4 09159-08127-000 NUT 1 Rp11.000
5 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
6 48400M66R00-5PK COVER ASSY, STEERING COLUMN (BLACK) 1 Rp130.500
7 48481M66R00-000 COVER, STRG JOINT 1 Rp18.000
8 09136M05030-000 SCREW (5X12) 1 Rp4.500
9 03211M0512A-000 SCREW 2 Rp4.500
10 DISCONTINUE
SUB: 79172B80G01N000		 LABEL, STRG JOINT 1 -
11 48431-62R00-000 PLATE,KNEE PROTECTOR 1 Rp142.500
12 48435-62R00-000 PAD,STRG COLUMN COVER 1 Rp186.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
